Remove/install top charge air distributor - AR09.41-P-1320SVK

ENGINE 112.960 in MODEL 170.466

ENGINE 112.961 in MODELS 203.065 /265

ENGINE 113.992 in MODEL 230.474

ENGINE 113.990 in MODELS 211.076 /276

ENGINE 113.991 in MODELS 215.374, 220.074 /174

ENGINE 113.995 in MODEL 230.472

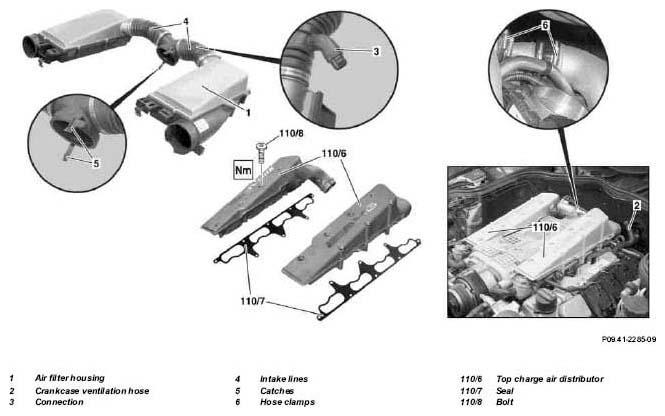

Fig 1: Identifying Top Charge Air Distributor Components

Shown on engine 113.990

	Remove/install
1	Remove top engine cover	Detach engine cover above on both sides of the air filter housing (1) and at the bracket towards the top.
2	Remove right and left engine intake air duct
3	Remove air filter housing (1).	When removing the air filter housing (1) make sure that the intake lines (4) are not twisted. If the air filter housing (1) is removed incorrectly, the steel ring in the intake line (4) can become deformed and work itself loose when the engine is running.	AR09.10-P-1150SVK
		Carefully lift air filter housing (1) and remove crankcase bleed hose (2) from fitting (3) on intake line (4).
		Installation:  Ensure that the catches (5) do not break off when fitting onto the throttle valve actuator. The catches (5) can be sucked in by the engine and cause engine damage.
		Installation:  Moisten sealing ring, throttle valve actuator and rubber retainers with liquid lubricant.
		Lubricant	*BR00.45-Z-1002-06A
4	Loosen hose clamps (6) at the top of charge air distributor (110/6)
5	Remove bolt (110/8) at top of charge air distributor (110/6)	Note the different lengths of bolts. Cover over openings with a fluffy rag.
			*BA09.41-P-1001-01C
6	Lift off top air distributor (110/6) on left and right	Installation:  Use new seals (110/7).
7	Install in the reverse order
