Intake manifold connection diagram - AR09.20-P-1310-01T

Engine 112 intake manifold connecting diagram USA ONLY

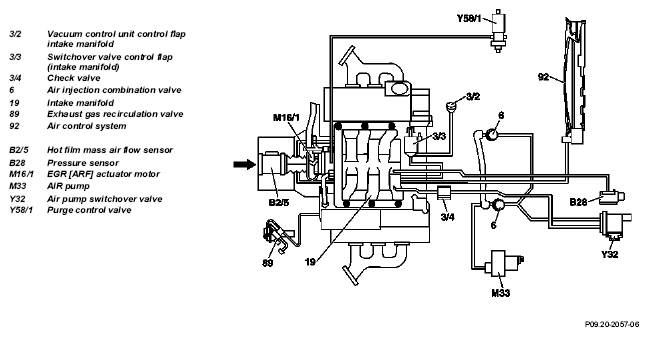

Fig 1: Intake Manifold Connection Diagram - Engine 112
G04982869
