Magnetic Clutch For The Mechanical Supercharger - Design - GF09.50-P-3103-03AM

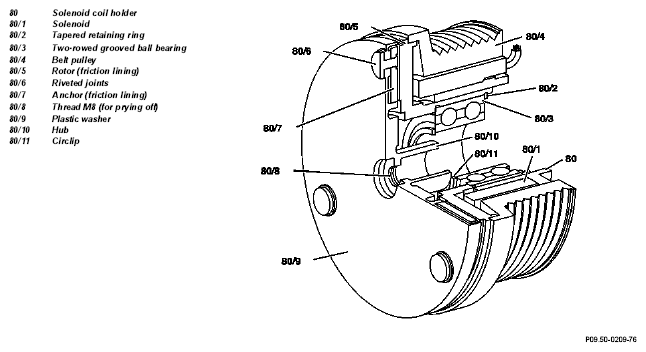

Fig 1: Identifying Magnetic Clutch For Mechanical Supercharger Components - Design
G04840056

There Is An Air Gap Between The Rotor (80/5) And The Anchor (80/7) Of Between 0.3 And 0.5 Mm Which Is Not Under Power And Which Cannot Be Adjusted.

IMPORTANT He Magnetic Clutch For The Mechanical Supercharger (Y2/1) Can Only Be Replaced As A Complete Unit With The Compressor.
