Component description for the boost pressure positioner - GF09.40-P-4020IC

ENGINE 647.961

ENGINE 648.960

ENGINE 648.961

Arrangement

The boost pressure positioner is located below on the turbocharger.

Task

The boost pressure positioner adjusts the guide vanes in the turbocharger and thus regulates the boost pressure.

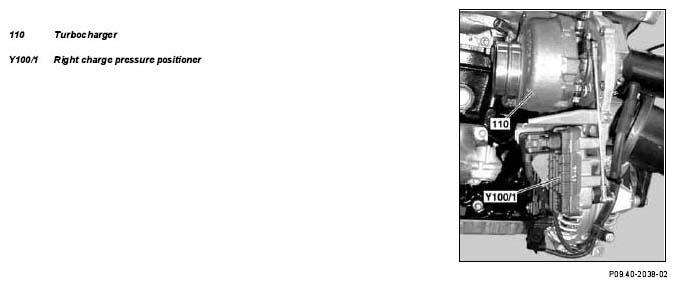

Fig 1: Identifying Turbocharger And Right Charge Pressure Positioner
G04982859

Design

The charge pressure positioner consists of an electronic circuit board integrated in the housing and an actuator motor which operates the adjusting shaft by means of a worm drive.

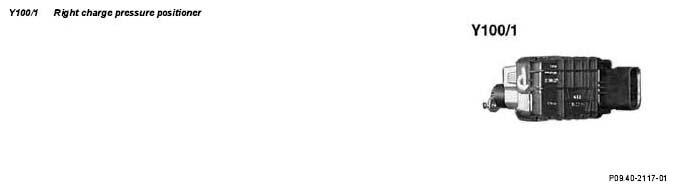

Fig 2: Identifying Right Charge Pressure Positioner
G04982860

Function

The CDI control unit (N3/9) actuates the boost pressure positioner to achieve boost pressure control.

The position of the guide vanes in the exhaust turbine is determined by the control linkage. Thus the boost pressure is adapted to the momentary load status of the engine.

The boost pressure positioner is fitted with a position feedback device for exact and flexible control of the boost pressure.
