Charge air cooling circulation pump position - GF09.41-P-3102-01T

Model 211, 219

Shown on model 211

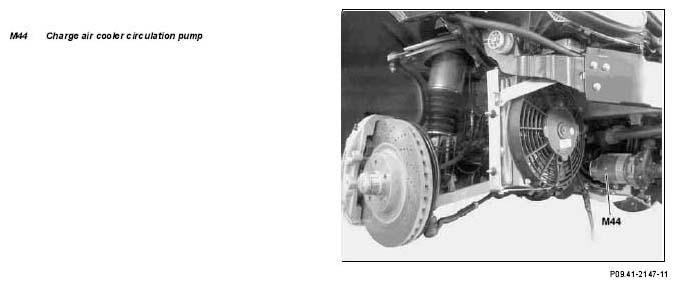

Fig 1: Identifying Charge Air Cooler Circulation Pump

G04982861
