Location of the relay for the charge air cooler recirculation pump - GF09.41-P-3106-01TA

Model 211, 219

The relay for the charge air cooler recirculation pump is located on the rear SAM control unit, at the bottom on the left in the luggage compartment.

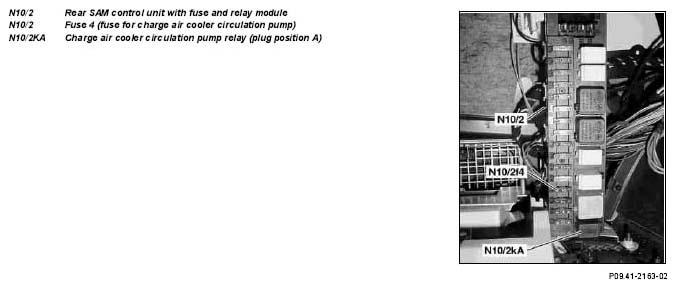

Fig 1: Identifying Relay For Charge Air Cooler Recirculation Pump Location
G04982863
