Check oil level - AR18.00-P-3035-01BD

OIL LEVEL CHECK

Number	Designation			Engine 648 in model 211
BF18.00-P-1001-03S	Oil level	Maximum	mm	134
BF18.00-P-1001-03S	Oil level	Minimum	mm	114
BF18.00-P-1002-03S	Oil dipstick indication from 107 mm to 131 mm (oil level too low)	107 mm	Replenished oil quantity in liters	2.8
		109 mm	Replenished oil quantity in liters	+2.6
		111 mm	Replenished oil quantity in liters	+2.4
		113 mm	Replenished oil quantity in liters	+2.2
		115 mm	Replenished oil quantity in liters	+2.0
		117 mm	Replenished oil quantity in liters	+1.8
		119 mm	Replenished oil quantity in liters	+1.6
		121 mm	Replenished oil quantity in liters	+1.4
		123 mm	Replenished oil quantity in liters	+1.2
		125 mm	Replenished oil quantity in liters	+1.0
		127 mm	Replenished oil quantity in liters	+0.8
		129 mm	Replenished oil quantity in liters	+0.6
		131 mm	Replenished oil quantity in liters	+0.4
BF18.00-P-1003-03S	Oil dipstick indication from 133 mm to 135 mm (oil level correct)	133 mm	Oil quantity in liters	0.0
		134 mm	Oil quantity in liters	0.0
		135 mm	Oil quantity in liters	0.0
BF18.00-P-1004-03S	Oil dipstick indication from 137 mm to 138 mm (oil level too high)	137 mm	Extracted oil quantity in liters	-0,4
BF18.00-P-1004-03S		138 mm	Extracted oil quantity in liters	-0.5

Fig 1: Identifying Dipstick (120 589 06 21 00)

Fig 2: Identifying Measuring Rod (120 589 07 21 00)

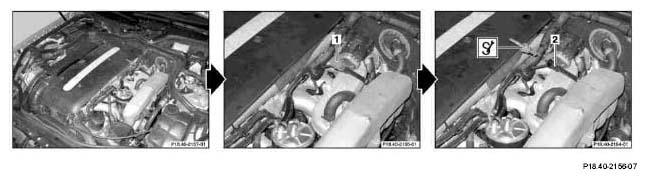

Fig 3: Identifying Detach Cap And Dipstick Guide Tube

Position vehicle with warm engine on an even surface.
Switch off engine and maintain a waiting time of approx. 5 minutes.
Detach cap (1) of dipstick guide tube (2).
Insert dipstick into the dipstick guide tube (2) all the way and leave there for at least 3 seconds.
Read off oil level at dipstick.
Establish oil replenishment amount from the oil level table.
Adjust engine oil level correctly, if required.
Place plug (1) onto oil dipstick guide tube (2).
