Remove/install fan shroud - AR20.40-P-6800TB

ENGINE 112.913 in MODEL 211.061 /261

ENGINE 112.949 in MODEL 211.065 /265

ENGINE 113.967 in MODEL 211.070 /270

ENGINE 112.917 in MODEL 211.080 /280

ENGINE 112.954 in MODEL 211.082 /282

ENGINE 113.969 in MODEL 211.083 /283

Shown on engine 112

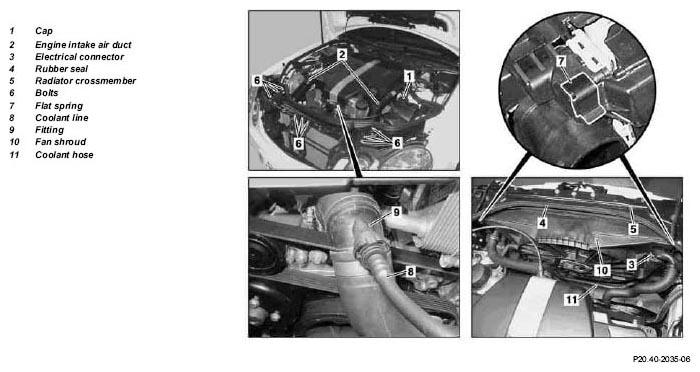

Fig 1: Identifying Fan Shroud Components - Shown On Engine 112
G04715285
REMOVINGINSTALLING Remove/install
DANGER Risk of injury  to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning  caused by swallowing coolant. Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers.
Wear protective gloves, protective clothing and safety glasses.
AS20.00-Z-0001-01A
1 Release excess pressure from the cooling system IMPORTANT Rotate cap (1) halfway through in an anti- clockwise direction, release the excess pressure and tightly screw on the cap.
NOTES Notes on coolant   AH20.00-N-2080-01A
2 Remove left and right engine intake air duct (2)
3 Disconnect electrical connector (3) for suction fan
4 Remove rubber seal (4) in the upper frame crossmember (5) region Engine 113
5 Remove screws (6) and Turn the upper frame crossmember (5) by 180° in the direction of travel Engine 113
    TORQUE SPECIFICATION *BA62.30-P-1008-02A
    TORQUE SPECIFICATION *BA62.30-P-1009-02A
6 Remove the left and the right flat spring (7)
7 Disconnect coolant line (8) at connecting element (9) IMPORTANT Close connection at connecting element using a drain plug.
    IMPORTANT Engine 113: Unclip coolant line (8) out of the bracket on fan shroud (10).
    IMPORTANTInstallation:  Install new O-ring.
    SPECIAL TOOL Figure
8 Loosen coolant hose (11) from brackets on the fan shroud (10)
9 Tilt fan shroud (10) in an upward direction against the direction of travel and remove it IMPORTANTInstallation:  Ensure that fan shroud retaining lugs are inserted in mounts at bottom of radiator.
10 Install in the reverse order
11 Check coolant level
NOTES Notes on coolant level   AH20.00-P-1142-01V
TORQUE SPECIFICATION FRONT END ASSEMBLY WITH FRONT REINFORCEMENT

Number Designation Model 211
BA62.30-P-1008-02A Bolt, center reinforcement to outer reinforcement Nm 10
BA62.30-P-1009-02A Bolt, center reinforcement to arrester hook reinforcement Nm 10
Fig 2: Identifying Set Of Stop Plugs (129 589 00 91 00)
G04715286
