Remove/install air intake tube - AR09.10-P-8131T
ENGINE 648.961 in MODELS 211.023 /026 /223 /226
  |
Remove/install |
|
|
 |
Risk of injury
caused by fingers being jammed or pinched
when removing, installing or aligning hoods, doors, trunk lid/ rear-end door or sliding roof. |
When moving components, ensure that no body parts or limbs are within operating range of moving parts. |
AS00.00-Z-0011-01A |
| 1 |
Open engine hood |
|
AR88.40-P-1000T |
| 2 |
Remove trim panels of cylinder head cover |
|
AR01.20-P-5014-02C |
| |
|
Bolt, cylinder head cover trim panel at cylinder head |
*BA01.20-P-1002-01G |
| |
|
Bolt, trim panel to charge air distribution pipe |
*BA01.20-P-1003-01G |
| 3 |

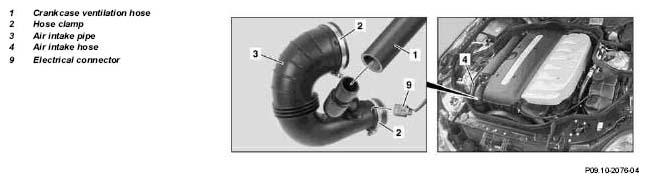

Remove air intake hose (4) |
 Installation:
the air intake hose must not be installed along with sealing ring, otherwise sealing ring will be crushed. Parts of the crushed sealing ring may then damage the turbocharger. |
|
| |
|
 Installation:
First fit sealing ring for air intake hose to turbocharger |
|
| |
|
Installation:
Check the condition of the air intake hose and the hose clamp and replace if required. |
|
|
Notes on installing the air intake hose on the turbocharger |
|
AH09.40-P-0001-02OM |
| 4 |
Disconnect electrical connector (9) from vent line heater element |
|
|
| 5 |
Remove crankcase ventilation system hose (1) from air intake pipe (3) |
|
|
| 6 |
Loosen hose clamps (2) and remove air intake pipe (3) |
6 mm socket hexagon |
*WH58.30-Z-1001-06A |
| |
|
7 mm socket hexagon |
*WH58.30-Z-1002-06A |
| 7 |
Install in the reverse order |
|
|
CRANKCASE VENTILATION, CYLINDER HEAD COVER
| Number |
Designation |
Engine 648 |
| BA01.20-P-1002-01G |
Bolt, trim panel of cylinder head cover to cylinder head |
Nm |
9 |
| BA01.20-P-1003-01G |
Bolt, cover to charge air distribution pipe. |
Nm |
9 |
COMMERCIALLY AVAILABLE TOOLS
| Number |
Designation |
| WH58.30-Z-1001-06A |
6 mm socket hexagon on flexible shaft for hose clamps with worm drive |
| WH58.30-Z-1002-06A |
7 mm socket hexagon on flexible shaft for hose clamps with worm drive |
