Position of the low temperature cooler - GF09.41-P-3103-01T

Model 211, 219

Shown on model 211

The low temperature cooler is located at the front, positioned crosswise behind the fender.

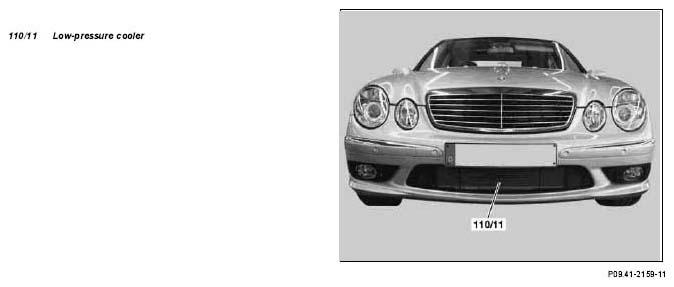

Fig 1: Identifying Low Pressure Cooler
G04982862
