Component description for the vent line heater element - GF09.00-P-4010IC

ENGINE 647.961

ENGINE 648.960

ENGINE 648.961

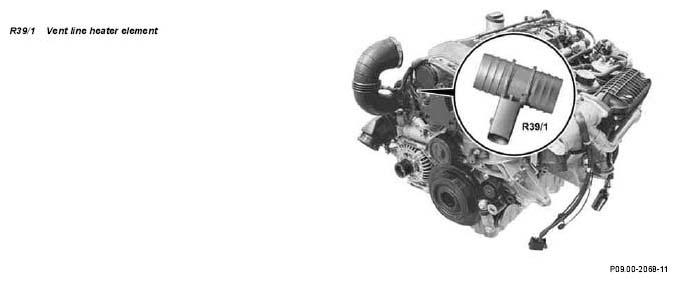

Location shown on engine 647

The heating element is located between the intake pipe and the engine ventilation hose, on the left below on the intake pipe.

Task

The vent line heater element prevents freezing of the crankcase ventilation system by condenwate and plugging up of the crankcase ventilation system by non-volatile oil residues.

Design

The heating element consists of a plastic housing with an integral heating resistor and a 2-pin plug connector.

Function

The heating element is switched on and off by the CDI control unit (N3/9) depending on the outside temperature.
