Remove/install main audio components - AR82.60-P-7605TA

MODEL 211.2/ 6

Shown on model 211.2 with code (890) Automatic rear-end door

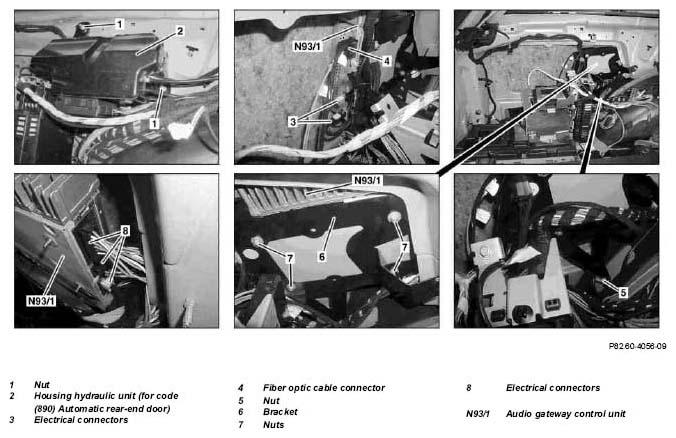

Fig 1: Identifying Main Audio Components

	Remove/Install
	Notes on avoiding damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1.1	Remove left side inner paneling of load compartment	Model 211.2	AR68.30-P-1180T
1.2	Remove existing paneling on left side of load compartment until the audio gateway control unit (N93/1) is accessible	Model 211.6 Whether paneling exists or what paneling version is used depends on the vehicle equipment.
2.1	Remove left side paneling in rear	On model 211.2 with code (890) Automatic rear-end door	AR68.30-P-4780T
3	Unscrew nuts (1)
4.1	Remove housing hydraulic unit (2) and place to one side	On model 211.2 with code (890) Automatic rear-end door
5	Disconnect electric connectors (3) from audio gateway control unit (N93/1)
6	Disconnect fiber optic cable coupling (4) from audio gateway control unit (N93/1)	Do not buckle or stretch the fiber optic cable, risk of damage.
7	Cover fiber optic cable		AR82.95-P-0005-01A
8	Unscrew nut (5)
9	Slide bracket (6) with audio gateway control unit (N93/1) backwards until the nuts (7) are accessible
10	Unscrew nuts (7)
11	Push bracket (6) to one side and slide the audio gateway control unit (N93/1) backwards until the electrical connectors (8) are accessible
12	Disconnect electric connectors (8) from audio gateway control unit (N93/1)
13	Remove audio gateway control unit (N93/1) backwards out of side panel
14	Install in the reverse order
