Retrofit antenna - AN82.62-P-0001-02TTA

Bonded surfaces must be pretreated in accordance with adhesive manufacturer's instructions.

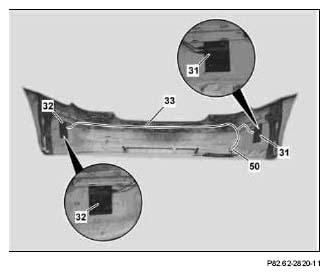

1. Fasten the bumper antenna on the left (31) with the adhesive listed in the bumper as per the picture.
2. Fasten the bumper antenna on the right (32) with the adhesive listed in the bumper as per the picture.
3. Install antenna line (33) in the cable duct of the bumper as per the picture and fix in position free from chafing and noise.
4. Attach the cable grommet (50) listed in the Parts ordering notes to the antenna line (33) as the per picture

   On vehicles with Parktronik the cable grommet (50) is already fitted to the Parktronik and the antenna line (33) must also be drawn in with the cable grommet (50).

   Shown on model 211.0

   Fig 1: Attaching Cable Grommet To Antenna Line


5. Route the antenna line through the opening (see arrow) in the luggage compartment and install cable grommet in the opening (see arrow).
6. Install bumper.

   Shown on model 211.0

   Fig 2: Locating Cable Grommet


7. Route antenna line (33) in the luggage compartment as per the picture and fix in position free from chafing and noise together with the vehicle's own wiring harnesses.

   Shown on model 211.0

   Fig 3: Identifying Antenna Line Route In Luggage Compartment


8. Route the antenna line (33) from the luggage compartment under the right rear seat and fix in position free from chafing and noise together with the vehicle's own wiring harnesses.

   Shown on model 211.0

   Fig 4: Identifying Antenna Line Route From Luggage Compartment Under Right Rear Seat


9. Route antenna line (33) as per the picture under sound deadening mat of the right-hand rear set in the cable duct of the frame floor assembly on the right and fix in position free of chafing and noise together with the vehicle's own wiring harnesses.

   Shown on model 211.0

   Fig 5: Identifying Antenna Line Route Under Sound Deadening Mat


10. Route antenna line (33) with antenna connector (34) in the cable duct on the right of frame floor assembly in the area of the front passenger footwell and fix in position free of chafing and noise together with the vehicle's own wiring harnesses.

    The antenna connector (34) will be connected later with the antenna of the telephone console connector with PSC adapter.

    Shown on model 211.0

    Fig 6: Identifying Antenna Line With Antenna Connector Route In Cable Duct
