Windshield wiper mount causes noises - AF82.30-P-1013AG

MODEL 211.016 /026 /216 /226 2A as of 378184 up to 381042

OPERATION NO. OF OPERATION TEXTS OR STANDARD TEXTS AND FLAT RATES

Category	Op. no.	Operation text	Time	Acc. no.	Code
P	024590	Fasten windshield wiper system	003 WU	-	-

Damage code	Cause	Remedy
82 012 36	Matching and manufacturing defect.	Only the correct heavy-duty foil has been installed in production since vehicle ident. number 381043.
	On vehicles with right-hand steering, the heavy duty foil (insulating foil) on the equipment dividing wall in the area of the middle wiper mount (right) is cut out incorrectly or not cut out at all.	Due to the large contact surface between the windshield wiper mount, heavy-duty foil and equipment dividing wall, we do not see any problems here regarding the screwed connection coming loose by itself in the long term.
	During installation of the heavy-duty foil, the windshield wiper mount makes contact and can, in extreme cases, separate due to settling.	In the event of complaint: ↓ 1 Retighten bolted connection on middle wiper mount (figure). 13 Nm

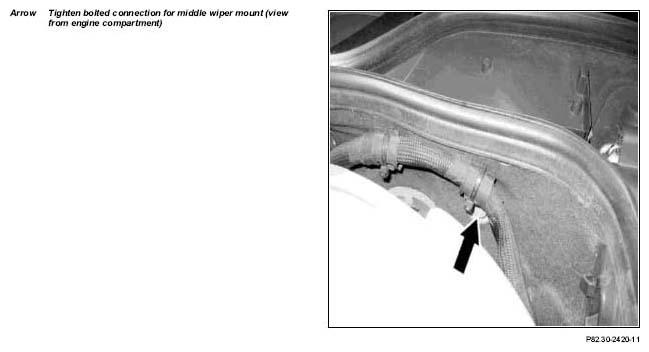

Fig 1: Identifying Windshield Wiper Mount Bolted Connection

G04987558
