Lamp unit reflector is loose - AF82.10-P-2066A

MODEL 211.### ## up to 203178 except CODE (614) BI-Xenon headlamp unit except CODE (615a) BI-Xenon headlamp unit with integrated cornering lamps

MODEL 211.### ## up to 326366 with CODE (614) BI-Xenon headlamp unit with CODE (615a) BI-Xenon headlamp unit with integrated cornering lamps

OPERATION NO. OF OPERATION TEXTS OR STANDARD TEXTS AND FLAT RATES

Category	Op. no.	Operation text	Time	Acc. no.	Code
P	024255	Install reflector in front lamp unit, location:...	006 WU	-	-
P	024256	Install reflector in right and left front lamp units	007 WU	-	-
P	024257	Install reflector in Xenon headlamp, location:...	007 WU	-	-
P	024258	Install reflector in right and left front Xenon headlamp	008 WU	-	-

Damage code	Cause	Remedy
82 103 51	Unfavorable tolerances in the joint piece of the adjustment mechanism (Fig 2) or the set screw has been turned in too far.	New cost-optimized repair method that must be used for warranty or goodwill cases.
	The reflector in the lamp unit (Fig 1) is loose. Furthermore, the reflector can no longer be adjusted with the set screw.	In case of complaint, do NOT replace the lamp unit.
		1 Remove cover from lamp unit.
		2 Pull reflector to the rear (Fig 4).
		3 Turn set screw (Fig 3) to the right. This will reinstall the reflector.
		4 Close cover on lamp unit.
		5 Adjust the low beam lamp unit.

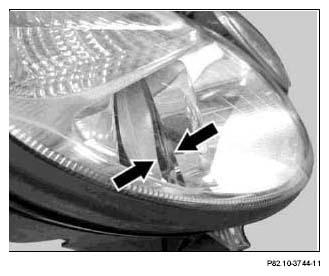

Fig 1: Identifying Lamp Unit Reflector

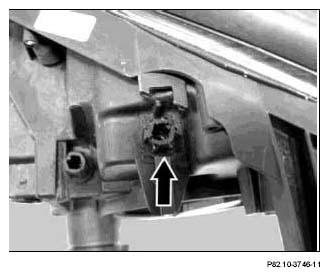

Fig 2: Identifying Lamp Adjustment Mechanism

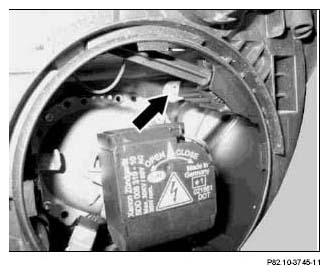

Fig 3: Identifying Lamp Turn Set Screw

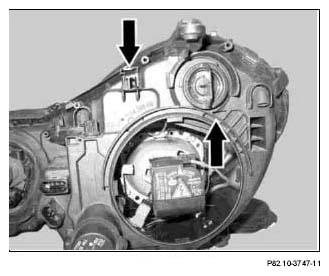

Fig 4: Identifying Lamp Unit Reflector
