Remove/install sidebag unit in the rear - AR91.60-P-0694QA

MODEL 209.4 with CODE (293) Left and right rear sidebag

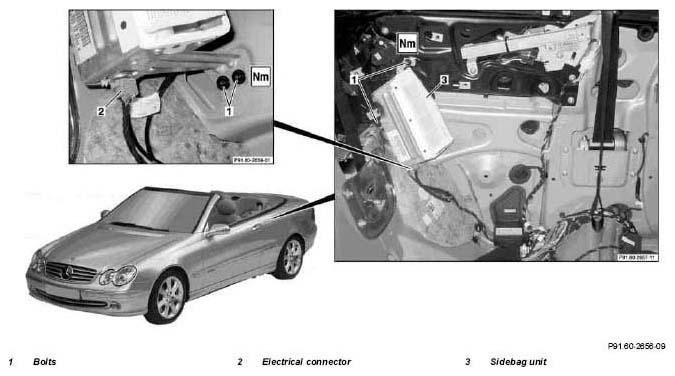

Fig 1: Identifying Sidebag Unit In Rear Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
	Risk of injury.  Injuries may result when performing testing or repair work on airbag or emergency tensioning retractor units.	Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply.	AS91.00-Z-0001-01A
	Instructions for performing repair, body work and welding on vehicles with airbags and ETR units		AH91.00-P-0002-01M
	Assessment of airbag and belt tensioner units in accident vehicles		AH91.00-P-0006-01B
	Legal regulations on handling and storing airbags and emergency tensioning retractors		AH91.00-P-0004-01A
1	Ignition Off, detach transmitter key from the electronic ignition switch control unit	On vehicles with code (889) Keyless go: Press keyless go start/stop button repeatedly until the ignition is switched off. Remove the transmitter key from the vehicle and store it in a location beyond its transmission range (min. 2 m).
2	Remove rear passenger compartment side trim panel		AR68.30-P-4780QA
3	Remove bolts (1)		*BA91.60-P-1015-01A
4	Release and disconnect electrical connector (2)
5	Remove sidebag unit (3)	If the sidebag unit (3) is replaced, the defective unit must be disposed of properly. Refer to:↓ Render airbag units unusable (not )	AR91.60-P-0611A
		Notes on disposing of airbag and emergency tensioning retractor units	OS91.00-P-0001-01A
6	Install in the reverse order
7	Connect STAR DIAGNOSIS, read out and erase fault memory
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		Diagnosis system STAR DIAGNOSIS	*WH58.30-Z-1048-13A

AIRBAG

Number	Designation		Model 209.4
BA91.60-P-1015-01A	Bolt for sidebag unit	Nm	4.5

COMMERCIALLY AVAILABLE TOOLS 260 OF 284

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS system, Compact Passenger Car	6511 1801 00
