Remove/install rear seat cushion - AR91.12-P-1020QA
MODEL 209.3
except CODE (P98) Black Series
except CODE (287) Through-loading feature
MODEL 209.4
Courtesy of MERCEDES-BENZ USA
  |
Remove/install |
|
|
| 1 |

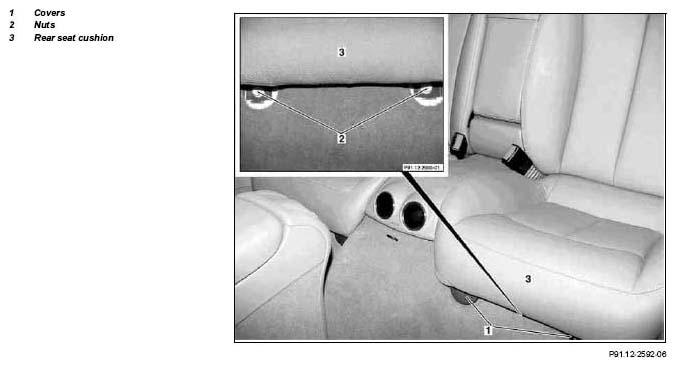

Unclip covers (1). |
Hereby press in notch from the bottom with a suitable tool. |
|
| 2 |
Unscrew nuts (2) |
|
|
| 3 |
Remove rear seat cushion (3) forward |
|
|
| 4 |
Install in the reverse order |
|
|
