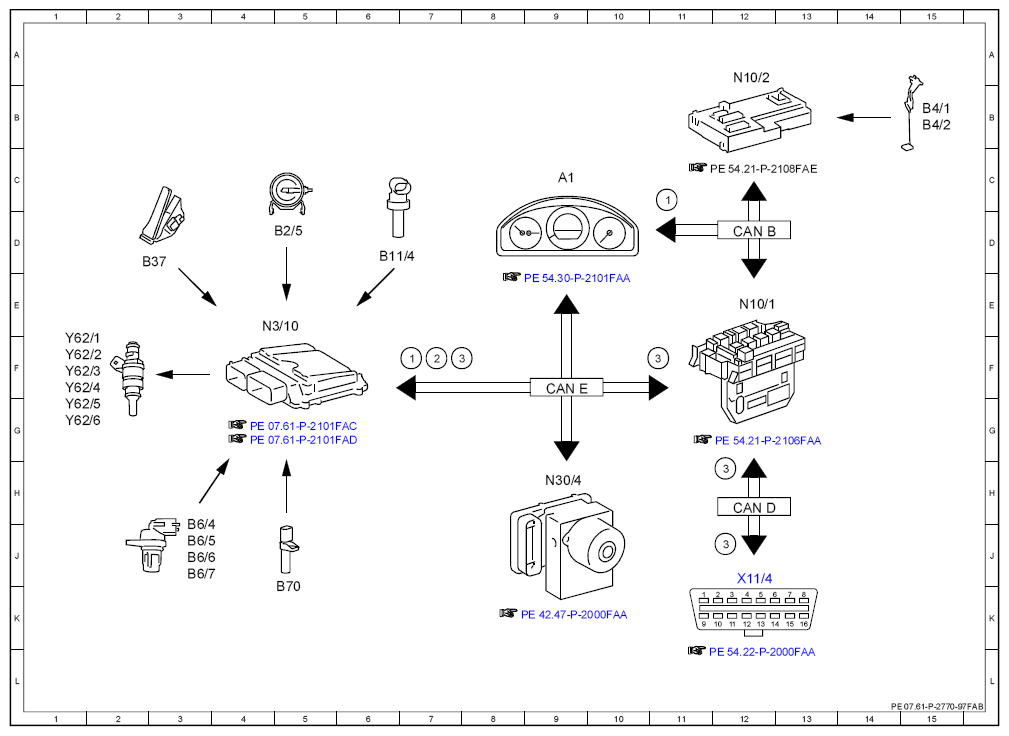

Electrical function schematic for smooth running evaluation ME - PE07.61-P-2770-97FAB
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Fuel level, signal | 7F |
| 1 | Fuel level, signal | 11C |
| 2 | Wheel speed, signal | 7F |
| 3 | Correction programming, communication | 12J |
| 3 | Correction programming, communication | 12H |
| 3 | Correction programming, communication | 11F |
| 3 | Correction programming, communication | 7F |
| A1 | Instrument cluster | 9C |
| B11/4 | Coolant temperature sensor | 6D |
| B2/5 | Hot film mass air flow sensor | 5D |
| B37 | Accelerator pedal sensor | 2D |
| B4/1 | Left fuel level indicator sensor | 15B |
| B4/2 | Right fuel level indicator sensor | 15B |
| B6/4 | Left intake camshaft Hall sensor | 3J |
| B6/5 | Right intake camshaft Hall sensor | 3J |
| B6/6 | Left exhaust camshaft Hall sensor | 3J |
| B6/7 | Right exhaust camshaft Hall sensor | 3J |
| B70 | Crankshaft Hall sensor | 5K |
| CAN B | Interior CAN | 12D |
| CAN D | Diagnostic CAN | 12H |
| CAN E | Chassis CAN | 9F |
| N10/1 | Front SAM control unit with fuse and relay module | 12E |
| N10/2 | Rear SAM control unit with fuse and relay module | 12A |
| N3/10 | ME-SFI [ME] control unit | 4E |
| N30/4 | Electronic Stability Program control unit | 9H |
| X11/4 | Diagnostic connector | 12J |
| Y62/1 | Cylinder 1 injection valve | 1F |
| Y62/2 | Cylinder 2 injection valve | 1F |
| Y62/3 | Cylinder 3 injection valve | 1F |
| Y62/4 | Cylinder 4 injection valve | 1F |
| Y62/5 | Cylinder 5 injection valve | 1G |
| Y62/6 | Cylinder 6 injection valve | 1G |
