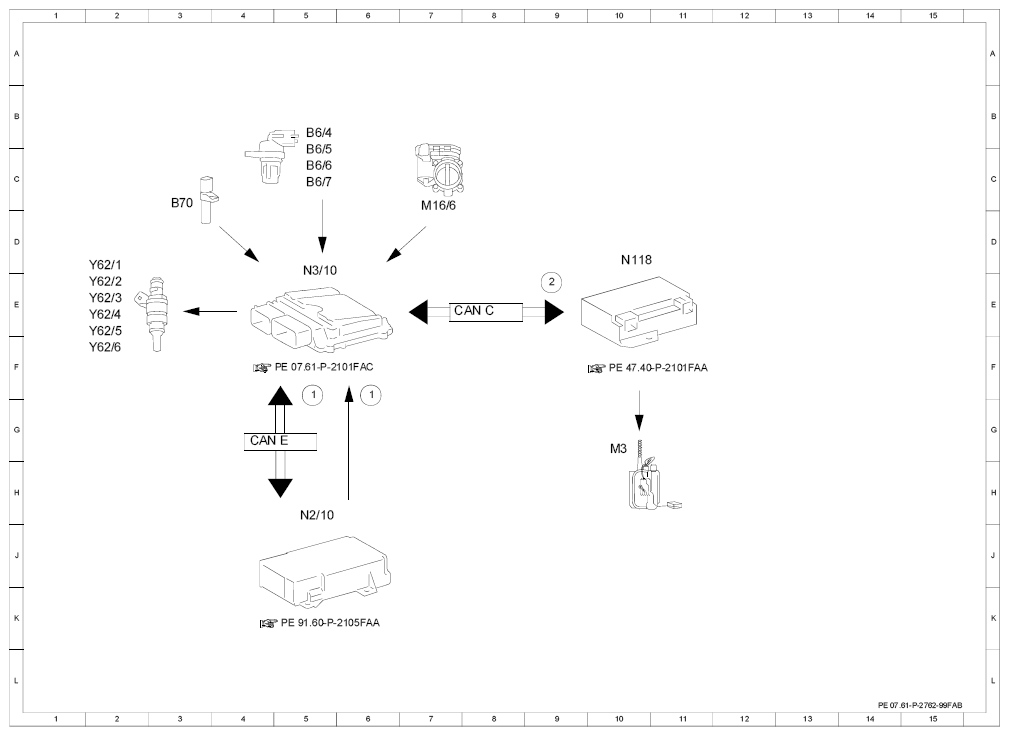

Electrical function schematic for safety fuel shutoff ME - PE07.61-P-2762-99FAB
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Crash, signal | 5G |
| 1 | Crash, signal | 6G |
| 2 | Fuel pump, request OFF | 9E |
| B6/4 | Left intake camshaft Hall sensor | 5B |
| B6/5 | Right intake camshaft Hall sensor | 5C |
| B6/6 | Left exhaust camshaft Hall sensor | 5C |
| B6/7 | Right exhaust camshaft Hall sensor | 5C |
| B70 | Crankshaft Hall sensor | 3D |
| CAN C | Drive train CAN | 7E |
| CAN E | Chassis CAN | 4G |
| M16/6 | Throttle valve actuator | 7D |
| M3 | Fuel pump (FP) | 10G |
| N118 | Fuel pump control unit | 10D |
| N2/10 | Supplemental restraint system control unit | 5J |
| N3/10 | ME-SFI [ME] control unit | 5E |
| Y62/1 | Cylinder 1 injection valve | 2E |
| Y62/2 | Cylinder 2 injection valve | 2E |
| Y62/3 | Cylinder 3 injection valve | 2E |
| Y62/4 | Cylinder 4 injection valve | 2E |
| Y62/5 | Cylinder 5 injection valve | 2F |
| Y62/6 | Cylinder 6 injection valve | 2F |
