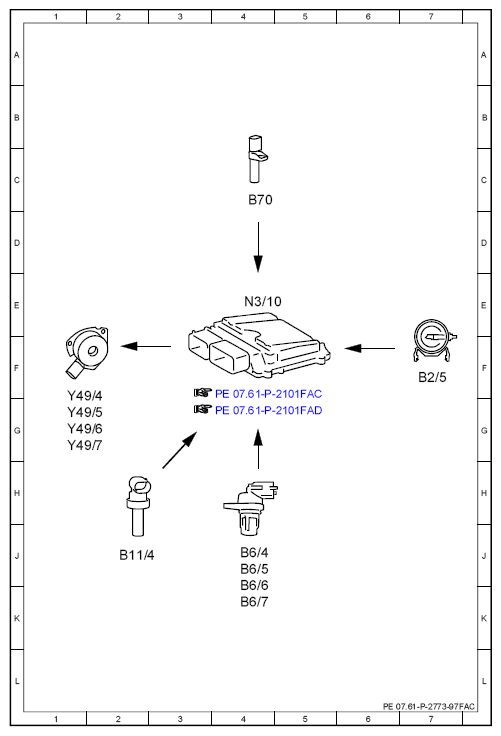

Electrical function diagram for camshaft adjustment ME - PE07.61-P-2773-97FAC
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| B11/4 | Coolant temperature sensor | 2J |
| B2/5 | Hot film mass air flow sensor | 7F |
| B6/4 | Left intake camshaft Hall sensor | 4J |
| B6/5 | Right intake camshaft Hall sensor | 4J |
| B6/6 | Left exhaust camshaft Hall sensor | 4K |
| B6/7 | Right exhaust camshaft Hall sensor | 4K |
| B70 | Crankshaft Hall sensor | 4C |
| N3/10 | ME-SFI [ME] control unit | 4E |
| Y49/4 | Left intake camshaft solenoid | 1G |
| Y49/5 | Right intake camshaft solenoid | 1G |
| Y49/6 | Left exhaust camshaft solenoid | 1G |
| Y49/7 | Right exhaust camshaft solenoid | 1G |
