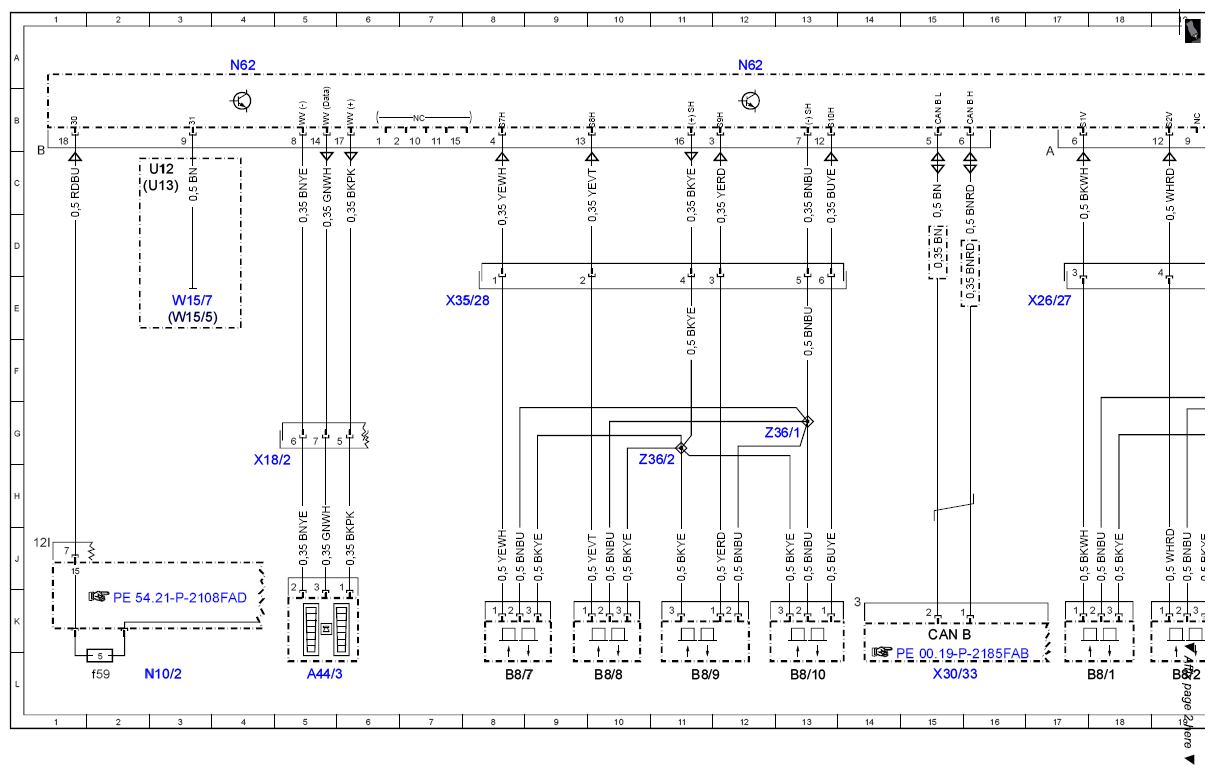

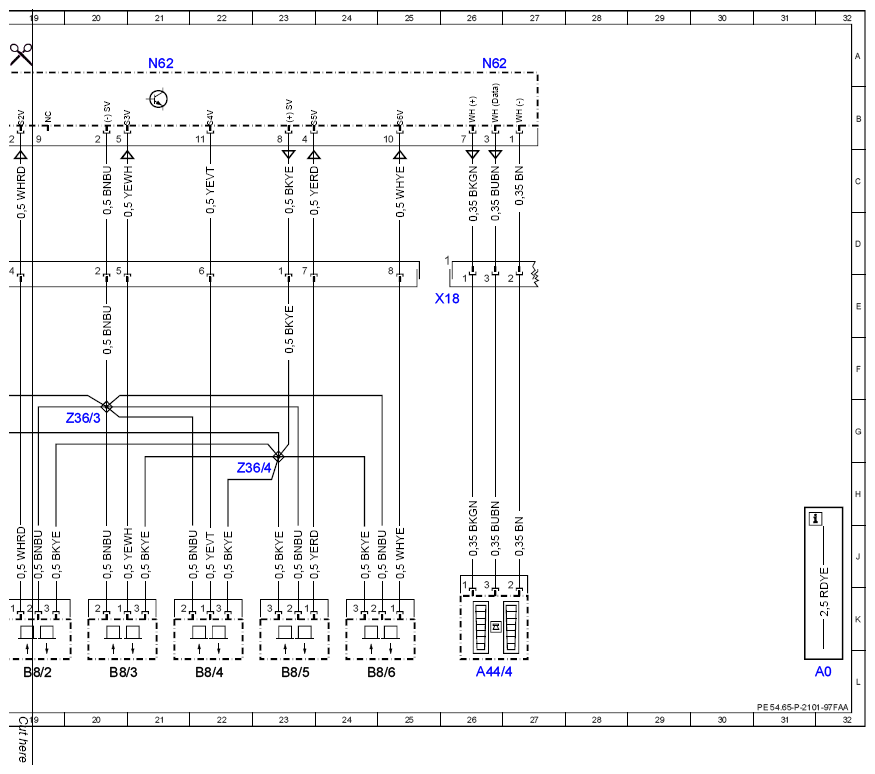

Wiring diagram for Parktronic system (PTS) control unit - PE54.65-P-2101-97FAA
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2 as of model year 2012 with CODE 230 (Advanced Parking Guidance) Control unit N62
MODEL 204.9 with CODE 220 (PARKTRONIC) Control unit N62
MODEL 204.3 with CODE 230 (Advanced Parking Guidance) Control unit N62
MODEL 204.0/2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| A44/3 | Rear parking system warning indicator | 5L |
| A44/4 | Instrument panel parking system warning indicator | 26L |
| B8/1 | Outer left front parking system distance sensor | 18L |
| B8/10 | Outer left rear parking system distance sensor | 13L |
| B8/2 | Center left front parking system distance sensor | 19L |
| B8/3 | Inner left front parking system distance sensor | 20L |
| B8/4 | Inner right front parking system distance sensor | 22L |
| B8/5 | Center right front parking system distance sensor | 23L |
| B8/6 | Outer right front parking system distance sensor | 24L |
| B8/7 | Outer right rear parking system distance sensor | 8L |
| B8/8 | Inner right rear parking system distance sensor | 10L |
| B8/9 | Inner left rear parking system distance sensor | 11L |
| CAN B | Interior CAN | 15K |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N10/2f59 | Fuse 59 | 2L |
| N62 | Parking system control unit | 4A |
| N62 | Parking system control unit | 12A |
| N62 | Parking system control unit | 21A |
| N62 | Parking system control unit | 26A |
| U12 | Valid for left-hand drive vehicles | 2C |
| U13 | Valid for right-hand drive vehicles | 2C |
| W15/5 | Left front footwell ground point | 3E |
| W15/7 | Right front footwell ground point | 3E |
| X18 | Vehicle interior and harness for taillamp electrical connector | 26E |
| X18/2 | Interior/roof electrical connector | 4H |
| X26/27 | Front bumper PARKTRONIC electrical connector | 17E |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 15L |
| X35/28 | Rear bumper PARKTRONIC electrical connector | 8E |
| Z36/1 | Rear PARKTRONIC sensors ground line connector sleeve | 13G |
| Z36/2 | Rear PARKTRONIC sensors positive line connector sleeve | 11G |
| Z36/3 | Front PARKTRONIC sensors ground line connector sleeve | 20G |
| Z36/4 | Front PARKTRONIC sensors positive line connector sleeve | 23H |
