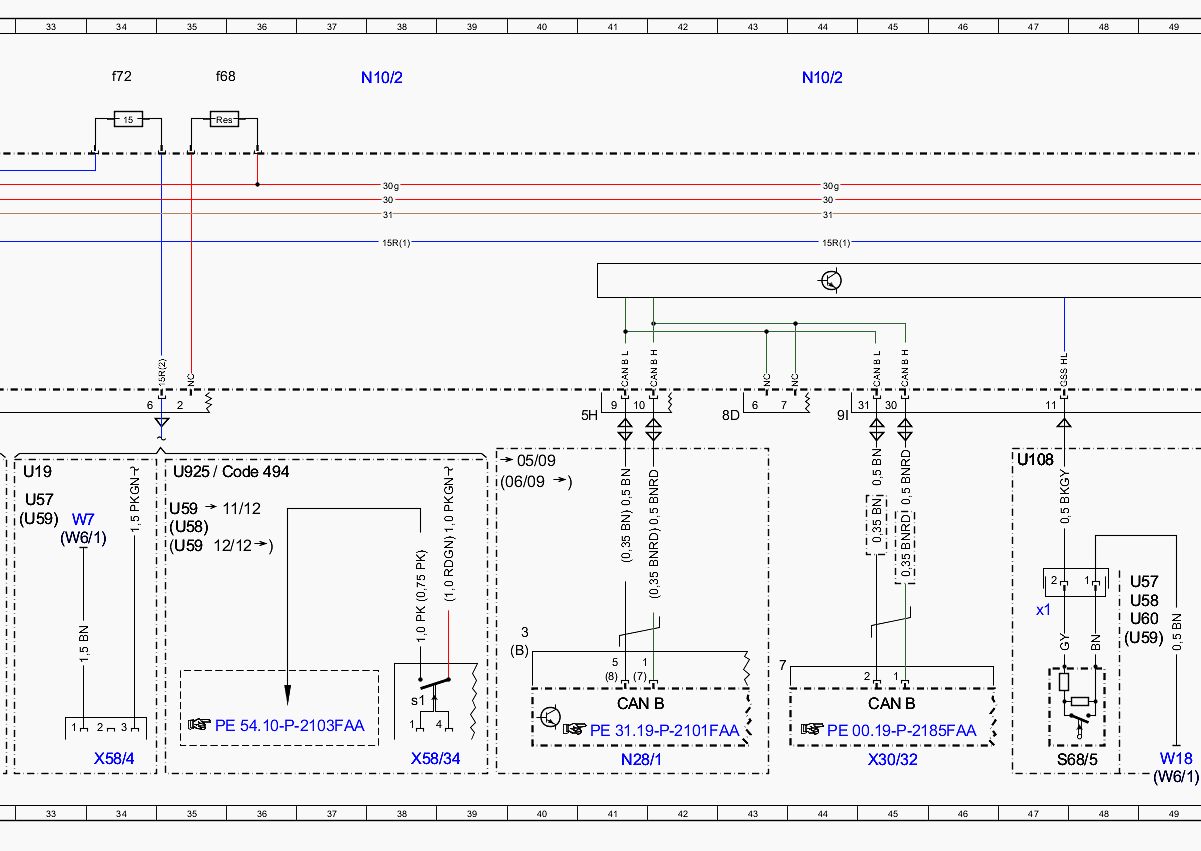

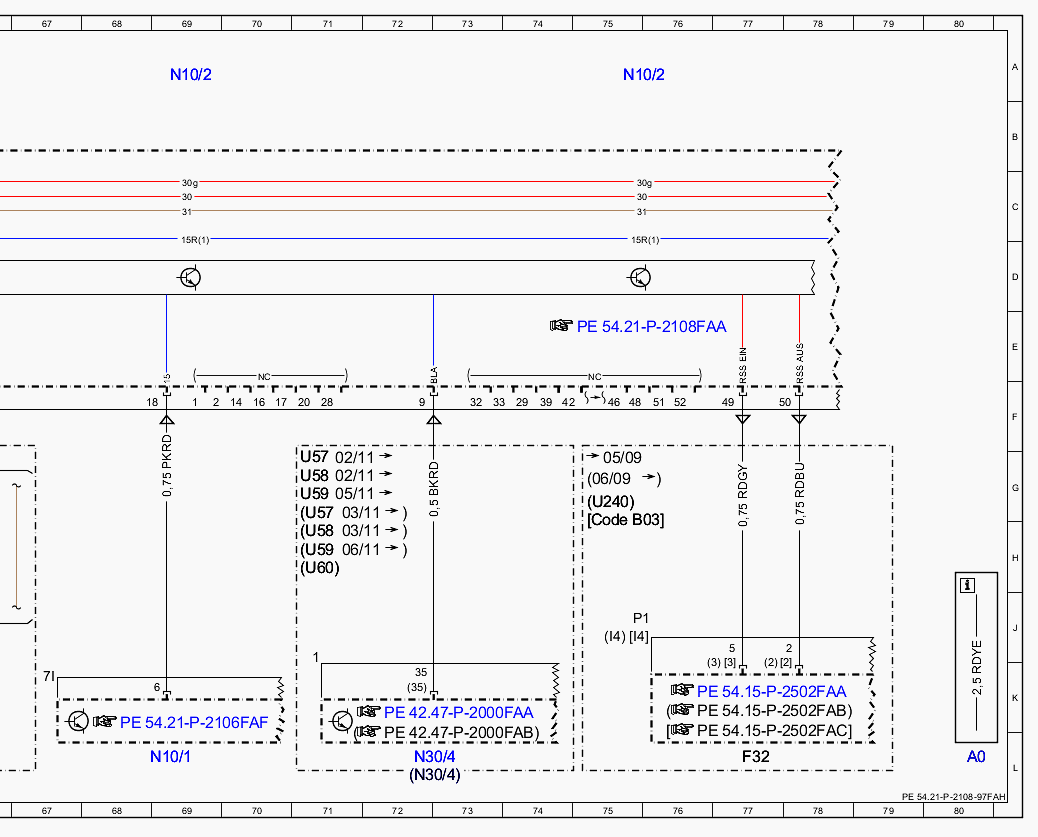

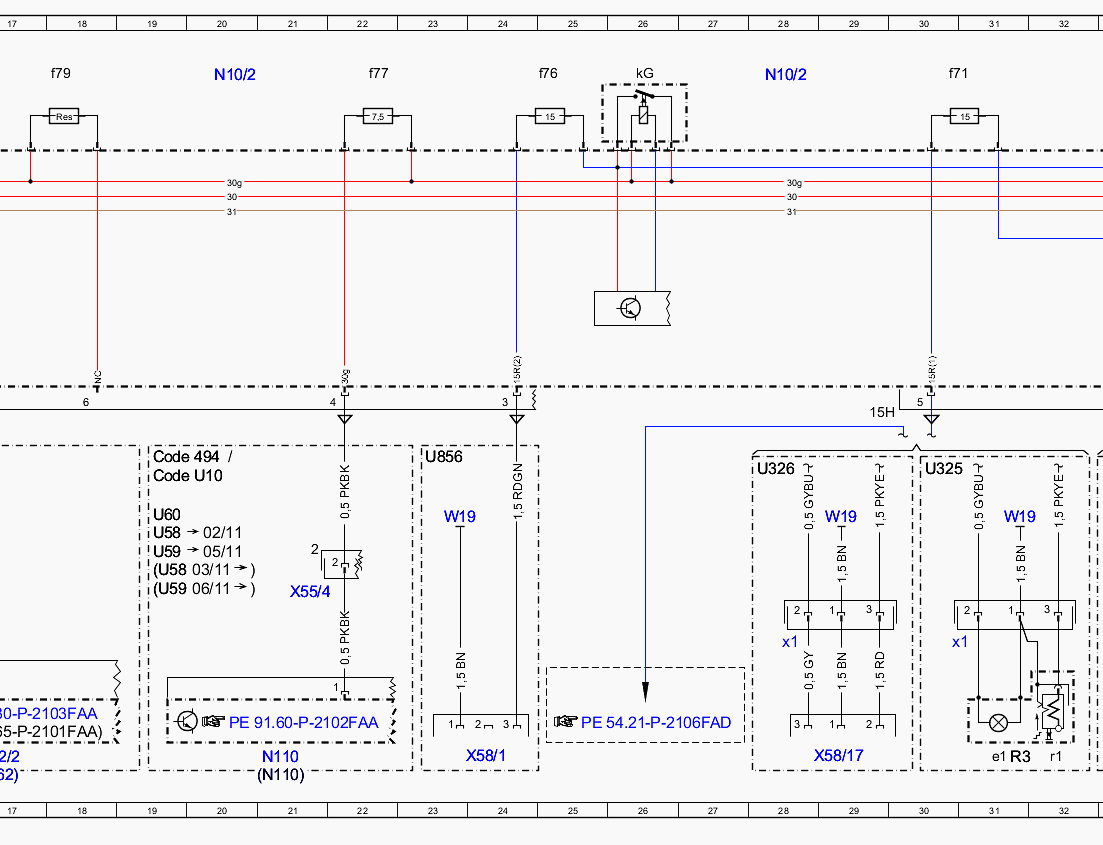

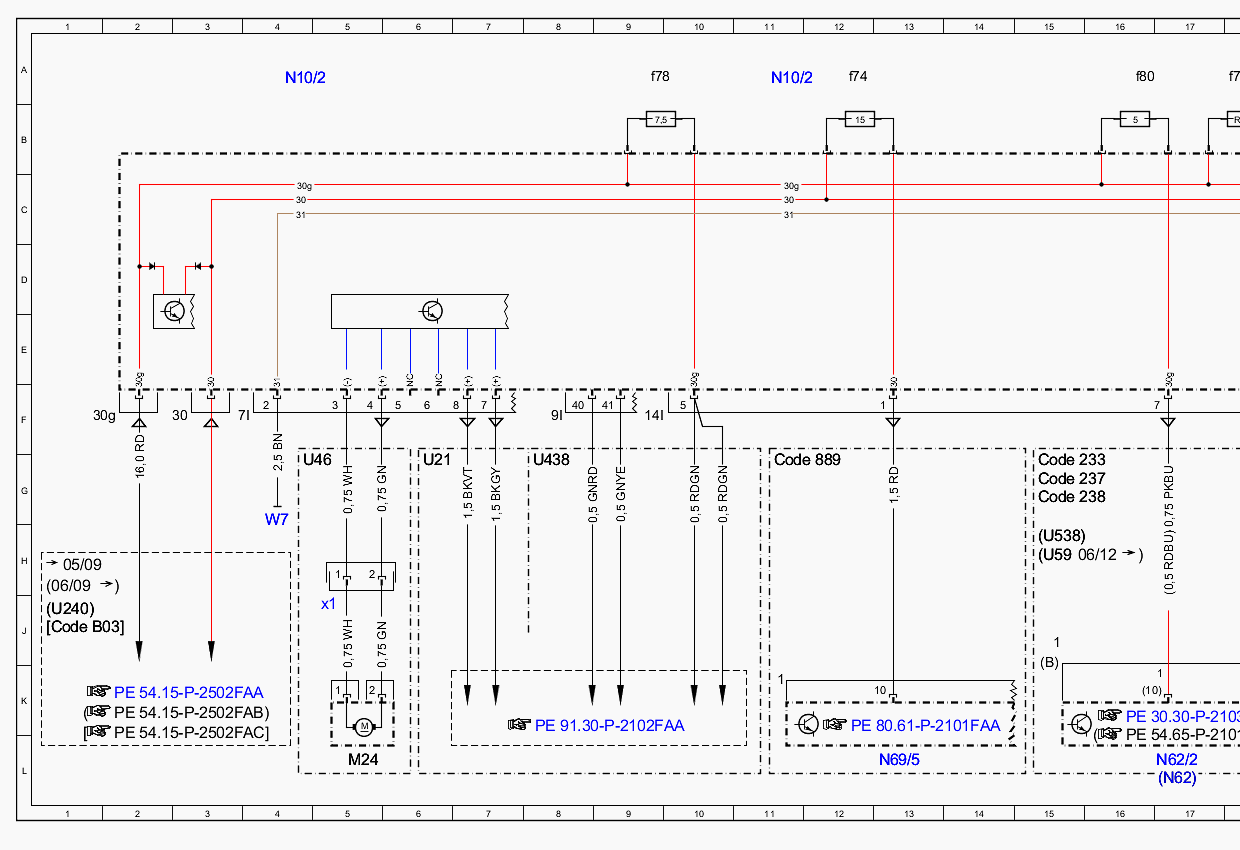

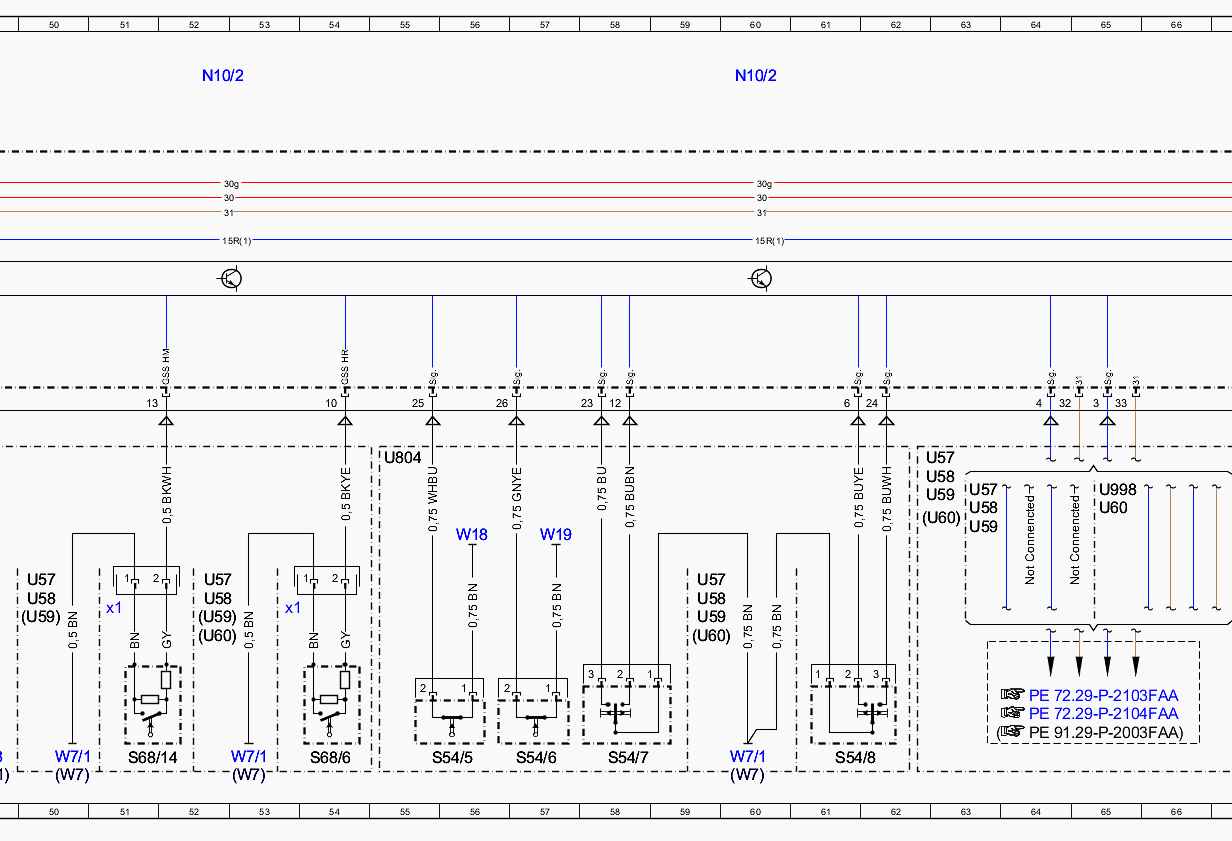

Wiring diagram / rear SAM control unit with fuse and relay module (N10/2) - PE54.21-P-2108-97FAH
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2/3/9 Sheet 8
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 80L |
| CAN B | Interior CAN | 41K |
| CAN B | Interior CAN | 45K |
| Code 233 | Distronic Plus | 15G |
| Code 237 | Active blind spot assist | 15G |
| Code 238 | Active lane keeping assist | 15G |
| Code 494 | USA version | 19G |
| Code 494 | USA version | 35G |
| Code 889 | KEYLESS-GO | 11G |
| Code B03 | ECO start/stop function | 1J |
| Code B03 | ECO start/stop function | 75H |
| Code U10 | Weight sensing system (WSS) | 19G |
| F32 | Front electrical prefuse box | 77L |
| M24 | Rear window roller sun blind motor | 5L |
| M24x1 | Rear window roller sun blind motor electrical connector | 5J |
| N10/1 | Front SAM control unit with fuse and relay module | 69L |
| N10/2 | Rear SAM control unit with fuse and relay module | 4A |
| N10/2 | Rear SAM control unit with fuse and relay module | 11A |
| N10/2 | Rear SAM control unit with fuse and relay module | 28A |
| N10/2 | Rear SAM control unit with fuse and relay module | 20A |
| N10/2 | Rear SAM control unit with fuse and relay module | 38A |
| N10/2 | Rear SAM control unit with fuse and relay module | 44A |
| N10/2 | Rear SAM control unit with fuse and relay module | 52A |
| N10/2 | Rear SAM control unit with fuse and relay module | 60A |
| N10/2 | Rear SAM control unit with fuse and relay module | 69A |
| N10/2 | Rear SAM control unit with fuse and relay module | 75A |
| N10/2f68 | Fuse 68 | 35A |
| N10/2f71 | Fuse 71 | 30A |
| N10/2f72 | Fuse 72 | 34A |
| N10/2f74 | Fuse 74 | 12A |
| N10/2f76 | Fuse 76 | 25A |
| N10/2f77 | Fuse 77 | 22A |
| N10/2f78 | Fuse 78 | 9A |
| N10/2f79 | Fuse 79 | 18A |
| N10/2f80 | Fuse 80 | 16A |
| N10/2kg | Circuit 15R relay (2) | 26A |
| N110 | Weight sensing system (WSS) control unit | 21L |
| N110 | Weight sensing system (WSS) control unit | 21L |
| N28/1 | Trailer recognition control unit | 41L |
| N30/4 | Electronic Stability Program control unit | 72L |
| N30/4 | Electronic Stability Program control unit | 72L |
| N62 | Parking system control unit | 17L |
| N62/2 | Video and radar sensor system control unit | 17L |
| N69/5 | KEYLESS-GO control unit | 13L |
| R3 | Front cigarette lighter with ashtray illumination | 31L |
| R3e1 | Ashtray illumination | 31L |
| R3r1 | Cigarette lighter heating element | 32L |
| R3x1 | Front cigarette light with ashtray illumination electrical connector | 30J |
| S54/5 | Left rear backrest inclination switch | 56L |
| S54/6 | Right rear backrest inclination switch | 57L |
| S54/7 | Left rear backrest lock switch | 58L |
| S54/8 | Right rear backrest lock switch | 61L |
| S68/14 | Center rear seat belt buckle switch | 51L |
| S68/14x1 | Center rear seat belt buckle switch electrical connector | 51J |
| S68/5 | Left rear seat belt buckle switch | 47L |
| S68/5x1 | Left rear seat belt buckle switch electrical connector | 47J |
| S68/6 | Right rear seat belt buckle switch | 54L |
| S68/6x1 | Right rear seat belt buckle switch electrical connector | 53J |
| U108 | Valid for rear seat belt buckles | 47G |
| U108 | Valid for rear seat belt buckles | 47G |
| U19 | Valid for standard equipment | 33G |
| U21 | Valid for heated seats | 6G |
| U240 | Valid for all except ECO start/stop function | 1J |
| U240 | Valid for all except ECO start/stop function | 75G |
| U325 | Valid for smoker package | 30G |
| U326 | Valid for nonsmoker package | 28G |
| U438 | Valid for seat ventiliation | 8G |
| U46 | Valid for rear window roller sun blind | 4G |
| U538 | Valid for PARKTRONIC | 15H |
| U58 | Valid for model 204.0 | 19H |
| U58 | Valid for model 204.0 | 19H |
| U58 | Valid for model 204.0 | 35H |
| U58 | Valid for model 204.0 | 52J |
| U58 | Valid for model 204.0 | 48J |
| U58 | Valid for model 204.0 | 50J |
| U58 | Valid for model 204.0 | 59J |
| U58 | Valid for model 204.0 | 63G |
| U58 | Valid for model 204.0 | 62G |
| U58 | Valid for model 204.0 | 71H |
| U58 | Valid for model 204.0 | 71G |
| U804 | Valid for rear backrest adjustment | 55G |
| U856 | Valid for rear socket | 23G |
| U925 | Valid for 115V socket | 35G |
| U998 | Valid for EASY-ENTRY | 65G |
| W18 | Left front seat crossmember ground point | 49L |
| W18 | Left front seat crossmember ground point | 56H |
| W19 | Right front seat crossmember ground point | 23H |
| W19 | Right front seat crossmember ground point | 29H |
| W19 | Right front seat crossmember ground point | 31H |
| W19 | Right front seat crossmember ground point | 57H |
| W6/1 | Left taillamp trunk ground point | 33H |
| W6/1 | Left taillamp trunk ground point | 49L |
| W7 | Right wheelhouse trunk ground point | 4H |
| W7 | Right wheelhouse trunk ground point | 33H |
| W7 | Right wheelhouse trunk ground point | 50L |
| W7 | Right wheelhouse trunk ground point | 53L |
| W7 | Right wheelhouse trunk ground point | 60L |
| W7/1 | Right taillamp trunk ground point | 50L |
| W7/1 | Right taillamp trunk ground point | 53L |
| W7/1 | Right taillamp trunk ground point | 60L |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 45L |
| X55/4 | front passenger seat connector block | 21J |
| X58/1 | Vehicle interior power outlet | 24L |
| X58/17 | Front vehicle interior power outlet | 29L |
| X58/17x1 | Electrical connector / front vehicle interior socket | 28J |
| X58/34 | 115 V socket | 39L |
| X58/34s1 | Socket microswitch | 38K |
| X58/4 | Load compartment socket | 34L |
