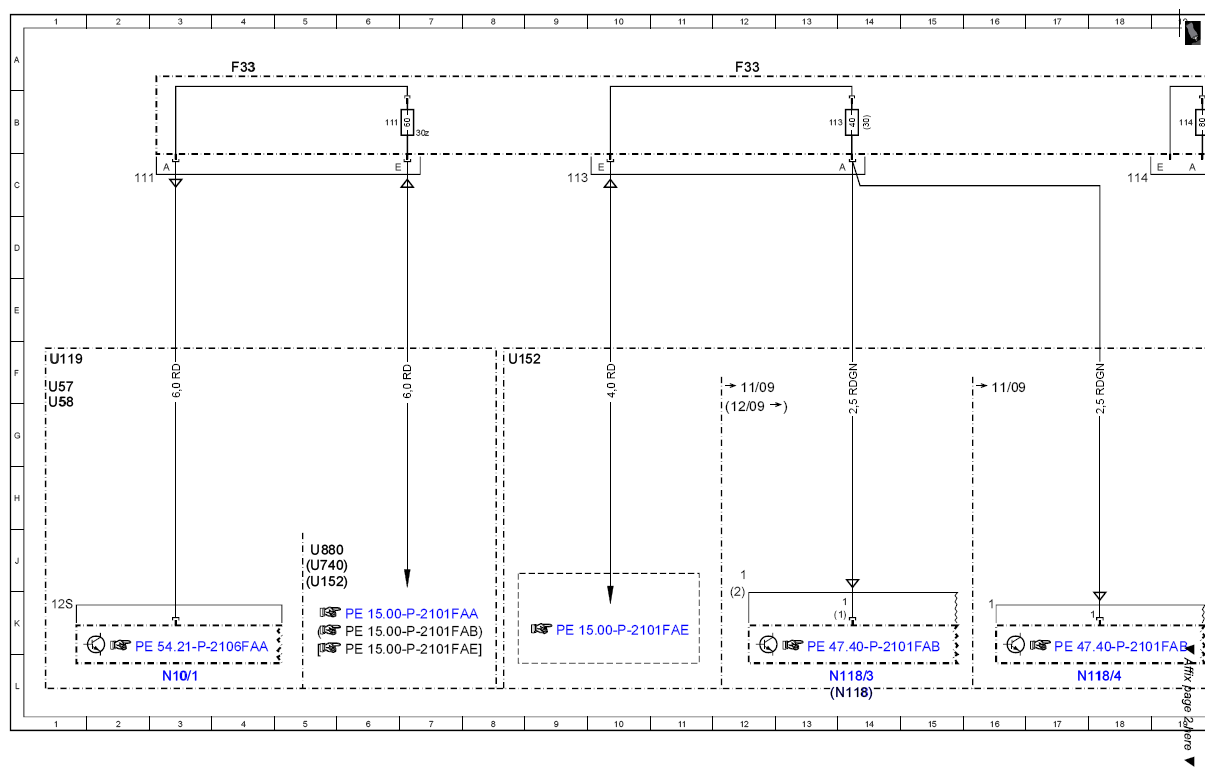

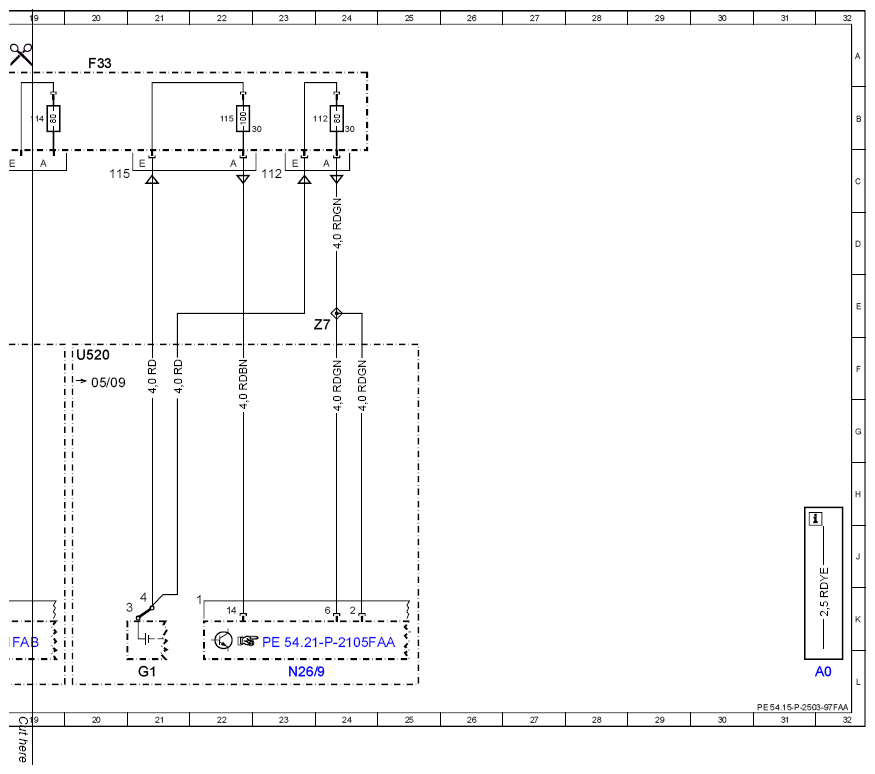

Wiring diagram for rear prefuse box (F33) - PE54.15-P-2503-97FAA
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
Model 204
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| F33 | Rear prefuse box | 4A |
| F33 | Rear prefuse box | 12A |
| F33 | Rear prefuse box | 20A |
| F33f111 | Prefuse 111 | 6B |
| F33f112 | Prefuse 112 | 24B |
| F33f113 | Prefuse 113 | 13B |
| F33f114 | Prefuse 114 | 19B |
| F33f115 | Prefuse 115 | 22B |
| G1 | On-board electrical system battery | 21L |
| N10/1 | Front SAM control unit with fuse and relay module | 3L |
| N118 | Fuel pump control unit | 14L |
| N118/3 | Left fuel pump control unit | 14L |
| N118/4 | Right fuel pump control unit | 18L |
| N26/9 | Special-purpose vehicle multifunction control unit | 23L |
| U119 | Valid for rear battery | 1F |
| U152 | Valid for gasoline engine 156 | 5J |
| U152 | Valid for gasoline engine 156 | 8F |
| U520 | Valid for taxi | 20F |
| U57 | Valid for model 204.2 | 1F |
| U58 | Valid for model 204.0 | 1G |
| U740 | Valid for diesel engine 646 | 5J |
| U880 | Valid for diesel engine 642 | 5J |
| Z7 | Tml. 30 connector sleeve | 24E |
