Connector separation point wiring diagram - PE54.18-P-2300-97FAJ

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204 X26/38, X25/4 (M156), X35/6 (M156), Sheet 10

Code: Designation: Position:
A0 Color code key 72L
B151/1 Left front bumper pedestrian protection sensor 2L
B151/3 Right front bumper pedestrian protection sensor 6L
B29/2 DISTRONIC sensor (DTR) / left front bumper 10L
B29/2 DISTRONIC sensor (DTR) / left front bumper 19L
B29/3 DISTRONIC sensor (DTR) / right front bumper 14L
B29/3 DISTRONIC sensor (DTR) / right front bumper 22L
B4/3 Fuel tank pressure sensor 41L
B4/3 Fuel tank pressure sensor 58L
Code 233 DISTRONIC PLUS 7C
Code 234 Blind spot assist 16C
Code 476 Automatic lane detection 16D
Code 494 USA version 39C
Code 494 USA version 56C
K25 Oil cooler fan motor relay 37L
K25 Oil cooler fan motor relay 50L
M4/1 Oil cooler fan motor 35L
M4/1 Oil cooler fan motor 47L
M4/1x1 Oil cooler fan motor electrical connector 46J
N10/2 Rear SAM control unit with fuse and relay module 53L
N10/2f89 Fuse 89 52L
N2/10 Supplemental restraint system control unit 4A
N3/10 ME-SFI (ME) control unit 36A
N3/10 ME-SFI (ME) control unit 40A
N3/10 ME-SFI (ME) control unit 48A
N3/10 ME-SFI (ME) control unit 57A
N30/4 Electronic Stability Program control unit 64L
N62/2 Video and radar sensor system control unit 31A
U12 Valid for left-hand drive vehicles 27A
U13 Valid for right-hand drive vehicles 27A
U152 Valid for gasoline engine 156 34A
U152 Valid for gasoline engine 156 46A
U57 Valid for model 204.2 7D
U58 Valid for model 204.0 7D
U59 Valid for model 204.9 25A
U59 Valid for model 204.9 7D
U59 Valid for model 204.9 16D
U60 Valid for model 204.3 36J
U60 Valid for model 204.3 7D
U600 Valid for power steering pump 63B
U956 Valid for pedestrian protection 1A
W15/7 Right front footwell ground point 28A
W15/7 Right front footwell ground point 26A
W15/8 Ground point (right front footwell CAN) 28A
X25/4 Fuel tank electrical connector 40G
X25/4 Fuel tank electrical connector 57G
X26 Interior and engine wiring harness electrical connector 65G
X26/38 Front bumper and frame wiring harness electrical connector 1E
X26/38 Front bumper and frame wiring harness electrical connector 17E
X35/6 Instrument panel and module box electrical connector 36E
X35/6 Instrument panel and module box electrical connector 47E
X35/6 Instrument panel and module box electrical connector 49E
Y10/1 Power steering pump quantity control valve 65L
Y58/4 Activated charcoal filter shutoff valve 39L
Y58/4 Activated charcoal filter shutoff valve 57L
Z231 Additional water pump connector sleeve 35E
Z231 Additional water pump connector sleeve 46E
Z36/16 Front CAN (low) sensor connector sleeve 15G
Z36/16 Front CAN (low) sensor connector sleeve 23G
Z36/18 Front sensor CAN (high) connector sleeve 14G
Z36/18 Front sensor CAN (high) connector sleeve 22G
Z36/26 Front DISTRONIC PLUS sensor ground connector sleeve 10G
Z36/26 Front DISTRONIC PLUS sensor ground connector sleeve 19G
Z36/27 DISTRONIC front voltage supply connector sleeve 9G
Z36/27 DISTRONIC front voltage supply connector sleeve 17G
Z36/37 Interior CAN (low) connector sleeve 30E
Z36/38 Interior CAN (high) connector sleeve 29E
Z7/36 Circuit 87 M2e connector sleeve 38C
Z7/36 Circuit 87 M2e connector sleeve 54C
Z7/36z1 Circuit 87 M2e connector sleeve 55L
Z99/14 Circuit 15 connector sleeve, DISTRONIC 15A

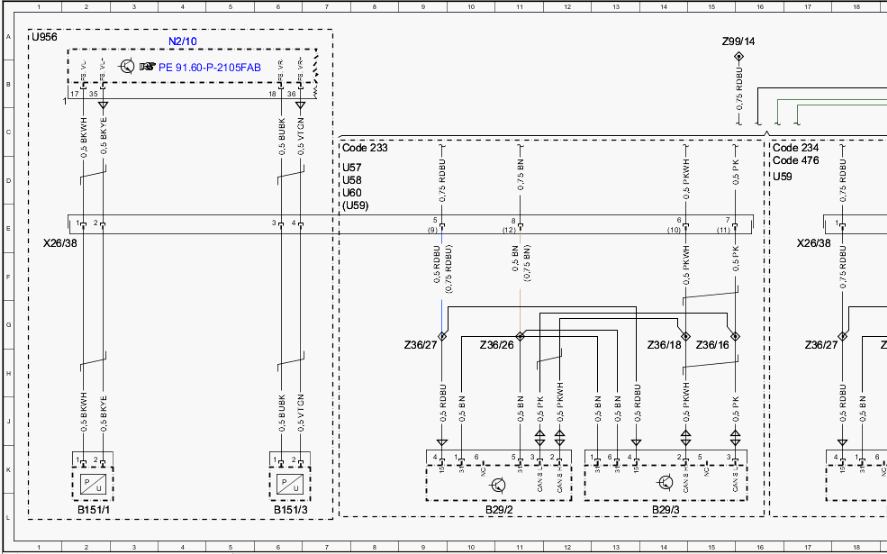

Fig 1: Connector Separation Point Wiring Diagram (1 Of 5)
G00532199Courtesy of MERCEDES-BENZ USA

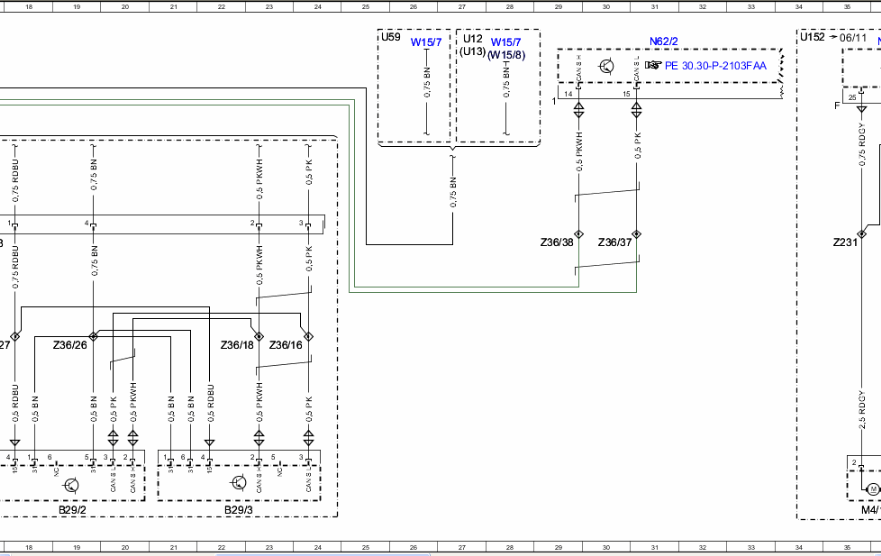

Fig 2: Connector Separation Point Wiring Diagram (2 Of 5)
G00532200Courtesy of MERCEDES-BENZ USA

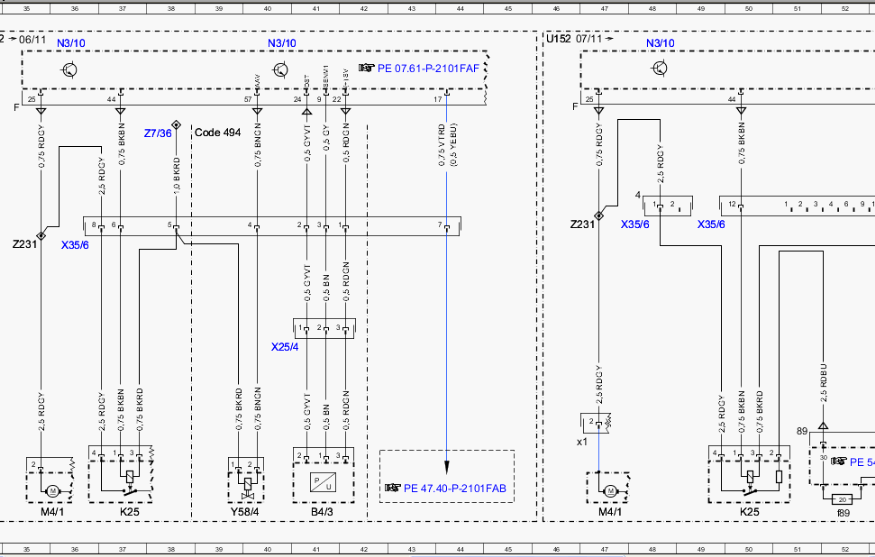

Fig 3: Connector Separation Point Wiring Diagram (3 Of 5)
G00532201Courtesy of MERCEDES-BENZ USA

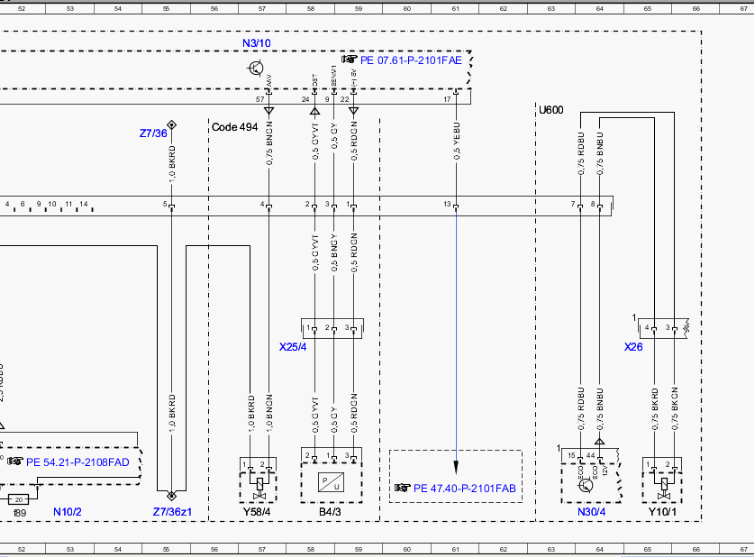

Fig 4: Connector Separation Point Wiring Diagram (4 Of 5)
G00532202Courtesy of MERCEDES-BENZ USA

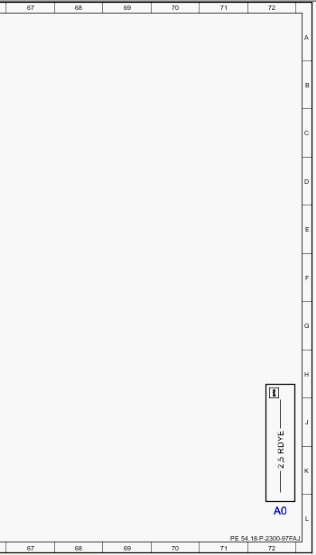

Fig 5: Connector Separation Point Wiring Diagram (5 Of 5)
G00532203Courtesy of MERCEDES-BENZ USA
