Connector separation point wiring diagram - PE54.18-P-2300-97FAH
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204 X8/37, X35/4, X35/28, Sheet 8
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 80L |
| A17/4 | Right rear KEYLESS GO door handle | 34L |
| A17/4x1 | Right rear KEYLESS GO door handle electrical connector | 33J |
| A2 | Radio | 41A |
| A2 | Radio | 37A |
| A2/41 | Right rear door KEYLESS GO antenna | 31L |
| A2/56 | Radio with auto pilot system | 37A |
| A40/3 | COMAND control unit | 50A |
| A40/3 | COMAND control unit | 46A |
| A85/4 | Right rear door lock | 5L |
| A85/4 | Right rear door lock | 29L |
| A85/4m1 | Right rear door central locking motor | 4L |
| A85/4m2 | Right rear door opening assist motor | 28L |
| A85/4s1 | Right rear door rotary tumbler switch | 6L |
| B29/4 | Left rear bumper intelligent radar sensor | 70L |
| B29/5 | Right rear bumper intelligent radar sensor | 67L |
| B29/6 | Left rear bumper radar sensor | 58L |
| B29/7 | Right rear bumper radar sensor | 62L |
| B48/10 | Right rear door pressure sensor | 26L |

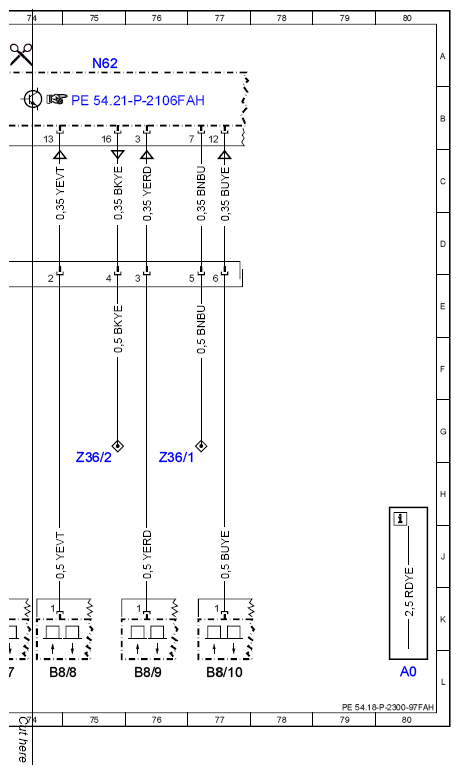

| B8/10 | Outer left rear parking system distance sensor | 77L |
| B8/7 | Outer right rear parking system distance sensor | 73L |
| B8/8 | Inner right rear parking system distance sensor | 74L |
| B8/9 | Inner left rear parking system distance sensor | 76L |
| CAN | B Interior CAN | 20B |
| CAN | G Front end CAN | 71B |
| F64/2 | Right rear door control unit fuse carrier | 18A |

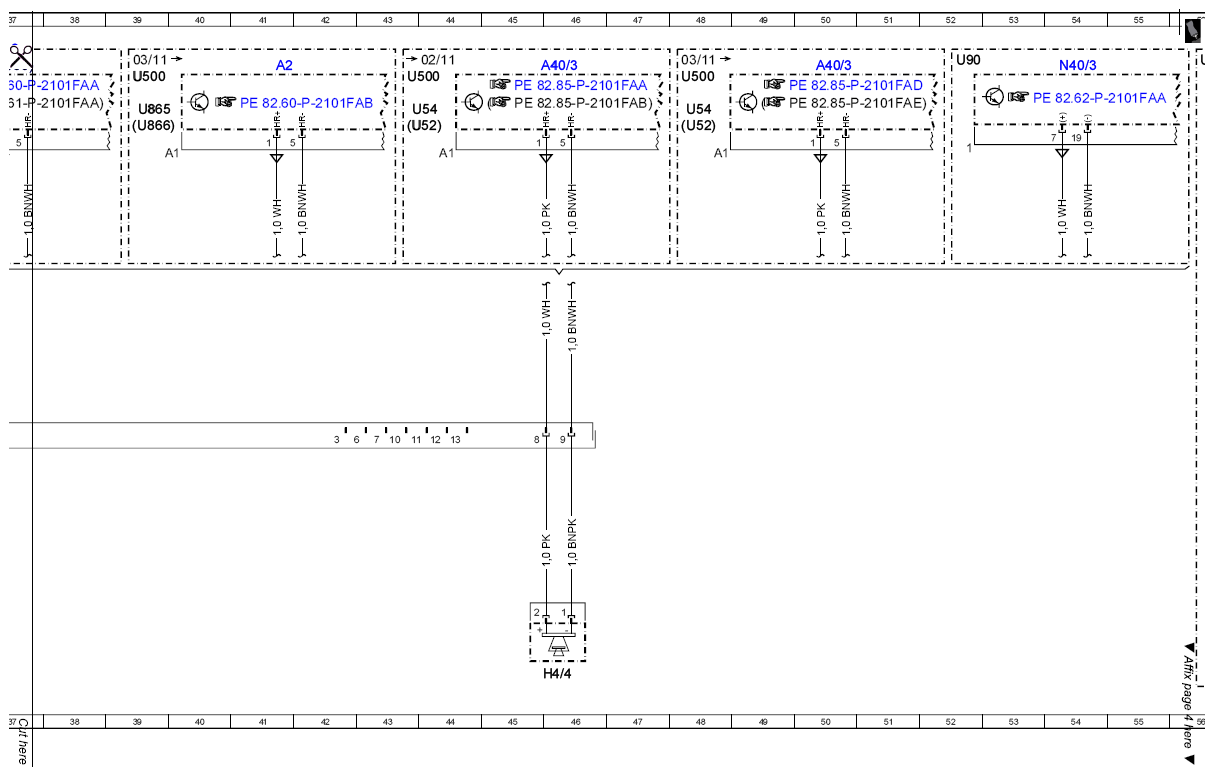

| H4/4 | Right rear door speaker | 46L |
| N10/1 | Front SAM control unit with fuse and relay module | 3A |
| N10/1 | Front SAM control unit with fuse and relay module | 14A |
| N10/1 | Front SAM control unit with fuse and relay module | 71A |
| N10/2 | Rear SAM control unit with fuse and relay module | 8A |
| N10/2 | Rear SAM control unit with fuse and relay module | 66A |
| N2/10 | Supplemental restraint system control unit | 25A |
| N40/3 | Sound system amplifier control unit | 54A |
| N62 | Parking system control unit | 75A |
| N62/2 | Video and radar sensor system control unit | 59A |
| N69/4 | Right rear door control unit | 11L |
| N69/5 | KEYLESS-GO control unit | 30A |
| U19 | Valid for standard equipment | 9A |
| U344 | Valid for all except KEYLESS GO | 2H |
| U500 | Not valid for sound system | 39A |
| U500 | Not valid for sound system | 48A |
| U500 | Not valid for sound system | 35A |
| U500 | Not valid for sound system | 43A |
| U52 | Valid for Japan | 48B |
| U52 | Valid for Japan | 43B |
| U54 | Valid for all except Japan | 48B |
| U54 | Valid for all except Japan | 43B |
| U596 | Valid for rear sidebag | 22A |
| U61 | Not valid for model 204.3 | 7H |
| U82 | Valid for KEYLESS GO | 2H |
| U82 | Valid for KEYLESS GO | 27A |
| U865 | Valid for Audio 20 | 39B |
| U865 | Valid for Audio 20 | 35B |
| U866 | Valid for Audio 50 | 39B |
| U866 | Valid for Audio 50 | 35B |
| U90 | Valid for sound system | 52A |
| U910 | Valid for Blind Spot Assist | 65A |
| U921 | Not valid for England | 9A |
| U928 | Valid for England | 2H |
| U928 | Valid for England | 16A |
| U959 | Valid for video and radar sensor system control unit | 56A |
| W19 | Right front seat crossmember ground point | 7E |
| W7 | Right wheelhouse trunk ground point | 63C |
| W7 | Right wheelhouse trunk ground point | 68C |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 20A |

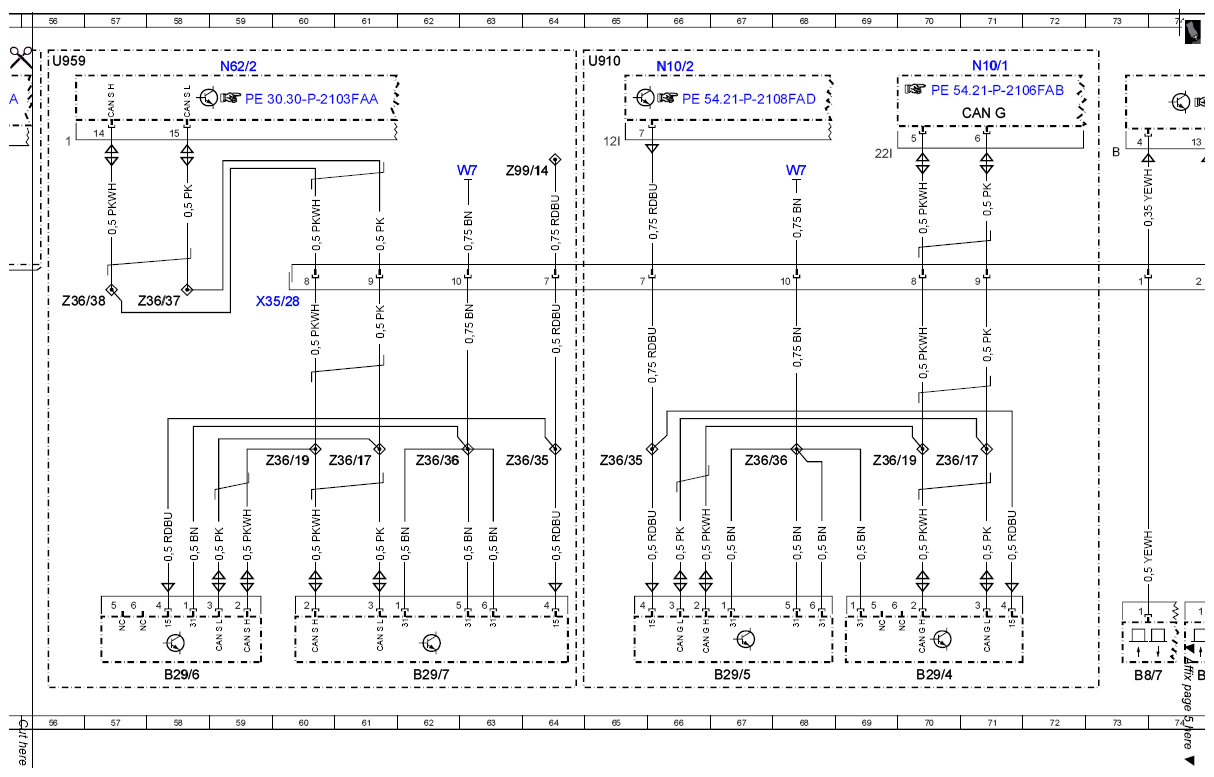

| X35/28 | Rear bumper PARKTRONIC electrical connector | 60E |

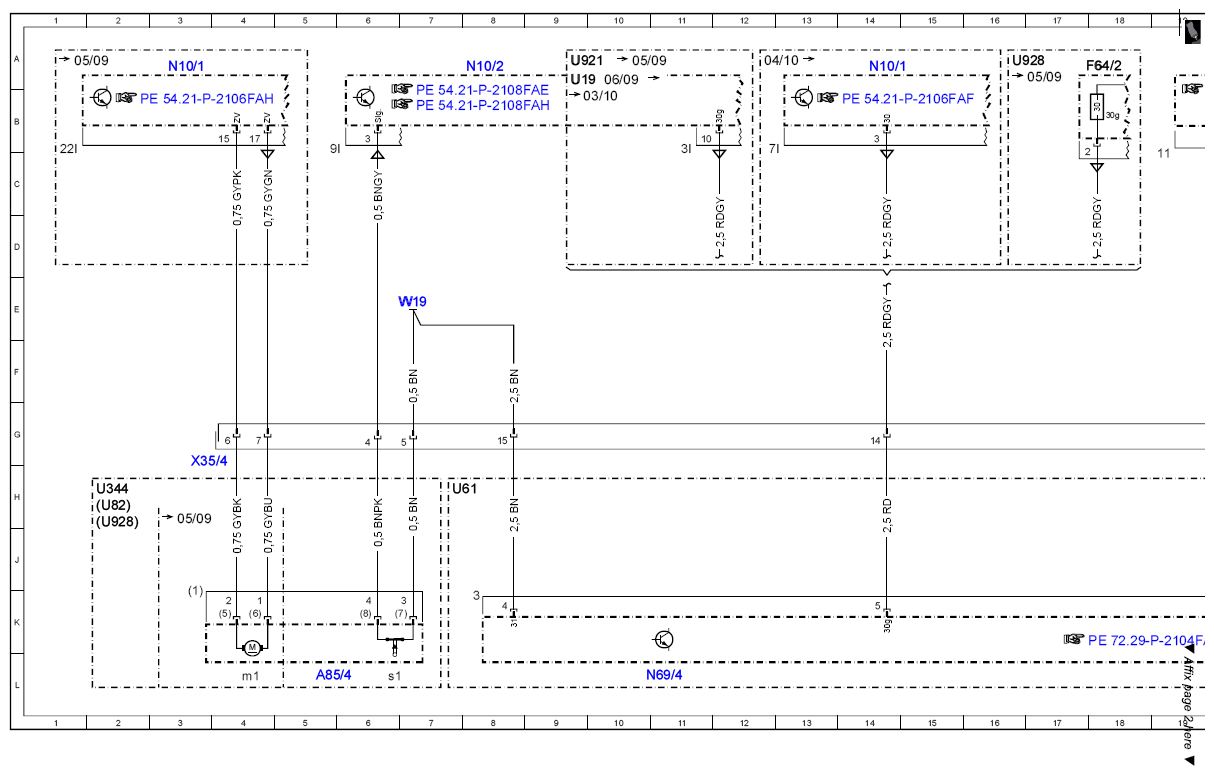

| X35/4 | Right rear door electrical connector | 3H |

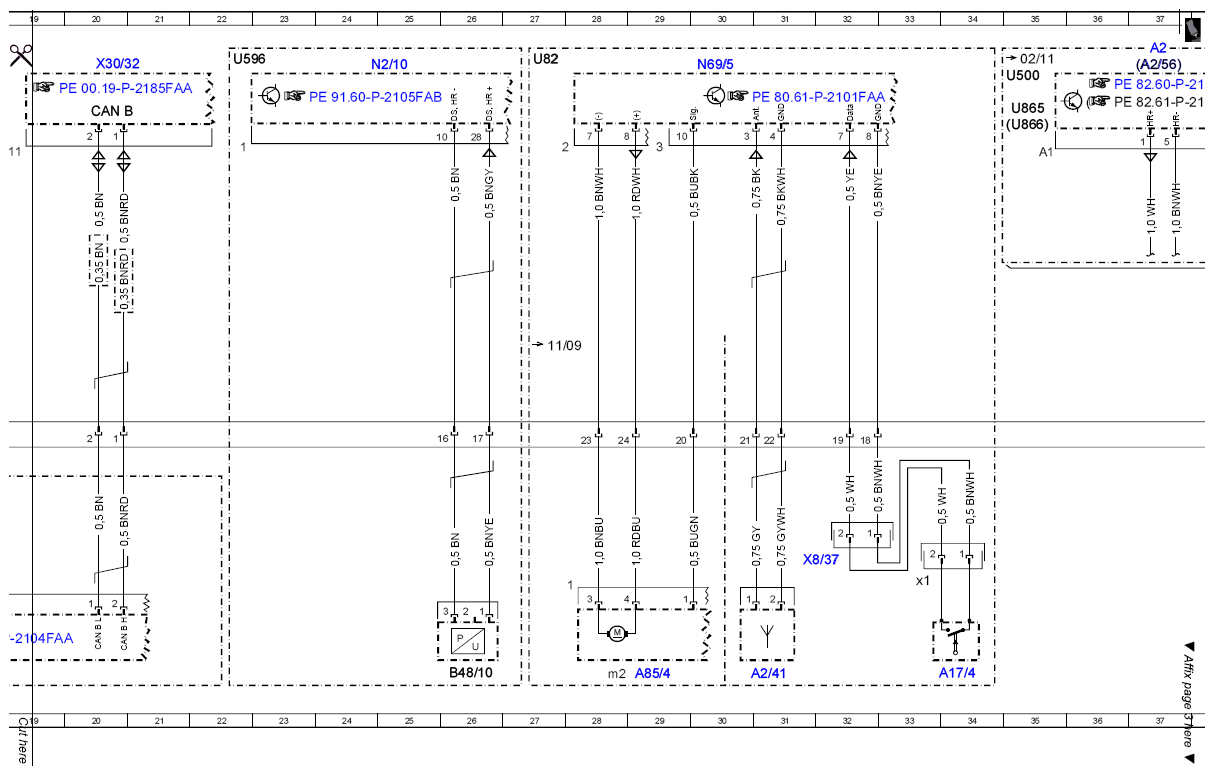

| X8/37 | Right rear KEYLESS GO door handle electrical connector | 32J |
| Z36/1 | Rear PARKTRONIC sensors ground line connector sleeve | 76G |
| Z36/17 | Rear sensor CAN connector sleeve | 70G |
| Z36/17 | Rear sensor CAN connector sleeve | 61G |
| Z36/19 | Rear sensor CAN connector sleeve | 69G |
| Z36/19 | Rear sensor CAN connector sleeve | 60G |
| Z36/2 | Rear PARKTRONIC sensors positive line connector sleeve | 75G |
| Z36/35 | Rear radar sensors sensor power supply connector sleeve | 65G |
| Z36/35 | Rear radar sensors sensor power supply connector sleeve | 64G |
| Z36/36 | Rear radar sensors sensor ground connector sleeve | 67G |
| Z36/36 | Rear radar sensors sensor ground connector sleeve | 62G |
| Z36/37 | Interior CAN (low) connector sleeve | 58E |
| Z36/38 | Interior CAN (high) connector sleeve | 56E |
| Z99/14 | Circuit 15 connector sleeve, DISTRONIC | 64C |
