Connector separation point wiring diagram - PE54.18-P-2300-97FAG

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204 X26 (M642), X35/6 (M642), Sheet 7

Code: Designation: Position:
A0 Color code key 48A
A9 Refrigerant compressor 12A
A9 Refrigerant compressor 33A
B19/9 Temperature sensor upstream of diesel particulate filter 24L
B19/9x1 Electrical connector for temperature sensor upstream of diesel particulate filter 24K
B28/8 Differential pressure sensor (DPF) 21L
B28/8 Differential pressure sensor (DPF) 23L
B4/7 Fuel pressure sensor 38A
B76/1 Condensation sensor for fuel filter with heating element 15A
B76/1 Condensation sensor for fuel filter with heating element 36A
Code 494 USA version 29H
M1 Starter 11A
M1 Starter 32A
N10/1 Front SAM control unit with fuse and relay module 11L
N10/1 Front SAM control unit with fuse and relay module 28L
N10/1 Front SAM control unit with fuse and relay module 38L
N118 Fuel pump control unit 44L
N3/9 CDI control unit 21A
N30/4 Electronic Stability Program control unit 3L
N30/4 Electronic Stability Program control unit 47L
U12 Valid for left-hand drive vehicles 5H
U12 Valid for left-hand drive vehicles 25H
U13 Valid for right-hand drive vehicles 5H
U13 Valid for right-hand drive vehicles 25H
U516 Valid for emissions standard EURO 4 1A
U518 Valid for emissions standard EURO 5 25A
U57 Valid for model 204.2 20C
U58 Valid for model 204.0 20D
U59 Valid for model 204.9 22C
U600 Valid for power steering pump 1H
U600 Valid for power steering pump 4A
U600 Valid for power steering pump 46H
U600 Valid for power steering pump 39A
U694 Valid for condensation sensor for fuel filter with heating element 14A
U694 Valid for condensation sensor for fuel filter with heating element 35A
U880 Valid for diesel engine 642 1A
U936 Valid for increased engine power 29D
U937 Valid for all except increased engine power 29D
W16/5 Left major assembly compartment electronics ground point 6L
W16/5 Left major assembly compartment electronics ground point 26L
W16/6 Right major assembly compartment ground point 6L
W16/6 Right major assembly compartment ground point 26L
X25/12 Differential pressure sensor adapter electrical connector 20G
X26 Interior and engine wiring harness electrical connector 4G
X26 Interior and engine wiring harness electrical connector 23E
X26 Interior and engine wiring harness electrical connector 26G
X35/6 Instrument panel and module box electrical connector 2G
X35/6 Instrument panel and module box electrical connector 18H
X35/6 Instrument panel and module box electrical connector 20E
X35/6 Instrument panel and module box electrical connector 42G
X35/6 Instrument panel and module box electrical connector 43G
Y10/1 Power steering pump quantity control valve 4A
Y10/1 Power steering pump quantity control valve 40A
Z3 Tml. 15 connector sleeve 14E
Z6 Circuit 31 connector sleeve 6E
Z6 Circuit 31 connector sleeve 26E
Z7/5z1 Circuit 87 connector sleeve 10E
Z7/5z1 Circuit 87 connector sleeve 29E
Z7/5z1 Circuit 87 connector sleeve 31E
Z7/5z2 Circuit 87 connector sleeve 8E
Z7/5z2 Circuit 87 connector sleeve 31E
Z7/5z2 Circuit 87 connector sleeve 29E
Z7/5z3 Circuit 87 connector sleeve 7E
Z7/5z3 Circuit 87 connector sleeve 27E

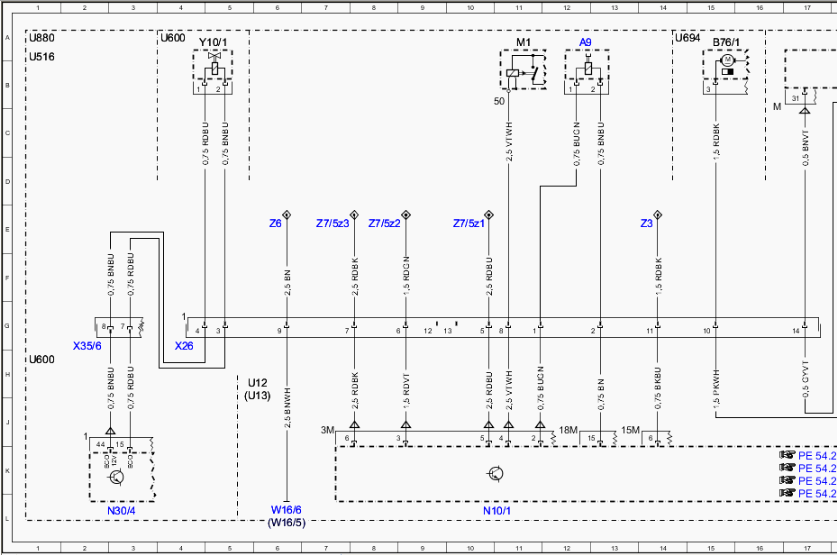

Fig 1: Connector Separation Point Wiring Diagram (1 Of 3)
G00532191Courtesy of MERCEDES-BENZ USA

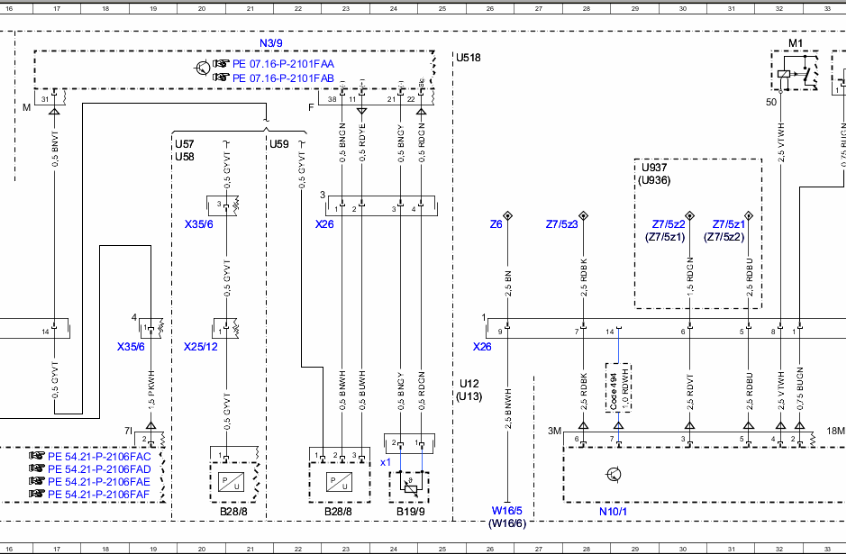

Fig 2: Connector Separation Point Wiring Diagram (2 Of 3)
G00532192Courtesy of MERCEDES-BENZ USA

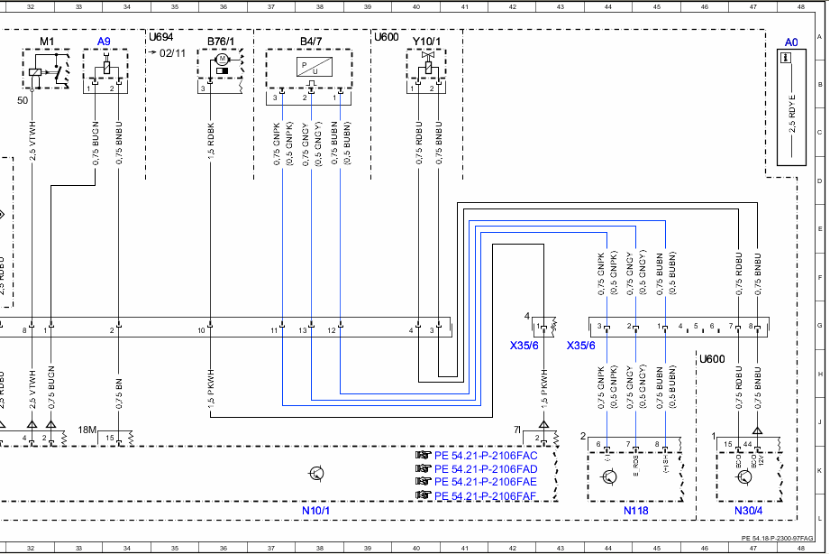

Fig 3: Connector Separation Point Wiring Diagram (3 Of 3)
G00532193Courtesy of MERCEDES-BENZ USA
