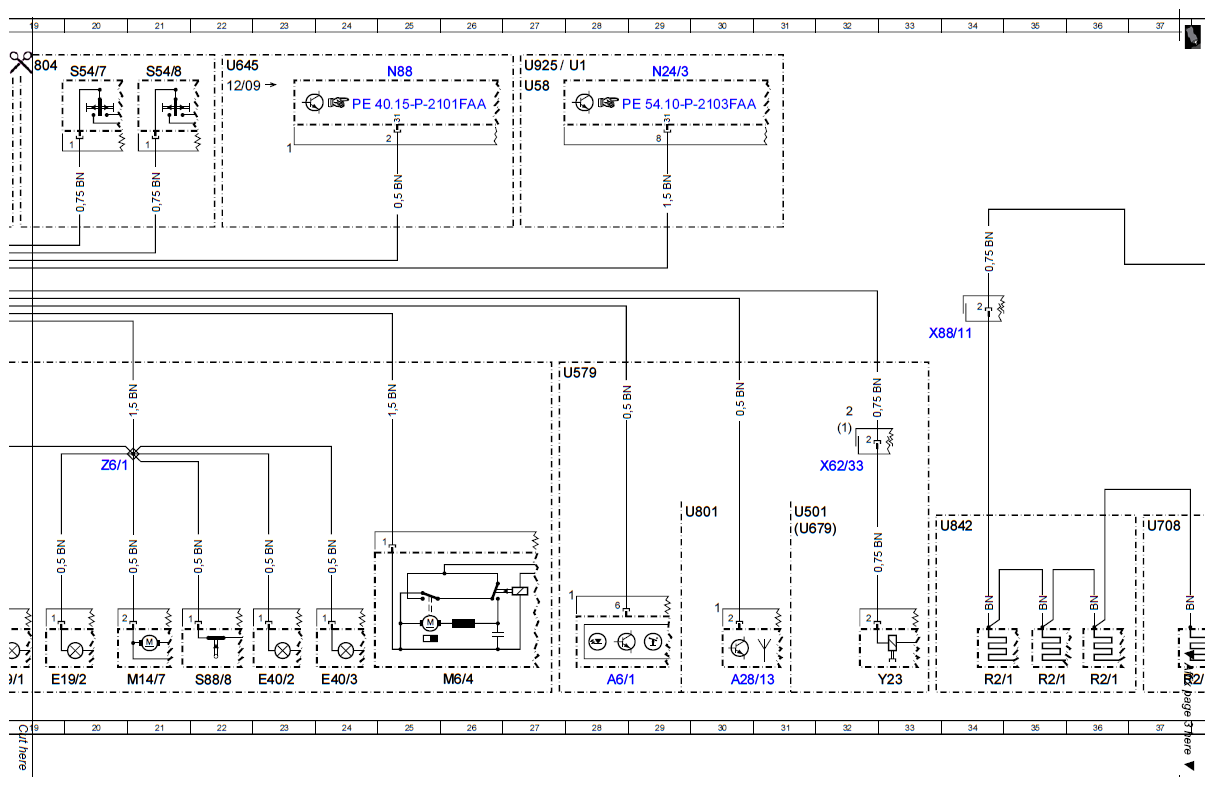

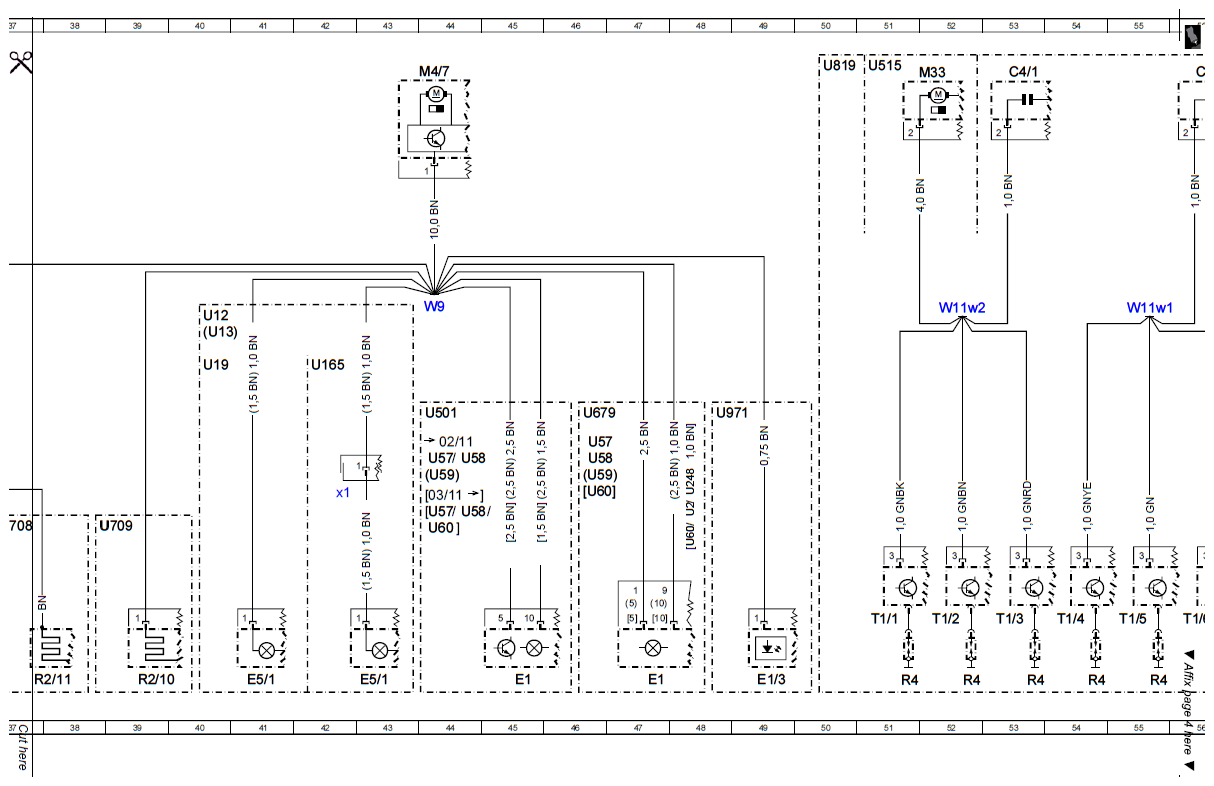

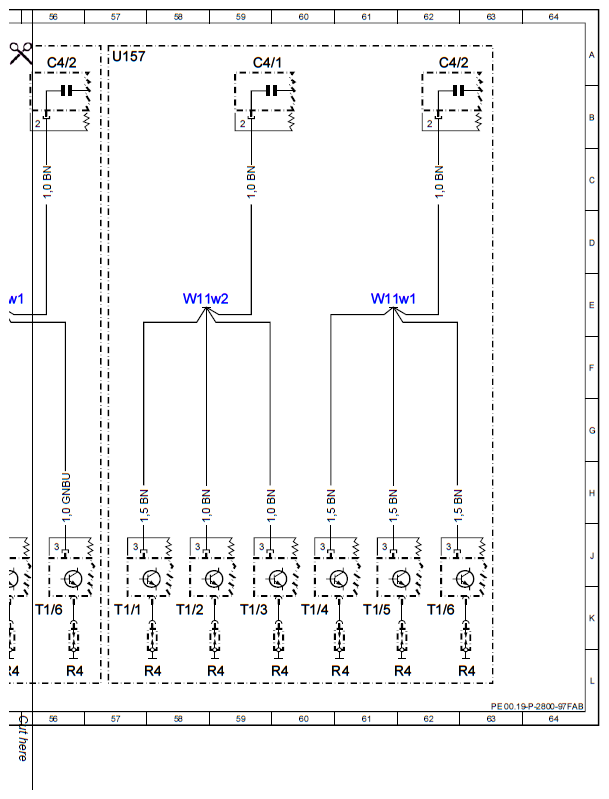

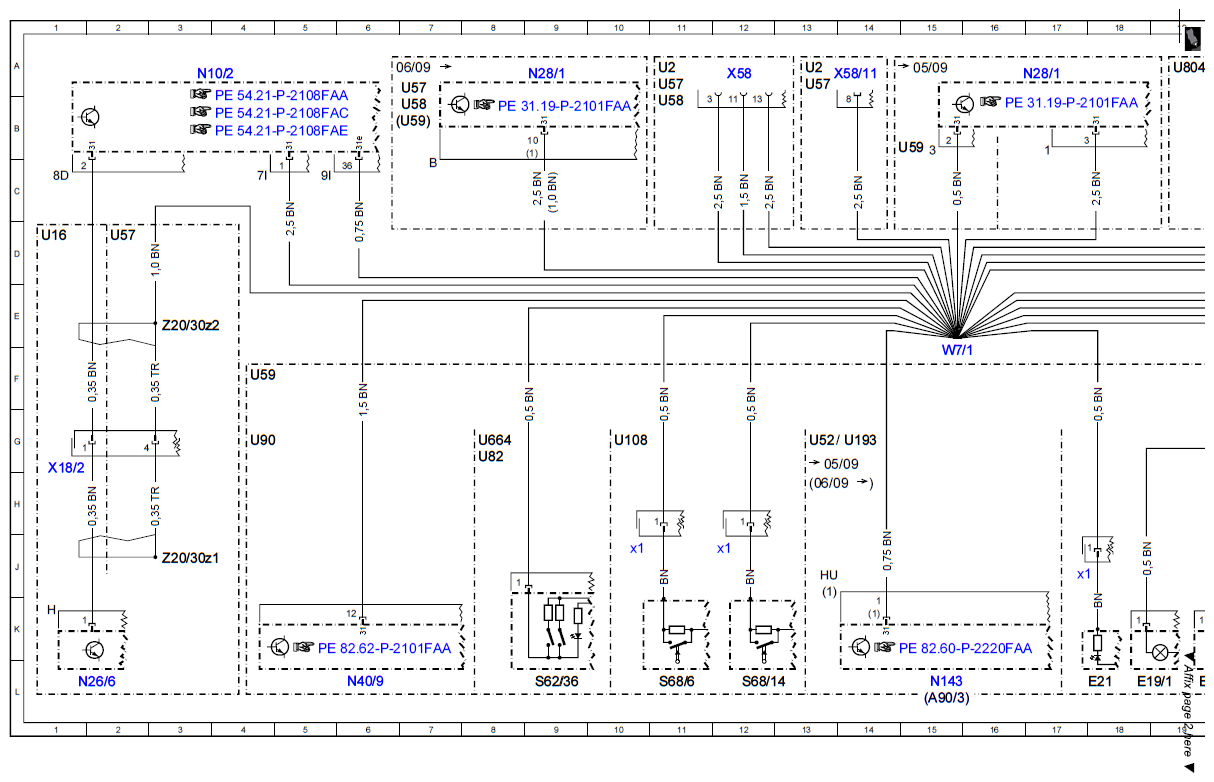

Wiring diagram for ground wiring - PE00.19-P-2800-97FAB
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A28/13 | Compensator /cellular telephone system UMTS | 30L |
| A6/1 | Stationary heater radio remote control receiver | 28L |
| A90/3 | TV digital tuner | 15L |
| C4/1 | Radio interference suppression capacitor 1 | 53A |
| C4/1 | Radio interference suppression capacitor 1 | 59A |
| C4/2 | Radio interference suppression capacitor 2 | 56A |
| C4/2 | Radio interference suppression capacitor 2 | 62A |
| E1 | Left front lamp unit | 45L |
| E1 | Left front lamp unit | 47L |
| E1/3 | Left daytime running lamps headlamp | 49L |
| E19/1 | Left license plate lamp | 18L |
| E19/2 | Right license plate lamp | 19L |
| E21 | Center stop lamp | 18L |
| E21x1 | Center brake lamp electrical connector | 17J |
| E40/2 | Left tailgate ambient lamp and warning lamp | 23L |
| E40/3 | Right tailgate ambient lamp and warning lamp | 24L |
| E5/1 | Left fog lamp | 43L |
| E5/1 | Left fog lamp | 41L |
| E5/1x1 | Left front fog lamp electrical connector | 42H |
| M14/7 | Tailgate central locking motor | 21L |
| M33 | Electric air pump | 52A |
| M4/7 | Combustion engine and air conditioning with integrated control fan motor | 44A |
| M6/4 | Tailgate wiper motor | 26L |
| N10/2 | Rear SAM control unit with fuse and relay module | 3A |
| N143 | TV tuner control unit | 15L |
| N24/3 | DC/AC converter control unit | 29A |
| N26/6 | Interior protection and tow-away protection control unit | 2L |
| N28/1 | Trailer recognition control unit | 9A |
| N28/1 | Trailer recognition control unit | 17A |
| N40/9 | Rear bass speaker amplifier | 6L |
| N88 | Tire pressure monitor control unit | 25A |
| R2/1 | Spray nozzle heater | 34L |
| R2/1 | Spray nozzle heater | 36L |
| R2/1 | Spray nozzle heater | 35L |
| R2/10 | Wiper park heater | 39L |
| R2/11 | Spray nozzle hose heater | 37L |
| R4 | Spark plugs | 52L |
| R4 | Spark plugs | 51L |
| R4 | Spark plugs | 58L |
| R4 | Spark plugs | 54L |
| R4 | Spark plugs | 55L |
| R4 | Spark plugs | 56L |
| R4 | Spark plugs | 53L |
| R4 | Spark plugs | 63L |
| R4 | Spark plugs | 62L |
| R4 | Spark plugs | 61L |
| R4 | Spark plugs | 60L |
| R4 | Spark plugs | 59L |
| S54/7 | Left rear backrest lock switch | 20A |
| S54/8 | Right rear backrest lock switch | 21A |
| S62/36 | Tailgate control button | 9L |
| S68/14 | Center rear seat belt buckle switch | 12L |
| S68/14x1 | Center rear seat belt buckle switch electrical connector | 12J |
| S68/6 | Right rear seat belt buckle switch | 11L |
| S68/6x1 | Right rear seat belt buckle switch electrical connector | 10J |
| S88/8 | Tailgate external operation switch | 22L |
| T1/1 | Cylinder 1 ignition coil | 51K |
| T1/1 | Cylinder 1 ignition coil | 57K |
| T1/2 | Cylinder 2 ignition coil | 52K |
| T1/2 | Cylinder 2 ignition coil | 58K |
| T1/3 | Cylinder 3 ignition coil | 59K |
| T1/3 | Cylinder 3 ignition coil | 53K |
| T1/4 | Cylinder 4 ignition coil | 54K |
| T1/4 | Cylinder 4 ignition coil | 60K |
| T1/5 | Cylinder 5 ignition coil | 55K |
| T1/5 | Cylinder 5 ignition coil | 61K |
| T1/6 | Cylinder 6 ignition coil | 56K |
| T1/6 | Cylinder 6 ignition coil | 62K |
| U1 | Valid for USA | 28A |
| U108 | Valid for rear seat belt buckles | 10G |
| U12 | Valid for left-hand drive vehicles | 40E |
| U13 | Valid for right-hand drive vehicles | 40E |
| U157 | Valid for combustion engine 272 DE | 57A |
| U16 | Valid for ATA [EDW] with tow-away protection and interior protection | 1D |
| U165 | Valid for AMG | 42F |
| U19 | Valid for standard equipment | 40F |
| U193 | Valid for TV and Video | 14G |
| U2 | Valid for all except USA | 11A |
| U2 | Valid for all except USA | 13A |
| U2 | Valid for all except USA | 48H |
| U248 | Valid for headlamp range adjustment for halogen headlamps | 48H |
| U501 | Valid for xenon headlamps | 31H |
| U501 | Valid for xenon headlamps | 44G |
| U515 | Valid for secondary air injection | 51A |
| U52 | Valid for Japan | 13G |
| U57 | Valid for model 204.2 | 2D |
| U57 | Valid for model 204.2 | 7A |
| U57 | Valid for model 204.2 | 11A |
| U57 | Valid for model 204.2 | 13A |
| U57 | Valid for model 204.2 | 46G |
| U57 | Valid for model 204.2 | 44G |
| U57 | Valid for model 204.2 | 44H |
| U579 | Valid for stationary heater | 27F |
| U58 | Valid for model 204.0 | 7B |
| U58 | Valid for model 204.0 | 11B |
| U58 | Valid for model 204.0 | 27A |
| U58 | Valid for model 204.0 | 46G |
| U58 | Valid for model 204.0 | 44G |
| U58 | Valid for model 204.0 | 44H |
| U59 | Valid for model 204.9 | 4F |
| U59 | Valid for model 204.9 | 6B |
| U59 | Valid for model 204.9 | 14B |
| U59 | Valid for model 204.9 | 46H |
| U59 | Valid for model 204.9 | 44H |
| U60 | Valid for model 204.3 | 44H |
| U60 | Valid for model 204.3 | 46H |
| U60 | Valid for model 204.3 | 48J |
| U645 | Valid for tire pressure monitor | 22A |
| U664 | Valid for automatic tailgate | 8G |
| U679 | Valid for version without xenon headlamps | 31J |
| U679 | Valid for version without xenon headlamps | 46G |
| U708 | Valid for spray nozzle hose heater | 37H |
| U709 | Valid for wiper park position heater | 38H |
| U801 | Valid for mobile phone preinstallation with universal interface | 29H |
| U804 | Valid for rear backrest adjustment | 19A |
| U819 | Valid for gasoline engine 272 | 50A |
| U82 | Valid for KEYLESS GO | 8G |
| U842 | Valid for spray nozzle heater | 33H |
| U90 | Valid for sound system | 4G |
| U925 | Valid for 115V socket | 27A |
| U971 | Valid for daytime running lamps | 48G |
| W11w1 | Left cylinder bank ground point (engine) | 55E |
| W11w1 | Left cylinder bank ground point (engine) | 61E |
| W11w2 | Right cylinder bank ground point (engine) | 52E |
| W11w2 | Right cylinder bank ground point (engine) | 58E |
| W7/1 | Right taillamp trunk ground point | 15F |
| W9 | Left front ground point (at lamp unit) | 44E |
| X18/2 | Interior/roof electrical connector | 1H |
| X58 | Trailer socket | 12A |
| X58/11 | Trailer socket (7-pin) | 14A |
| X62/33 | Rear axle electrical connector, right distributor | 32H |
| X88/11 | Spray nozzle heater electrical connector | 34E |
| Y23 | Stationary heater fuel pump | 33L |
| Z20/30z1 | Tracer wire connector sleeve | 3J |
| Z20/30z2 | Tracer wire connector sleeve | 3E |
| Z6/1 | Circuit 31 connector sleeve | 20G |
