Windshield washer system - inspect fluid level, adjust to correct level - AP82.35-P-8210P

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 209

Shows model 203

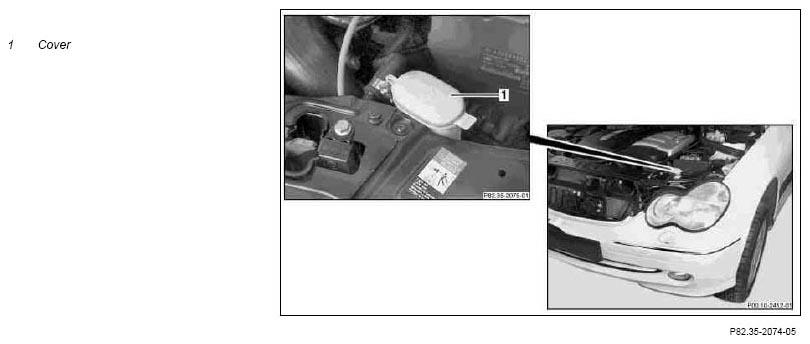

Fig 1: Identifying Windshield Washer System Cover

Courtesy of MERCEDES-BENZ USA

Shown on model 209 with code P98 Black Series

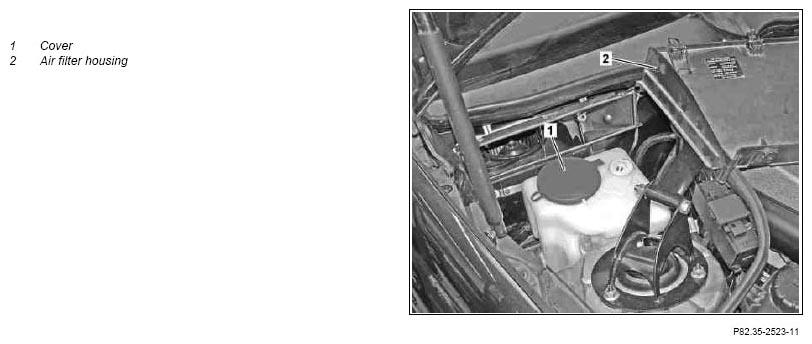

Fig 2: Identifying Air Filter Housing And Cover

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of fire and explosion caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin.	Wear protective clothing and tight fitting safety glasses. No fire, open light or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of children's reach only.	AS82.35-Z-0001-01A
1	Remove air filter housing (2)	Model 209 with code P98 Black Series	AP83.00-P-8381P
	Checking
2	Open hood (1) and fill reservoir of windshield washer system with windshield washer fluid	Pay attention to mixing ratio according to table on the packaging of the windshield washer fluid concentrate. Summer and winter version may be mixed.
2		Windshield washer fluid concentrate	*BF82.35-P-1001-01H
	Windshield washer fluid	Sheet 371.0	BB00.40-P-0371-00A
3	Install in the reverse order

WINDSHIELD WASHER SYSTEM FILLING CAPACITY

Number	Designation			Model 209 without code 600/875/ P98	Model 209 with code 600/875	Model 209 with code P98/P98&600
BF82.35-P-1001-01H	Windshield washer fluid	Filling capacity	Liters	3.0	6.0	5.0
