Partially prepare rear longitudinal member - AR64.20-P-1260-02CW

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

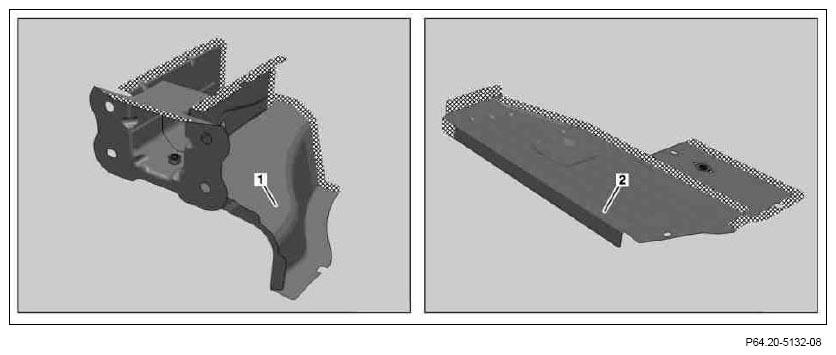

Fig 1: Locating Mating Surfaces On Rear Longitudinal Member And Rear Locking Lug
G07067594Courtesy of MERCEDES-BENZ USA

Shown on model 204.0

  1. Grind mating surfaces on rear longitudinal member (1) and rear locking lug (2) down to bate metal in cross-hatched areas with shank brush.

    IMPORTANT Grind spot weld flanges down to bare metal on both sides.

  2. Remove sanding dust using wet/dry vacuum cleaner.
  3. Coat insides of spot weld flanges with zinc dust paint.
