Install rear longitudinal member section - AR64.20-P-1260-03CW

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

Shown on model 204.0

Install rear longitudinal member section (1) and rear locking lug (2), fit with straightening tool and fix in place using clamping pliers.
Observe setup plans. Use spacer for straightening tool.
Drill rivet holes on rear longitudinal member section (1) and rear locking lug (2) with Ø 6.7 mm bit (areas A, B, C and D).

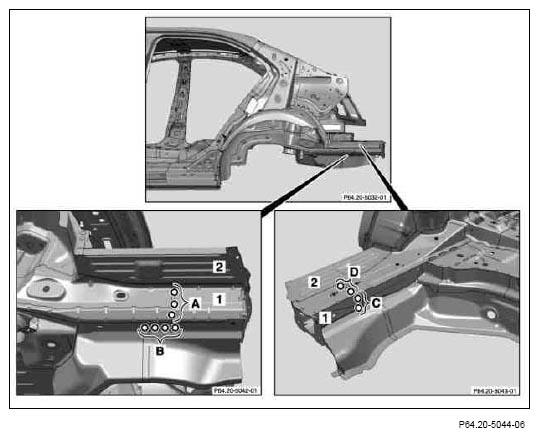

Fig 1: Identifying Rivet Holes On Rear Longitudinal Member Section And Locking Lug (Areas A, B, C And D)
Courtesy of MERCEDES-BENZ USA

Shown on model 204.0
Remove rear longitudinal member section (1) and rear end part (2).
Deburr rivet holes on rear longitudinal member section (1) and rear end part (2) on both sides.
Remove drilling shavings with wet/dry vacuum cleaner.
Coat insides of rivet connections with zinc dust paint suitable for spot welding.
Install rear longitudinal member section (1) and rear locking lug (2), fit with straightening tool and fix in place using clamping pliers and manual temporary fasteners.
Use spacers of straightening tool (see set-up plan).

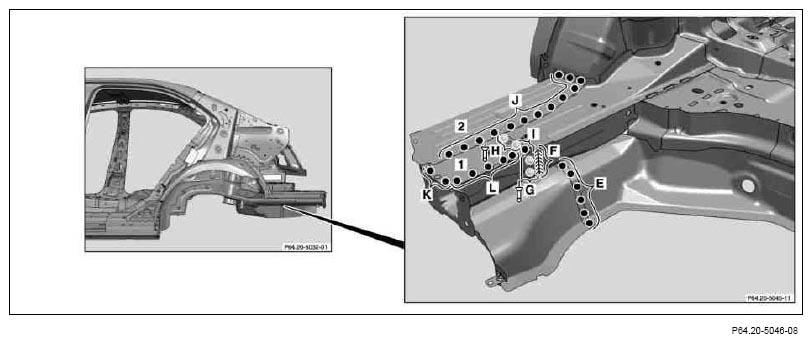

Fig 2: Identifying Rear Longitudinal Member Section And Rear Locking Lug Areas E, F, H, I, J, K & L
Courtesy of MERCEDES-BENZ USA

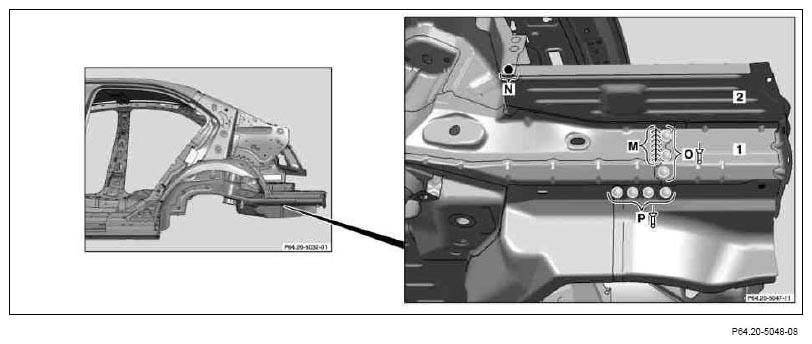

Fig 3: Identifying Rear Longitudinal Member Section Areas M, N, O & P
Courtesy of MERCEDES-BENZ USA

Shown on model 204.0
Rear longitudinal member section (1) and rear locking lug (2) (areas E, I, J, K, L and N).
Rear longitudinal member section (1) (areas F and M).
Remove manual temporary fasteners.
Rivet rear longitudinal member section (1) with steel/steel blind rivet, Ø 6.5X12.5 (areas G, H, O and P).
