Install rear fender - AR63.50-P-1400-04CW

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODIFICATION NOTES

26.1.09 Modification to repair method Operation steps 10, 11, 12,

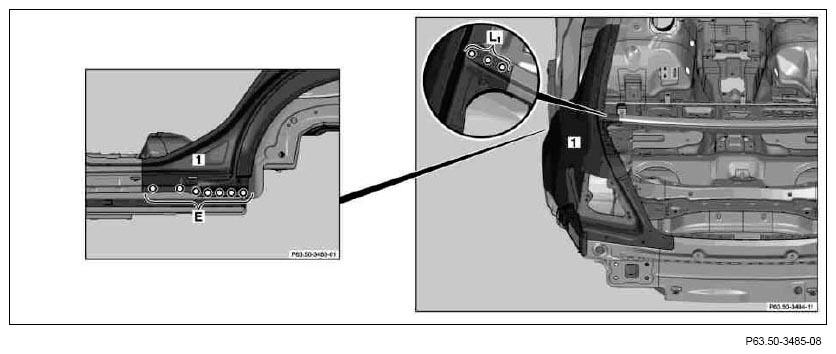

Fig 1: Identifying Rear Fender Rivet Holes
G07069894Courtesy of MERCEDES-BENZ USA
  1. Install rear fender (1), liftgate, taillamp and rubber seal and fit.
  2. Check gaps using SPECIAL TOOL feeler gauge and adjust.
  3. Fix rear fender (1) in place.
  4. Remove liftgate, taillamp and rubber seal.
  5. Drill rivet holes in rear fender (1) with 6.5 mm dia. bit (areas E and L1 ).
  6. Countersink rivet holes on rear fender (1) (areas E and L 1 ).
  7. Remove rear fender (1)
  8. Deburr rivet holes on rear fender (1) on both sides.
  9. Coat insides of riveted joints with zinc dust paint.
  10. Install rubber window spacers from glazing repair kit as spacers on rear fender, at uniform intervals (area S).
  11. Apply sealant to outer rear wheel well, C-pillar and foam rubber elements (areas Q, R and S).

    IMPORTANT Damaged foam parts must be removed and replaced.

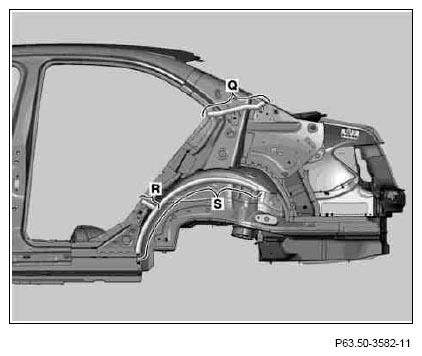

    Fig 2: Identifying Rear Wheel Well, C-Pillar And Foam Rubber Sealant Areas
    G07069895Courtesy of MERCEDES-BENZ USA
  12. Install rear fender (1), fit and fix in place
  13. Rivet rear fender (1) with Polyygrip ø 6.4 x 14 countersunk-head rivet (area E).
  14. Rear fender (1) POLARIZATION RESISTANCE SINGLE-ROW SPOT WELD (areas D, F, G and H).
  15. Weld in rear fender (1) with POLARIZATION RESISTANCE SINGLE-ROW SPOT WELD (areas A and C).

    IMPORTANT Inert gas weld in intervals, allow to cool down in between to minimize heat distortion (areas A and C).

  16. Rear fender (1) SHIELDED GAS PLUG WELD (area D1 ).

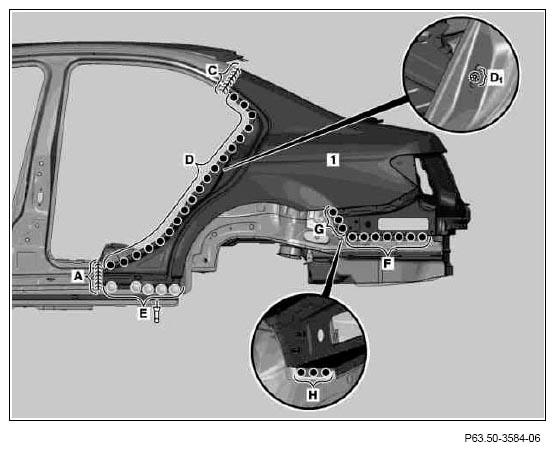

    Fig 3: Identifying Rear Fender Rivet And Weld Areas
    G07069896Courtesy of MERCEDES-BENZ USA
  17. Rivet rear fender (1) with Polyygrip Ø 6.4 x 14 countersunk-head rivet (area L1 ).
  18. Rear fender (1) POLARIZATION RESISTANCE SINGLE-ROW SPOT WELD (areas I, J, K and L2 ).

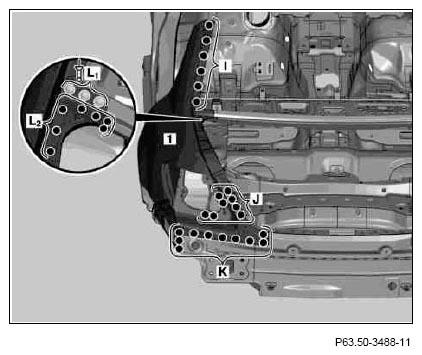

    Fig 4: Identifying Rear Fender Spot Weld & Rivet Areas
    G07069897Courtesy of MERCEDES-BENZ USA
  19. Clean welds on rear fender (1).
  20. Grind rear fender (1) down flat in cross-hatched areas.
  21. Finish surface on rear fender (1), fill and smooth.
  22. Remove drill shavings.
    Fig 5: Identifying Rear Fender Grinding Areas
    G07069898Courtesy of MERCEDES-BENZ USA
