Remove contacts from 2.5 solder contact plug round plug contact - AR00.19-P-0120-18A

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying RK 2.5 Blade Solder Contact (220 589 01 99 53)

Courtesy of MERCEDES-BENZ USA

Unfasten secondary release on version with slide

Insert a suitable tool under the slide valve cap (1) and press the slide valve out of the last detent in direction shown by arrow.

Fig 5: Pressing Slide Valve Out Of Last Detent
Courtesy of MERCEDES-BENZ USA

Unfasten secondary release on version with securing clip

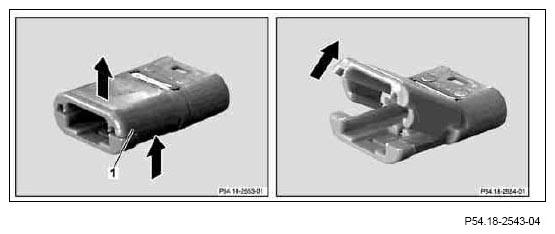

Using a suitable tool, pry up the side tabs of the retaining clamp (1).
Open the retaining clamp (1).

Fig 6: Prying Up Side Tabs Of Retaining Clamp
Courtesy of MERCEDES-BENZ USA

Unpin contact from the connector
Insert blade holder with clamping pliers and RK 2.5 solder contact blade from rear side into cable duct of connector.
Align sleeve of RK 2.5 solder contact blade to spring shackle (1) of connector housing.

This step presses on the spring shackle (1) of the connector.
Remove contact pin together with blade holder with clamping pliers and RK 2.5 solder contact blade from connector by gently pulling towards rear.

Fig 7: Removing Contact Pin & Blade Holder From Connector
Courtesy of MERCEDES-BENZ USA
