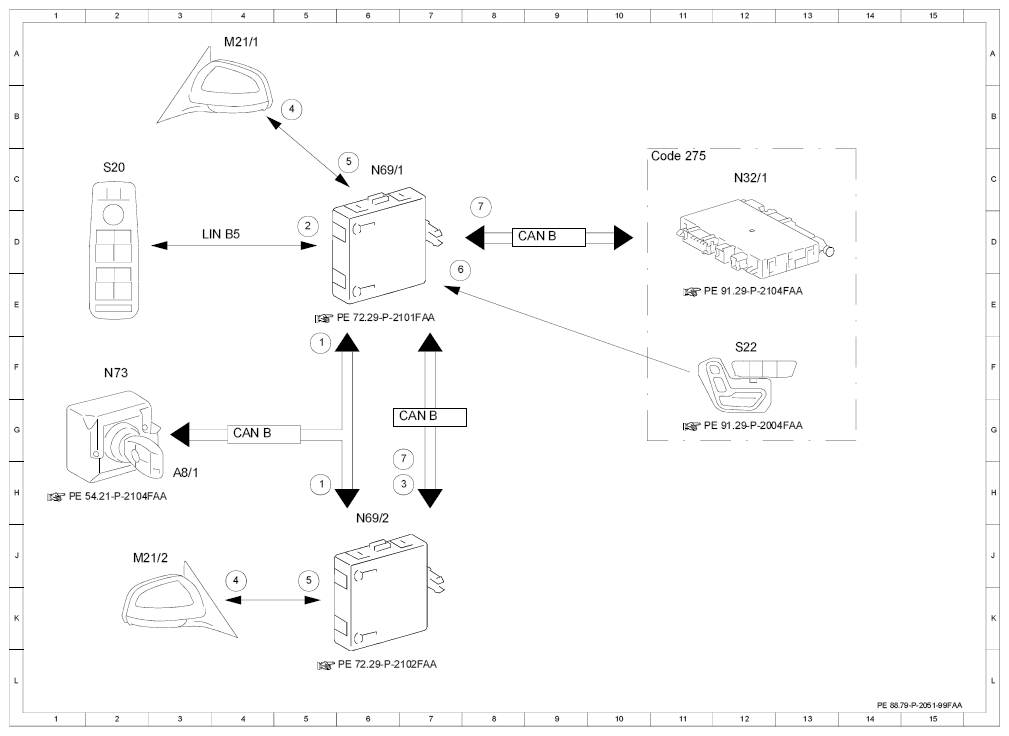

Electrical function schematic for mirror lens adjustment - PE88.79-P-2051-99FAA
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 5 H |
| 1 | Circuit 15, status | 5 F |
| 2 | Driver-side switch group, status | 5 D |
| 3 | Outside mirror actuator motor, request | 6 H |
| 4 | Outside mirror actuator motor, actuation | 4 K |
| 4 | Outside mirror actuator motor, actuation | 5 B |
| 5 | Outside mirror actuator motor, signal | 5 K |
| 5 | Outside mirror actuator motor, signal | 6 C |
| 6 | Seat adjustment switch group, status | 7 E |
| 7 | Store/call up outside mirror position, request | 6 H |
| 7 | Store/call up outside mirror position, request | 8 D |
| A8/1 | Transmitter key | 3 H |
| CAN B | Interior CAN | 4 G |
| CAN B | Interior CAN | 6 G |
| CAN B | Interior CAN | 8 D |
| Code 275 | Memory function (driver seat, steering column, outside mirror) | 10 C |
| LIN B5 | Left door LIN | 3 D |
| M21/1 | Left outside mirror | 4 A |
| M21/2 | Right outside mirror | 2 J |
| N32/1 | Driver seat control unit | 12 C |
| N69/1 | Left front door control unit | 6 C |
| N69/2 | Right front door control unit | 6 J |
| N73 | Electronic ignition switch control unit | 2 F |
| S20 | Driver-side power window and outside mirror adjustment switch group | 2 C |
| S22 | Left front seat adjustment switch group | 12 F |
