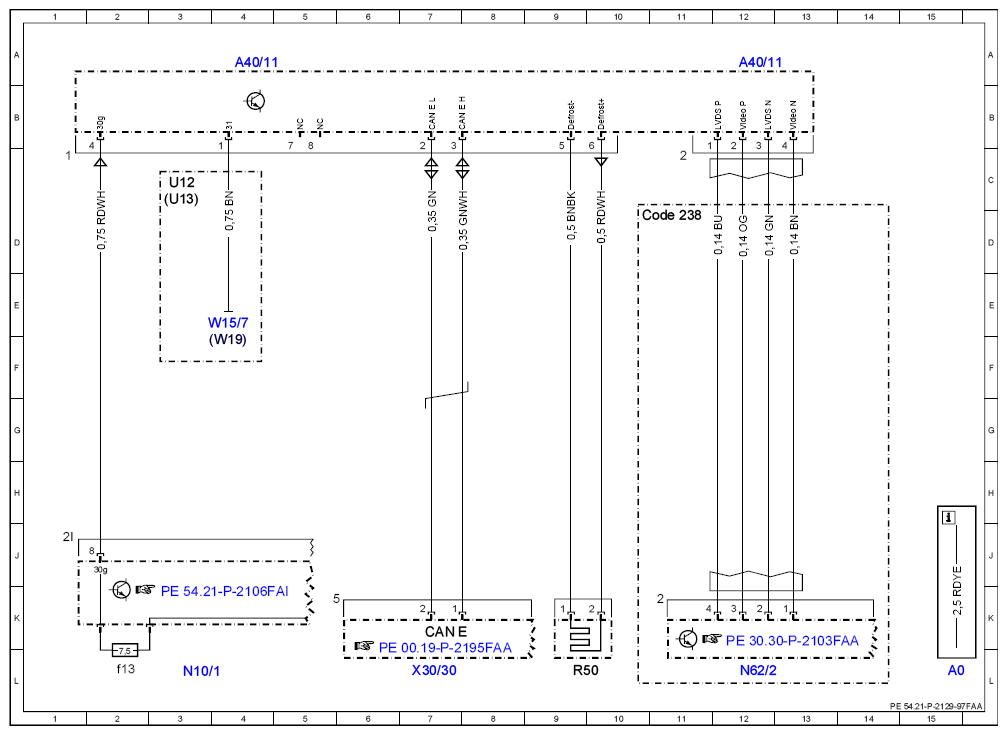

Wiring diagram for multifunction camera - PE54.21-P-2129-97FAA
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A40/11 | Multifunction camera | 4A |
| A40/11 | Multifunction camera | 12A |
| CAN E | Chassis CAN | 7K |
| Code 238 | Active Lane Keeping Assist | 10D |
| N10/1 | Front SAM control unit with fuse and relay module | 3L |
| N10/1f13 | Fuse 13 | 2L |
| N62/2 | Video and radar sensor system control unit | 12L |
| R50 | Auxiliary heater heating element | 9L |
| U12 | Valid for left-hand drive vehicles | 3C |
| U13 | Valid for right-hand drive vehicles | 3C |
| W15/7 | Right front footwell ground point | 4E |
| W19 | Right front seat crossmember ground point | 4F |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 7L |
