Fuse and relay box, as-built configuration - GF54.15-P-0800CE
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2 as of model year 2009
/YoM 08
Model 204.0/2/3, shown on model 204.0
Great Britain version, Shown on model 204.0

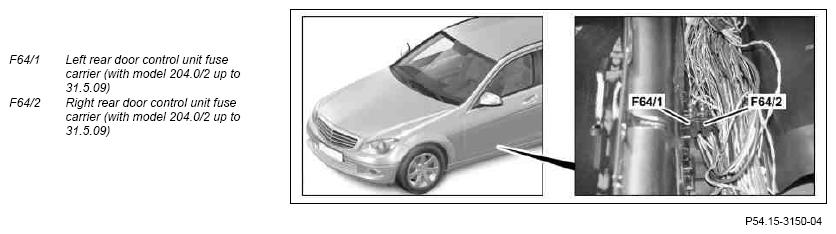

The rear door control unit fuse carrier is located on the driver-side in the main wiring harness.
The left rear door control unit fuse carrier safeguards the left rear door control unit (N69/3) and the right rear door control unit fuse carrier safeguards the right rear door control unit (N69/4) with I = 30 amps.

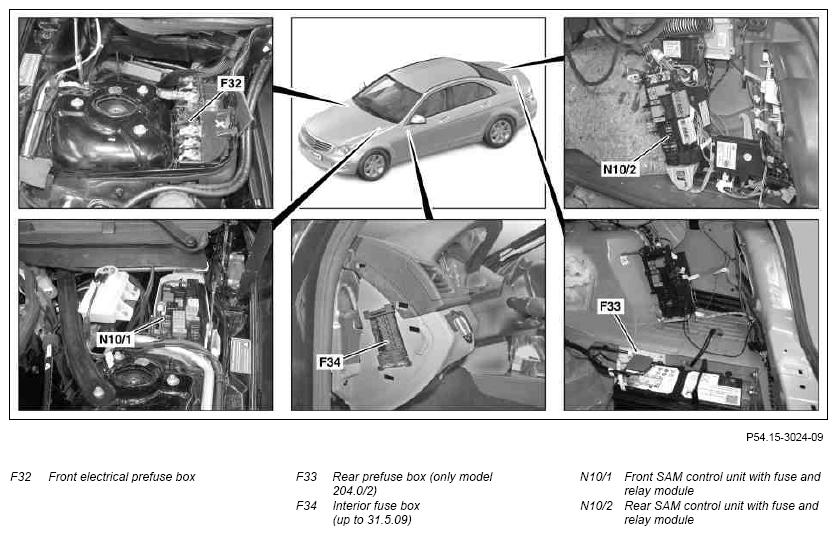

| Fuse assignment of front prefuse box | F32 up to 31.5.09 |
GF54.15-P-1256-07CE |
| As of 1.6.09 | GF54.15-P-1256-07CEA | |
| Fuse assignment of rear prefuse box | F33 On model 204.0/2 |
GF54.15-P-1256-08CE |
| Fuse assignment of fuse box in left of cockpit | F34 up to 31.5.09 |
GF54.15-P-1256-13CE |
| Fuse assignment of fuse and relay box in left engine compartment | N10/1 | GF54.15-P-1256-03CE |
| Fuse assignment of fuse and relay box in trunk | N10/2 | GF54.15-P-1256-06CE |
| Relay assignment of fuse and relay box in left side of engine compartment | N10/1 | GF54.15-P-1257-03CE |
| Relay assignment of fuse and relay box in trunk | N10/2 | GF54.15-P-1257-04CE |
