Wiring diagram of front SAM control unit with fuse and relay module (N10/1) - PE54.21-P-2106-97FAG

WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
Code: Designation: Position:
A0 Color code key 80L
A2 Radio 16L
A2 Radio 16L
A2/56 Radio with auto pilot system 15L
A40/3 COMAND control unit 20L
A40/3 COMAND control unit 24L
B31 Emissions sensor 48L
B48 Front passenger seat occupied recognition and ACSR 7L
CAN D Diagnostic CAN 27K
CAN E Chassis CAN 53K
CAN E Chassis CAN 56K
E13/1 Glove box lamp 11L
LIN B8 Climate control LIN 45F
M13/5 Coolant circulation pump 74L
N10/1 Front SAM control unit with fuse and relay module 4A
N10/1 Front SAM control unit with fuse and relay module 12A
N10/1 Front SAM control unit with fuse and relay module 21A
N10/1 Front SAM control unit with fuse and relay module 29A
N10/1 Front SAM control unit with fuse and relay module 37A
N10/1 Front SAM control unit with fuse and relay module 53A
N10/1 Front SAM control unit with fuse and relay module 45A
N10/1 Front SAM control unit with fuse and relay module 61A
N10/1 Front SAM control unit with fuse and relay module 69A
N10/1 Front SAM control unit with fuse and relay module 75A
N10/1f21 Fuse 21 3A
N10/1f26 Fuse 26 20A
N123/4 Emergency call system control unit 28L
N22/4 Rear automatic air conditioning operating unit 40L
N22/7 Automatic air conditioning control and operating unit 33L
N22/7 Automatic air conditioning control and operating unit 37L
N22/7 Automatic air conditioning control and operating unit 44L
N3/10 ME-SFI [ME] control unit 59L
N3/10 ME-SFI [ME] control unit 63L
N3/9 CDI control unit 72L
N3/9 CDI control unit 67L
S12 Parking brake indicator switch 52L
S17/9 Glove box lamp switch 10L
S9/1 Stop lamp switch 3L
U1018 Valid for gasoline engine 276 61J
U1018 Valid for gasoline engine 276 57H
U113 Valid for 2-zone THERMATIC 31G
U113 Valid for 2-zone THERMATIC 43G
U114 Valid for 3-zone THERMOTRONIC 35G
U114 Valid for 3-zone THERMOTRONIC 47G
U114 Valid for 3-zone THERMOTRONIC 43G
U114 Valid for 3-zone THERMOTRONIC 74G
U12 Valid for left-hand drive vehicles 12J
U12 Valid for left-hand drive vehicles 49G
U12 Valid for left-hand drive vehicles 52G
U13 Valid for right-hand drive vehicles 12J
U13 Valid for right-hand drive vehicles 50G
U13 Valid for right-hand drive vehicles 52G
U152 Valid for gasoline engine 156 61G
U157 Valid for combustion engine 272 DE 61G
U169 Valid for gasoline engine 271 DE 65J
U169 Valid for gasoline engine 271 DE 61H
U252 Valid for ECO start/stop function 61H
U252 Valid for ECO start/stop function 65H
U252 Valid for ECO start/stop function 69H
U252 Valid for ECO start/stop function 73H
U52 Valid for Japan 18G
U52 Valid for Japan 22G
U54 Valid for all except Japan 18G
U54 Valid for all except Japan 22G
U541 Valid for TELEAID emergency call system 26G
U57 Valid for model 204.2 1G
U58 Valid for model 204.0 1G
U59 Valid for model 204.9 1G
U739 Valid for gasoline engine 271 continuous fuel injection system (electronic) 57G
U740 Valid for diesel engine 646 65G
U819 Valid for gasoline engine 272 57G
U848 Valid for ACSR 5G
U865 Valid for Audio 20 14H
U865 Valid for Audio 20 14H
U866 Valid for Audio 50 14H
U880 Valid for diesel engine 642 65G
U880 Valid for diesel engine 642 69J
U948 Valid for diesel engine 651 70G
W15/5 Left front footwell ground point 13L
W15/5 Left front footwell ground point 52H
W15/7 Right front footwell ground point 13L
W15/7 Right front footwell ground point 52H
W16/4 Right wheelhouse ground point 74H
X11/4 Diagnostic connector 30L
X18 Vehicle interior and harness for taillamp electrical connector 50H
X18/35 Instrument panel and vehicle floor electrical connector 38H
X28/18 ACSR [AKSE] seat occupied recognition electrical connector 7H
X29/1 Glove compartment electrical connector 9H
X30/30 Vehicle floor chassis CAN voltage distributor electrical connector 54L
X55/4 Front passenger seat connector block 5H
Z68/11 Rear air conditioning LIN bus ground line connector sleeve 40H
Z68/3 Vehicle interior LIN bus ground line connector sleeve 37H
Z7/21 Air conditioning circuit 30 connector sleeve 44H

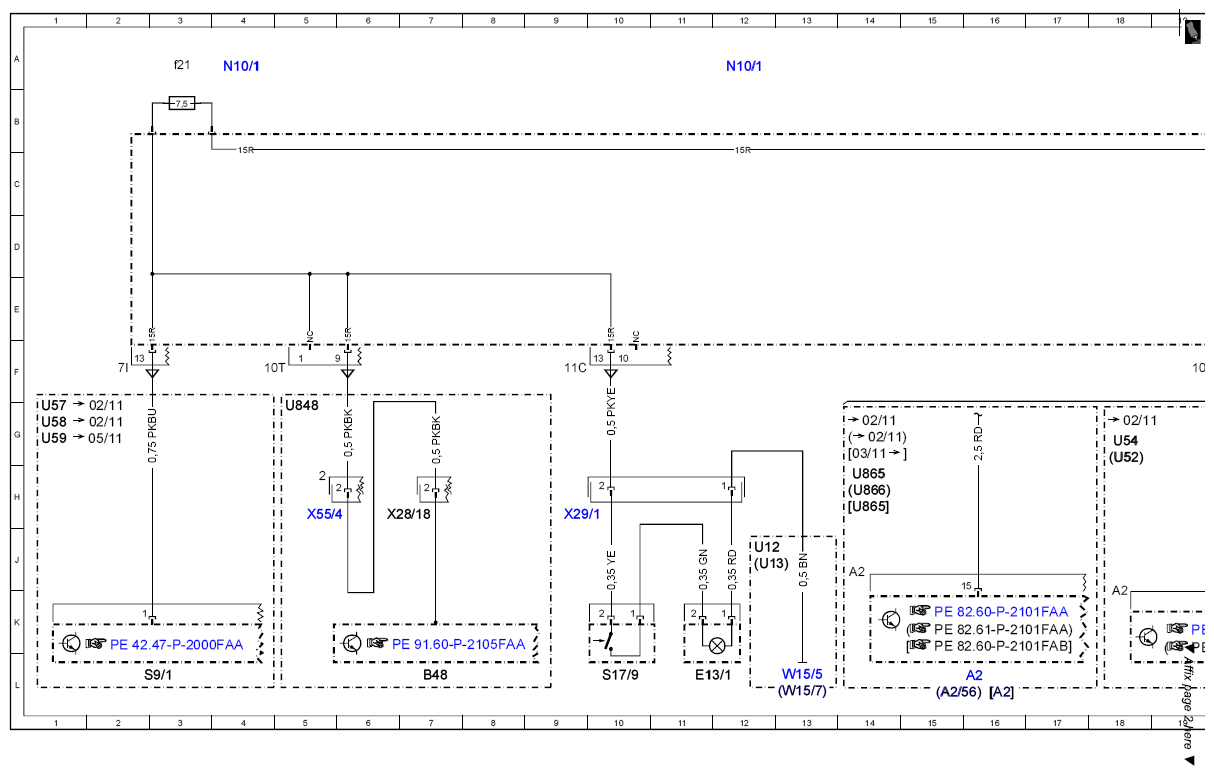

Fig 1: Front SAM Control Unit With Fuse And Relay Module - Wiring Diagram (1 Of 5)
G07524365Courtesy of MERCEDES-BENZ USA

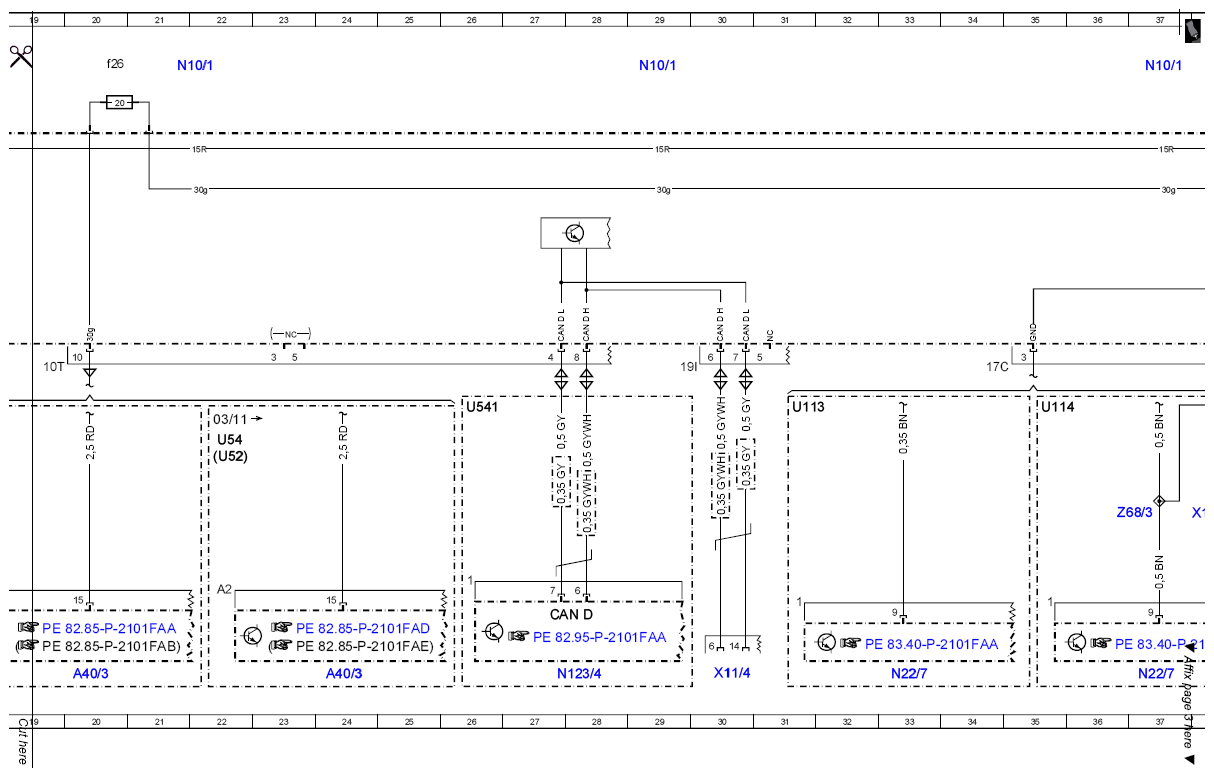

Fig 2: Front SAM Control Unit With Fuse And Relay Module - Wiring Diagram (2 Of 5)
G07524366Courtesy of MERCEDES-BENZ USA

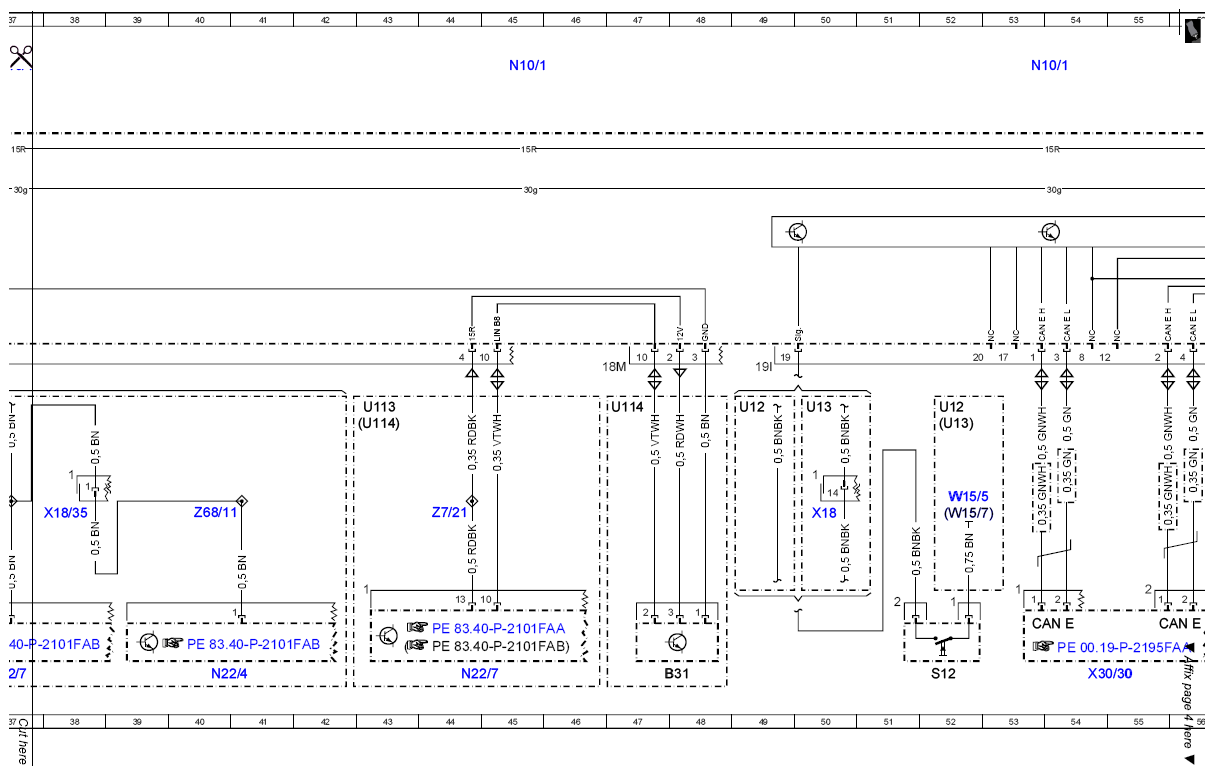

Fig 3: Front SAM Control Unit With Fuse And Relay Module - Wiring Diagram (3 Of 5)
G07524367Courtesy of MERCEDES-BENZ USA

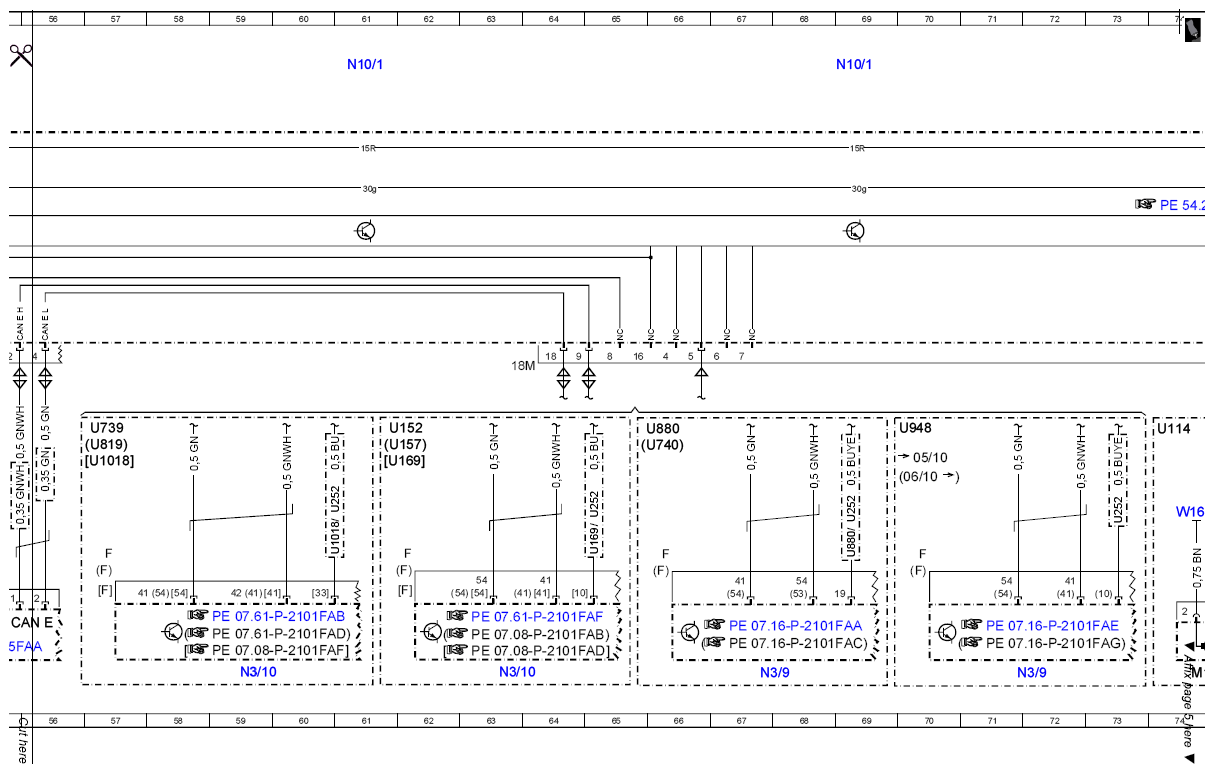

Fig 4: Front SAM Control Unit With Fuse And Relay Module - Wiring Diagram (4 Of 5)
G07524368Courtesy of MERCEDES-BENZ USA
Fig 5: Front SAM Control Unit With Fuse And Relay Module - Wiring Diagram (5 Of 5)
G07524369Courtesy of MERCEDES-BENZ USA
