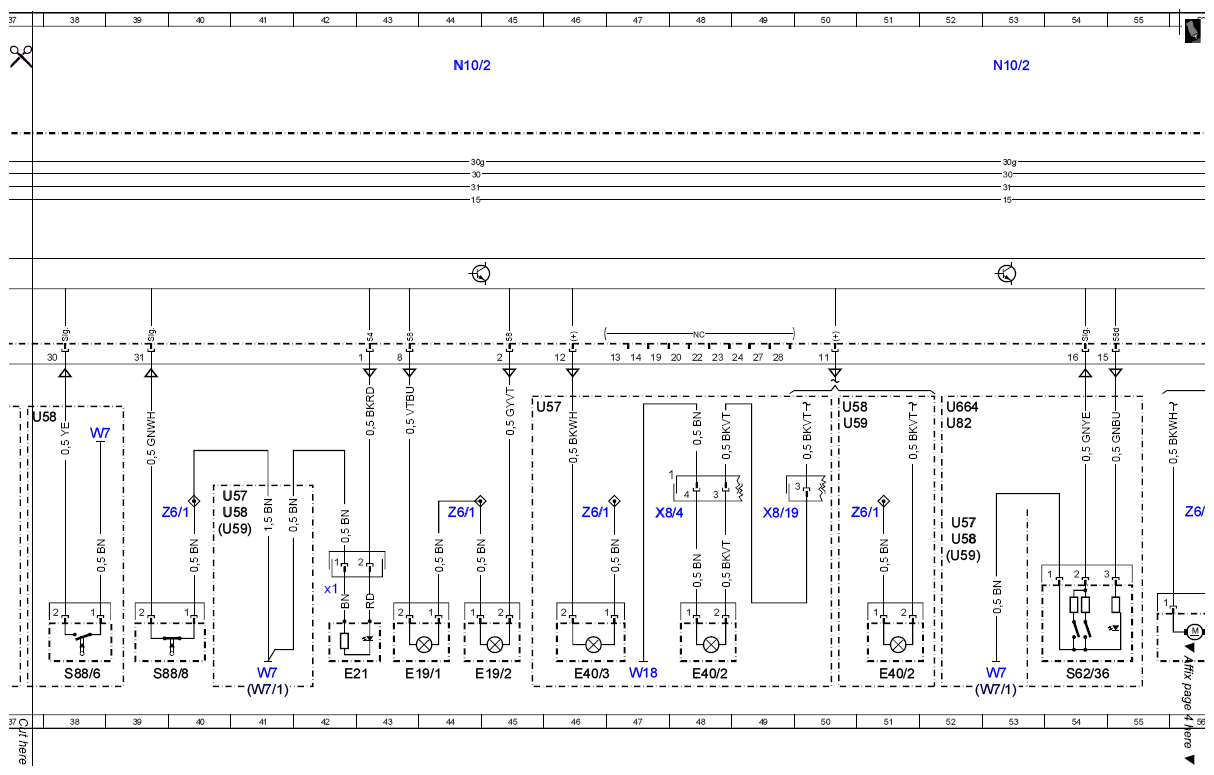

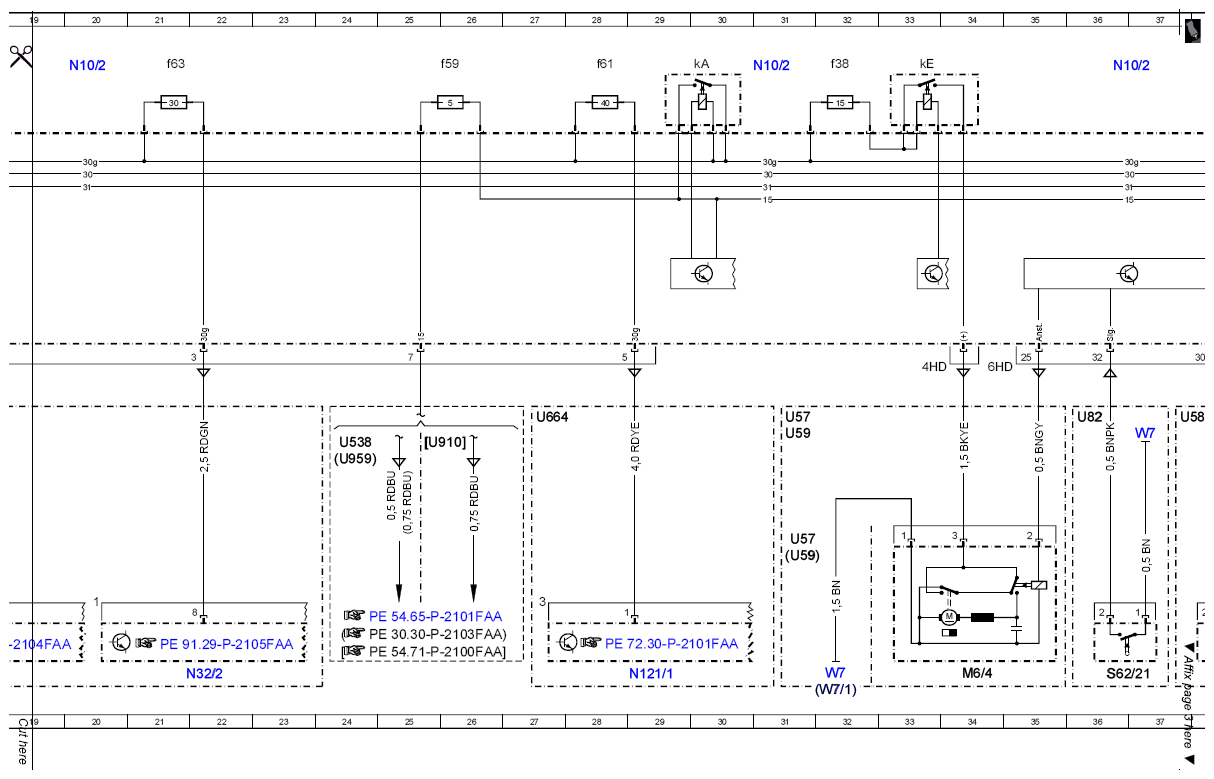

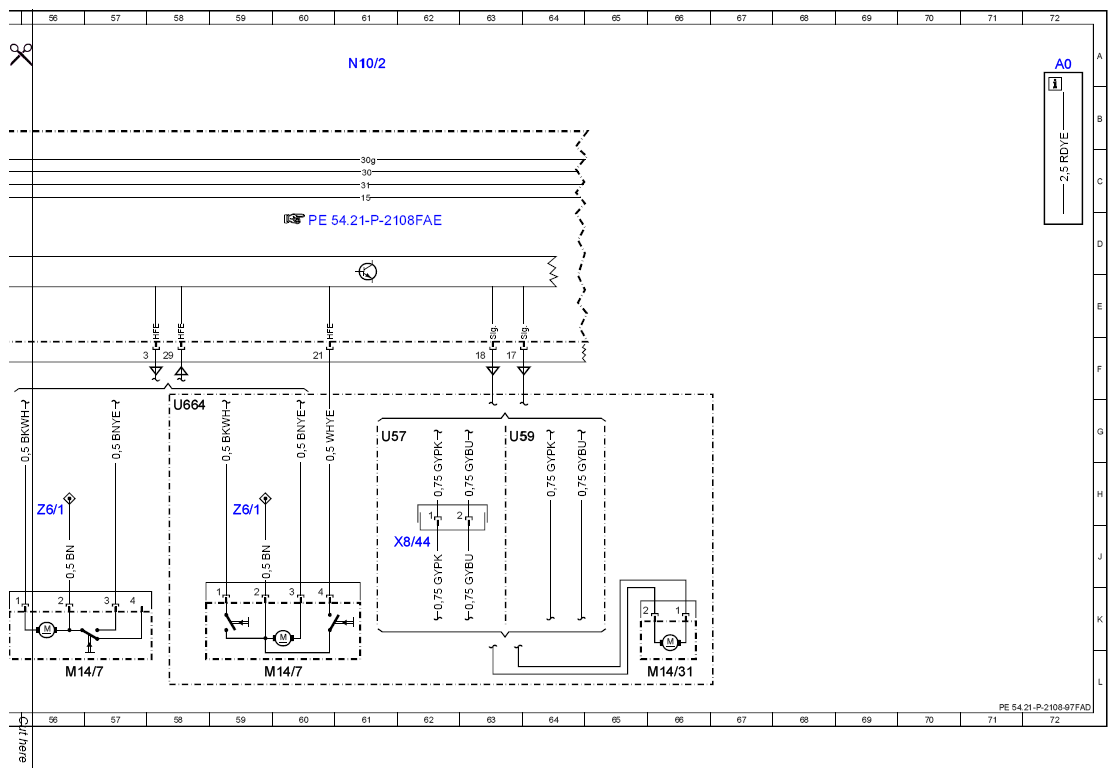

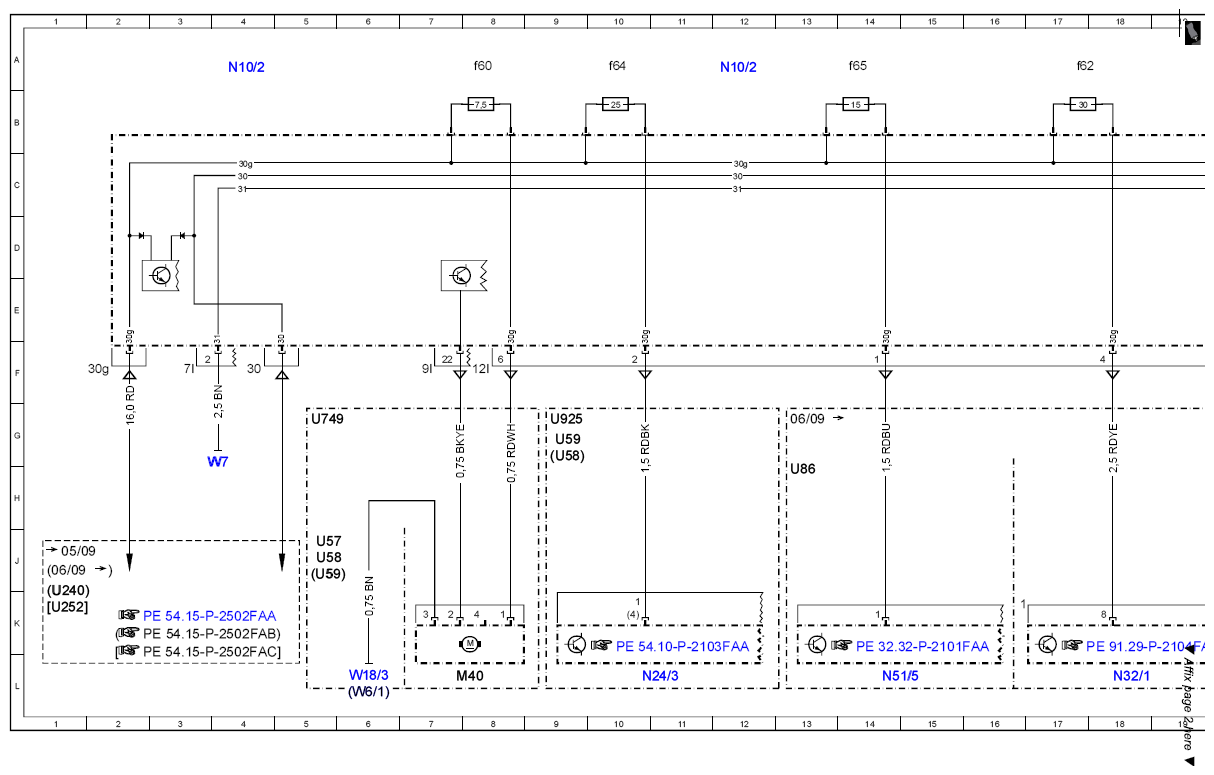

Wiring diagram for rear SAM control unit with fuse and relay module (N10/2) - PE54.21-P-2108-97FAD
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 72A |
| E19/1 | Left license plate lamp | 43L |
| E19/2 | Right license plate lamp | 45L |
| E21 | Center stop lamp | 42L |
| E21x1 | Center brake lamp electrical connector | 42K |
| E40/2 | Left tailgate ambient lamp and warning lamp | 48L |
| E40/2 | Left tailgate ambient lamp and warning lamp | 51L |
| E40/3 | Right tailgate ambient lamp and warning lamp | 46L |
| M14/31 | Tailgate locking element | 66L |
| M14/7 | Tailgate central locking motor | 56L |
| M14/7 | Tailgate central locking motor | 60L |
| M40 | Multicontour seat pneumatic pump | 8L |
| M6/4 | Tailgate wiper motor | 34L |
| N10/2 | Rear SAM control unit with fuse and relay module | 4A |
| N10/2 | Rear SAM control unit with fuse and relay module | 12A |
| N10/2 | Rear SAM control unit with fuse and relay module | 20A |
| N10/2 | Rear SAM control unit with fuse and relay module | 31A |
| N10/2 | Rear SAM control unit with fuse and relay module | 36A |
| N10/2 | Rear SAM control unit with fuse and relay module | 44A |
| N10/2 | Rear SAM control unit with fuse and relay module | 53A |
| N10/2 | Rear SAM control unit with fuse and relay module | 61A |
| N10/2f38 | Fuse 38 | 32A |
| N10/2f59 | Fuse 59 | 26A |
| N10/2f60 | Fuse 60 | 8A |
| N10/2f61 | Fuse 61 | 28A |
| N10/2f62 | Fuse 62 | 17A |
| N10/2f63 | Fuse 63 | 21A |
| N10/2f64 | Fuse 64 | 10A |
| N10/2f65 | Fuse 65 | 14A |
| N10/2kA | Circuit 15 relay | 30A |
| N10/2kE | Tailgate windshield wiper relay | 33A |
| N121/1 | Tailgate control unit | 29L |
| N24/3 | DC/AC converter control unit | 11L |
| N32/1 | Driver seat control unit | 18L |
| N32/2 | Front passenger seat control unit | 22L |
| N51/5 | Adaptive damping system control unit | 14L |
| S62/21 | Tailgate KEYLESS GO button | 36L |
| S62/36 | Tailgate control button | 54L |
| S88/6 | Tailgate contact switch | 38L |
| S88/8 | Tailgate external operation switch | 39L |
| U240 | Valid for all except ECO start/stop function | 1K |
| U252 | Valid for ECO start/stop function | 1K |
| U538 | Valid for PARKTRONIC | 24G |
| U57 | Valid for model 204.2 | 5J |
| U57 | Valid for model 204.2 | 31J |
| U57 | Valid for model 204.2 | 31G |
| U57 | Valid for model 204.2 | 40H |
| U57 | Valid for model 204.2 | 52J |
| U57 | Valid for model 204.2 | 45G |
| U57 | Valid for model 204.2 | 61G |
| U58 | Valid for model 204.0 | 5J |
| U58 | Valid for model 204.0 | 9G |
| U58 | Valid for model 204.0 | 40H |
| U58 | Valid for model 204.0 | 37G |
| U58 | Valid for model 204.0 | 52J |
| U58 | Valid for model 204.0 | 50G |
| U59 | Valid for model 204.9 | 31J |
| U59 | Valid for model 204.9 | 5J |
| U59 | Valid for model 204.9 | 9G |
| U59 | Valid for model 204.9 | 31G |
| U59 | Valid for model 204.9 | 40J |
| U59 | Valid for model 204.9 | 52J |
| U59 | Valid for model 204.9 | 50G |
| U59 | Valid for model 204.9 | 63G |
| U664 | Valid for automatic tailgate | 27G |
| U664 | Valid for automatic tailgate | 52G |
| U664 | Valid for automatic tailgate | 58G |
| U749 | Valid for multicontour seat | 5G |
| U82 | Valid for KEYLESS GO | 36G |
| U82 | Valid for KEYLESS GO | 52G |
| U86 | Valid for adaptive damping system and ESP | 13H |
| U910 | Valid for Blind Spot Assist | 25G |
| U925 | Valid for 115V socket | 9G |
| U959 | Valid for video and radar sensor system control unit | 24G |
| W18 | Left front seat crossmember ground point | 47L |
| W18/3 | Left front seat crossmember ground point 2 | 6L |
| W6/1 | Left taillamp trunk ground point | 6L |
| W7 | Right wheelhouse trunk ground point | 32L |
| W7 | Right wheelhouse trunk ground point | 41L |
| W7 | Right wheelhouse trunk ground point | 53L |
| W7 | Right wheelhouse trunk ground point | 37G |
| W7 | Right wheelhouse trunk ground point | 38G |
| W7 | Right wheelhouse trunk ground point | 4H |
| W7/1 | Right taillamp trunk ground point | 32L |
| W7/1 | Right taillamp trunk ground point | 41L |
| W7/1 | Right taillamp trunk ground point | 53L |
| X8/19 | Tailgate electrical connector | 49H |
| X8/4 | Tailgate electrical connector | 48H |
| X8/44 | Trunk lid closing assist motor electrical connector | 62J |
| Z6/1 | Circuit 31 connector sleeve | 44H |
| Z6/1 | Circuit 31 connector sleeve | 40H |
| Z6/1 | Circuit 31 connector sleeve | 51H |
| Z6/1 | Circuit 31 connector sleeve | 46H |
| Z6/1 | Circuit 31 connector sleeve | 56H |
| Z6/1 | Circuit 31 connector sleeve | 59H |
