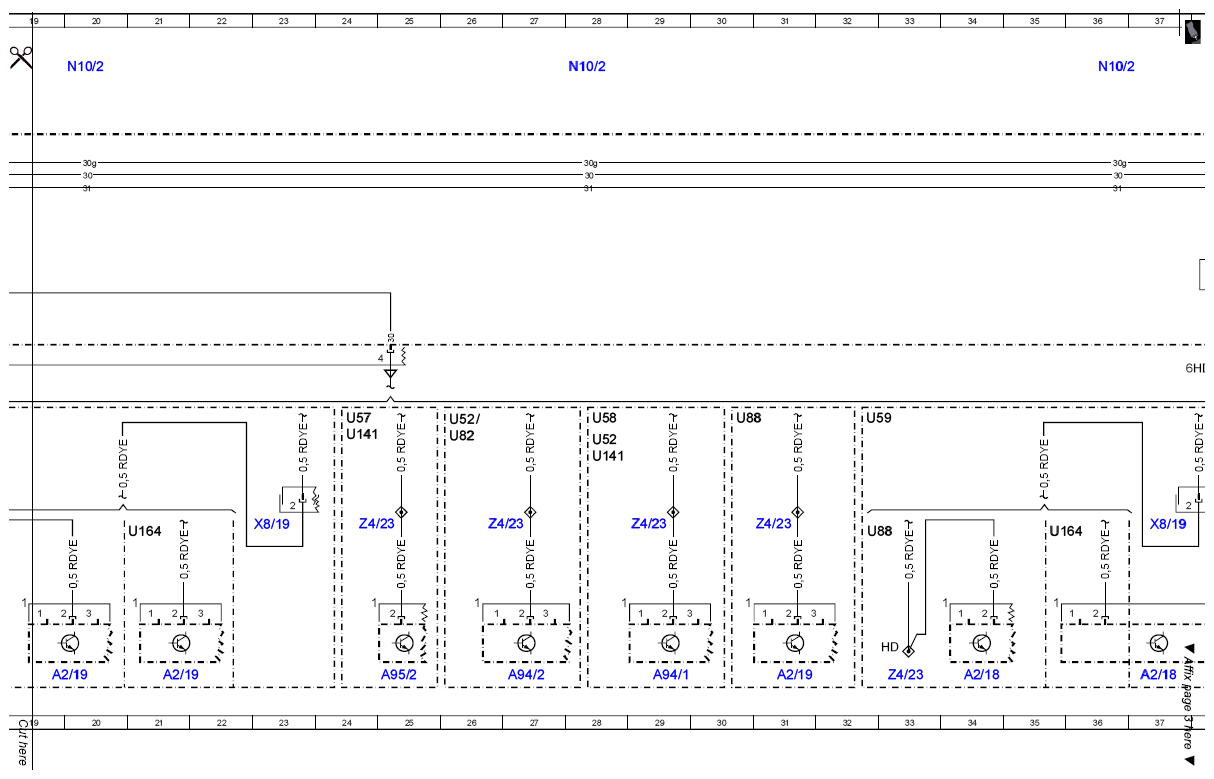

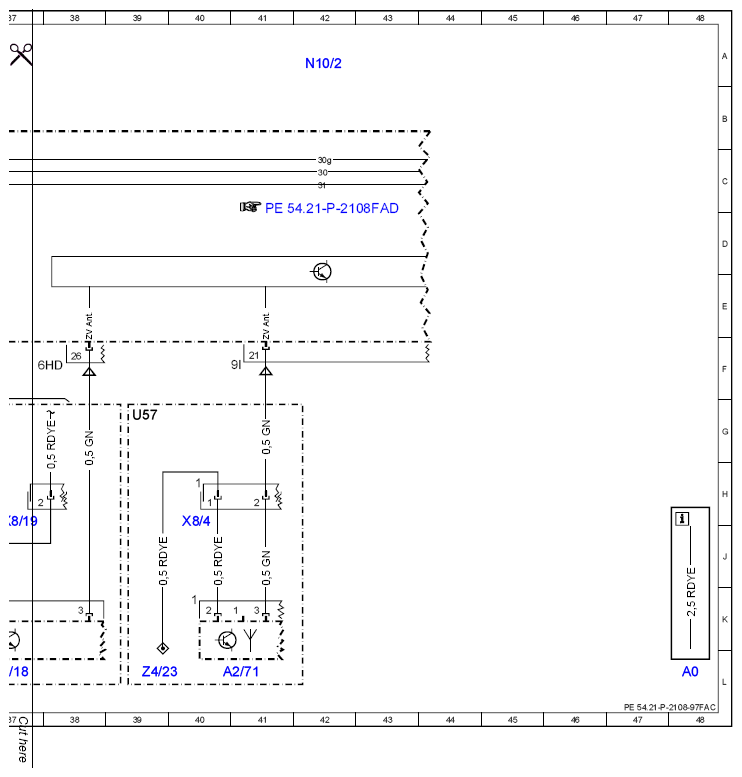

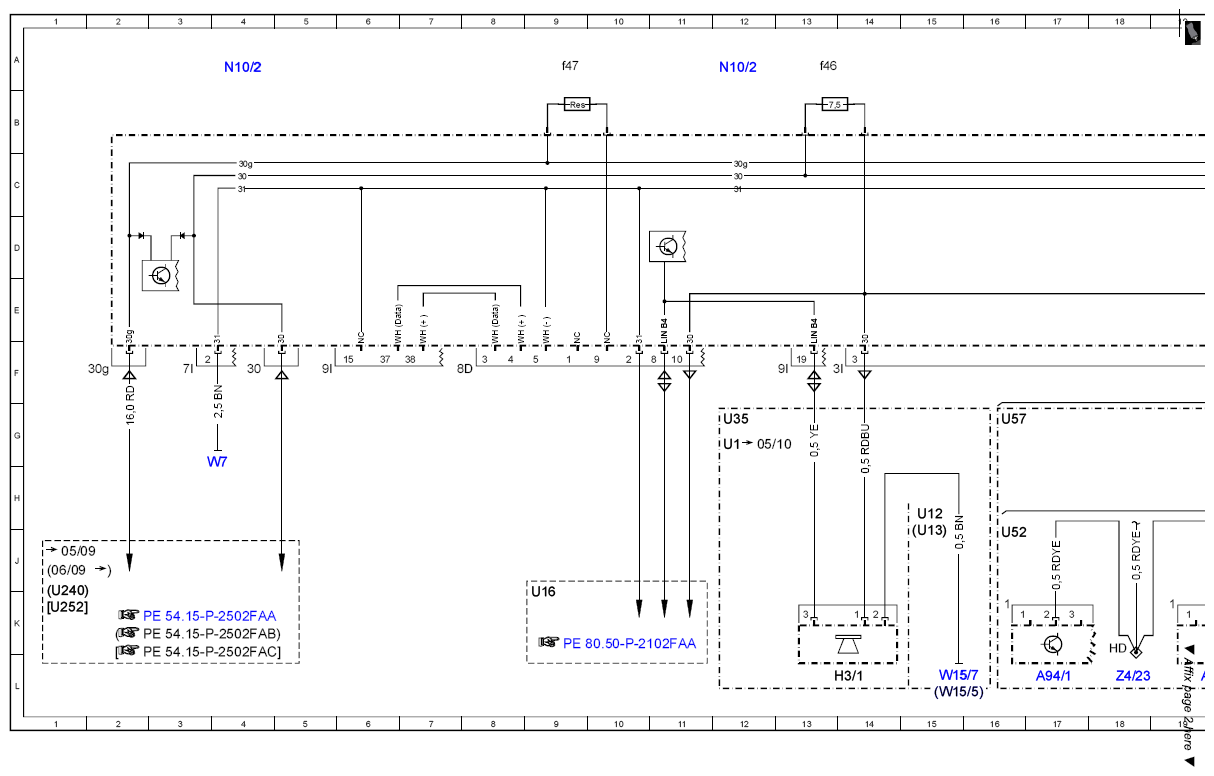

Wiring diagram for rear SAM control unit with fuse and relay module (N10/2) - PE54.21-P-2108-97FAC
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 48L |
| A2/18 | FM, AM and CL [ZV] antenna amplifier | 34L |
| A2/18 | FM, AM and CL [ZV] antenna amplifier | 37L |
| A2/19 | Rear window antenna FM antenna amplifier | 21L |
| A2/19 | Rear window antenna FM antenna amplifier | 19L |
| A2/19 | Rear window antenna FM antenna amplifier | 31L |
| A2/71 | Rear window antenna amplifier 1 | 41L |
| A94/1 | TV 1 and DAB band III antenna | 17L |
| A94/1 | TV 1 and DAB band III antenna | 29L |
| A94/2 | TV 2 and KEYLESS GO antenna amplifier | 27L |
| A95/2 | DAB band III antenna | 25L |
| H3/1 | Alarm siren | 14L |
| LIN B4 | Rear SAM LIN | 11F |
| LIN B4 | Rear SAM LIN | 13F |
| N10/2 | Rear SAM control unit with fuse and relay module | 4A |
| N10/2 | Rear SAM control unit with fuse and relay module | 12A |
| N10/2 | Rear SAM control unit with fuse and relay module | 20A |
| N10/2 | Rear SAM control unit with fuse and relay module | 28A |
| N10/2 | Rear SAM control unit with fuse and relay module | 42A |
| N10/2 | Rear SAM control unit with fuse and relay module | 36A |
| N10/2f46 | Fuse 46 | 13A |
| N10/2f47 | Fuse 47 | 9A |
| U1 | Valid for USA | 12G |
| U12 | Valid for left-hand drive vehicles | 15H |
| U13 | Valid for right-hand drive vehicles | 15J |
| U141 | Valid for Digital Audio Broadcasting | 24G |
| U141 | Valid for Digital Audio Broadcasting | 28G |
| U16 | Valid for ATA [EDW] with tow-away protection and interior protection | 9K |
| U164 | Valid for standard equipment without radio | 21J |
| U164 | Valid for standard equipment without radio | 35J |
| U240 | Valid for all except ECO start/stop function | 1K |
| U252 | Valid for ECO start/stop function | 1K |
| U35 | Valid for anti-theft alarm system | 12G |
| U52 | Valid for Japan | 16J |
| U52 | Valid for Japan | 26G |
| U52 | Valid for Japan | 28G |
| U57 | Valid for model 204.2 | 16G |
| U57 | Valid for model 204.2 | 24G |
| U57 | Valid for model 204.2 | 39G |
| U58 | Valid for model 204.0 | 28G |
| U59 | Valid for model 204.9 | 32G |
| U82 | Valid for KEYLESS GO | 26G |
| U88 | Valid for radio | 32J |
| U88 | Valid for radio | 30G |
| W15/5 | Left front footwell ground point | 15L |
| W15/7 | Right front footwell ground point | 15L |
| W7 | Right wheelhouse trunk ground point | 4H |
| X8/19 | Tailgate electrical connector | 23J |
| X8/19 | Tailgate electrical connector | 37J |
| X8/4 | Tailgate electrical connector | 40J |
| Z4/23 | Antenna circuit 30 connector sleeve | 18L |
| Z4/23 | Antenna circuit 30 connector sleeve | 33L |
| Z4/23 | Antenna circuit 30 connector sleeve | 24J |
| Z4/23 | Antenna circuit 30 connector sleeve | 27J |
| Z4/23 | Antenna circuit 30 connector sleeve | 29J |
| Z4/23 | Antenna circuit 30 connector sleeve | 31J |
| Z4/23 | Antenna circuit 30 connector sleeve | 39L |
