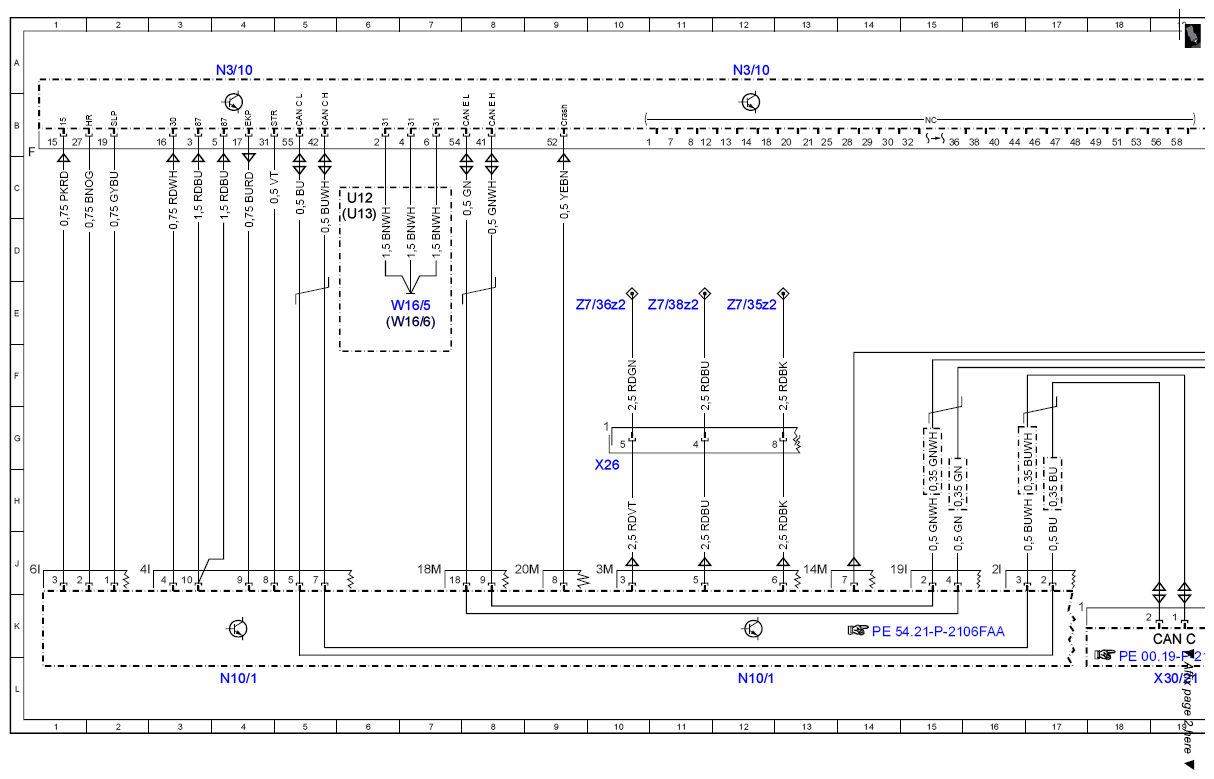

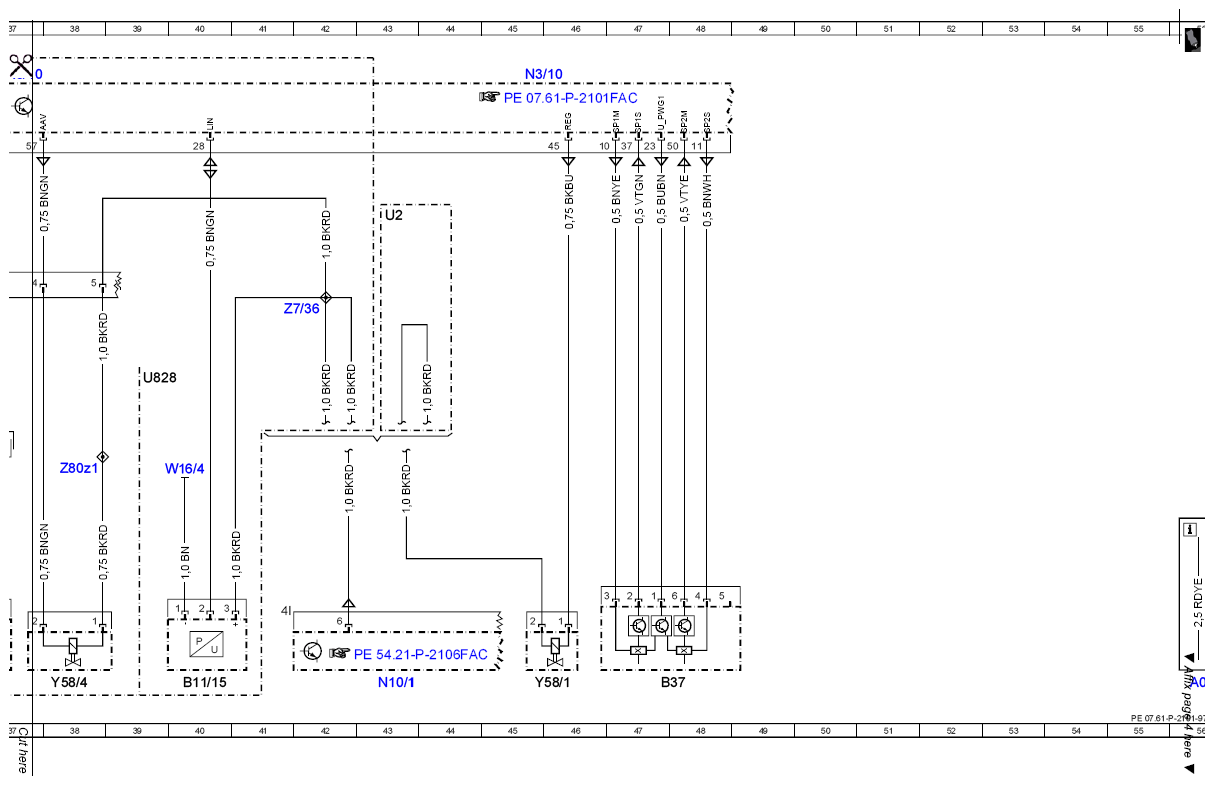

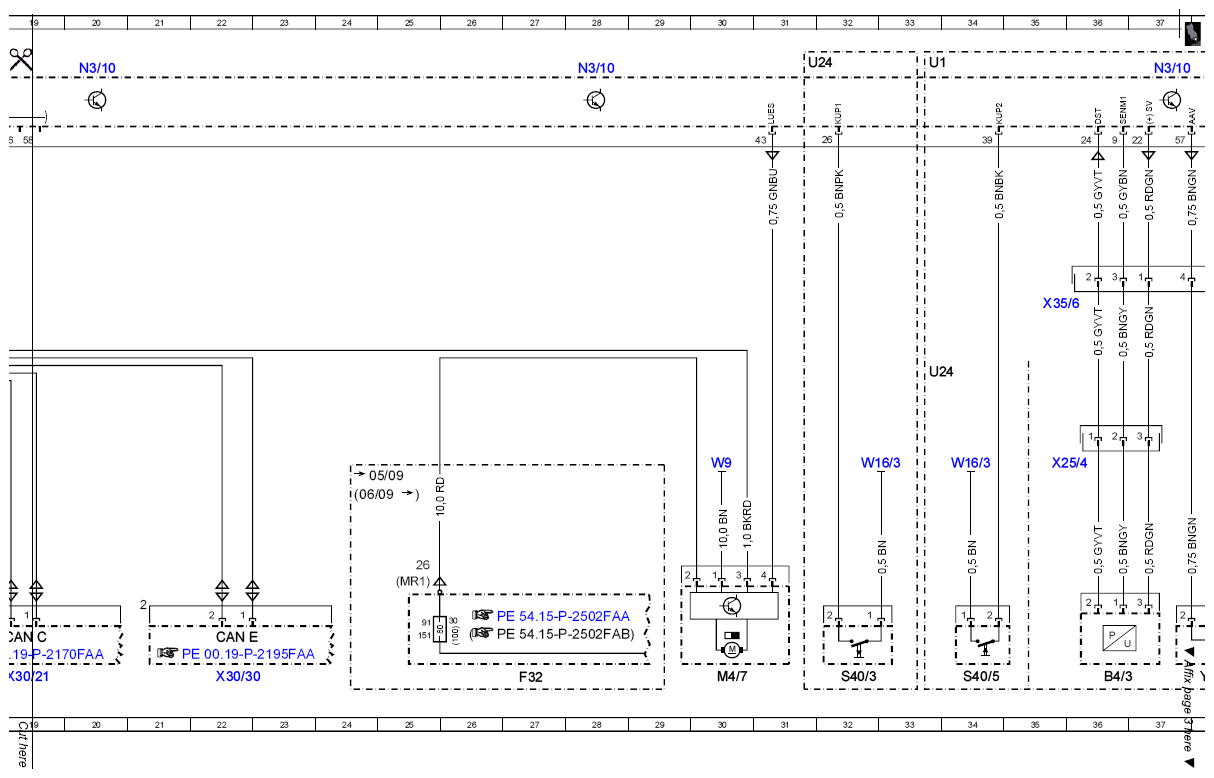

Wiring diagram for ME-SFI [ME] gasoline injection and ignition system control unit - PE07.61-P-2101-97FAD
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|

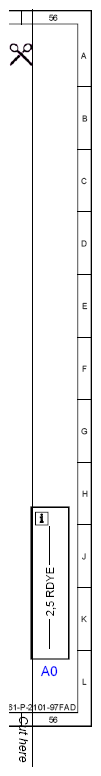

| A0 | Color code key | 56L |
| B11/15 | Radiator sensor for engine diagnosis | 40L |
| B37 | Accelerator pedal sensor | 47L |
| B4/3 | Fuel tank pressure sensor | 36L |
| CAN C | Drive train CAN | 19K |
| CAN E | Chassis CAN | 22K |
| F32 | Front electrical prefuse box | 27L |
| F32f151 | Prefuse 151 | 25K |
| F32f91 | Prefuse 91 | 25K |
| M4/7 | Combustion engine and air conditioning with integrated control fan motor | 30L |
| N10/1 | Front SAM control unit with fuse and relay module | 4L |
| N10/1 | Front SAM control unit with fuse and relay module | 12L |
| N10/1 | Front SAM control unit with fuse and relay module | 43L |
| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 28A |
| N3/10 | ME-SFI [ME] control unit | 37A |
| N3/10 | ME-SFI [ME] control unit | 45A |
| S40/3 | Clutch pedal switch | 32L |
| S40/5 | Start enable clutch pedal switch | 34L |
| U1 | Valid for USA | 33A |
| U12 | Valid for left-hand drive vehicles | 6C |
| U13 | Valid for right-hand drive vehicles | 6C |
| U2 | Valid for all except USA | 43C |
| U24 | Valid for manual transmission | 33F |
| U24 | Valid for manual transmission | 31A |
| U828 | Valid for SULEV | 39F |
| W16/3 | Left major assembly compartment ground point | 34H |
| W16/3 | Left major assembly compartment ground point | 32H |
| W16/4 | Right wheelhouse ground point | 40H |
| W16/5 | Left major assembly compartment electronics ground point | 7E |
| W16/6 | Right major assembly compartment ground point | 7E |
| W9 | Left front ground point (at lamp unit) | 30H |
| X25/4 | Fuel tank electrical connector | 36H |
| X26 | Interior and engine wiring harness electrical connector | 10H |
| X30/21 | Drive train CAN voltage distributor electrical connector | 19L |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 22L |
| X35/6 | Instrument panel and module box electrical connector | 35E |
| Y58/1 | Purge control valve | 45L |
| Y58/4 | Activated charcoal filter shutoff valve | 38L |
| Z7/35z2 | Circuit 87 M1e connector sleeve | 12E |
| Z7/36 | Circuit 87 M2e connector sleeve | 42E |
| Z7/36z2 | Circuit 87 M2e connector sleeve | 10E |
| Z7/38z2 | Circuit 87 M1i connector sleeve | 11E |
| Z80z1 | Cross section reduction connector sleeve | 38G |
