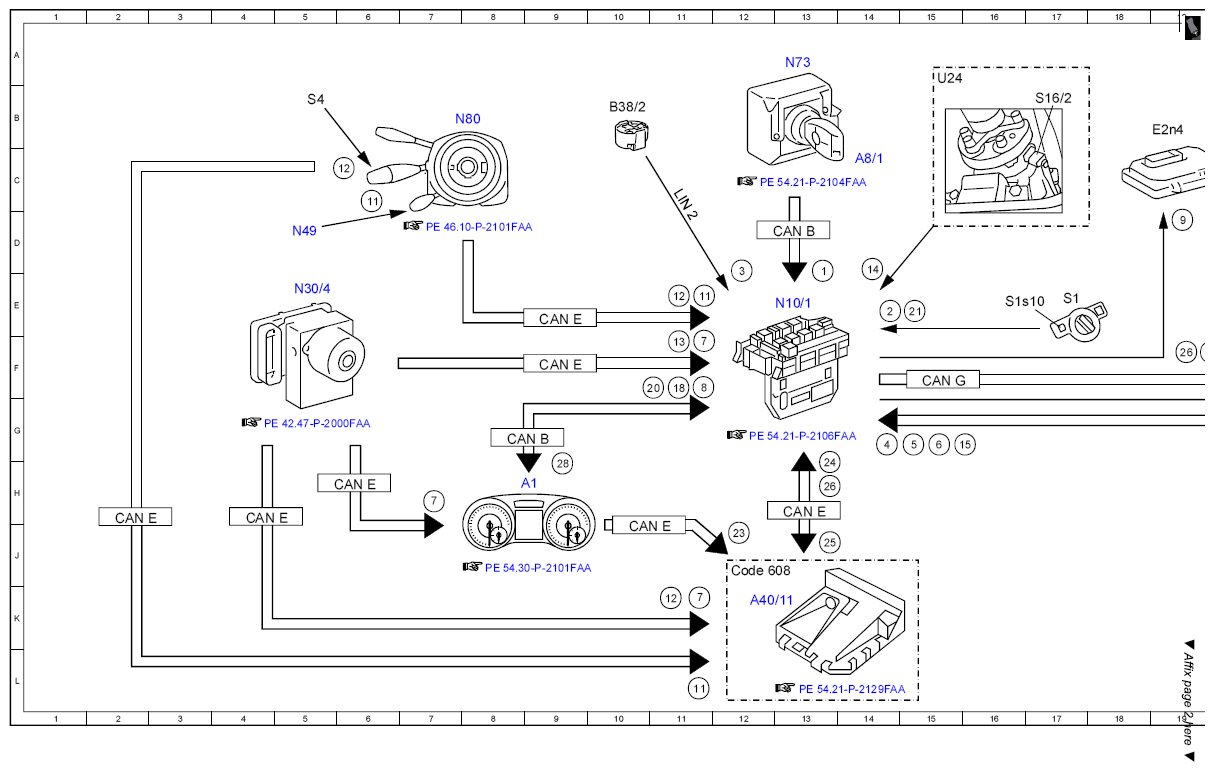

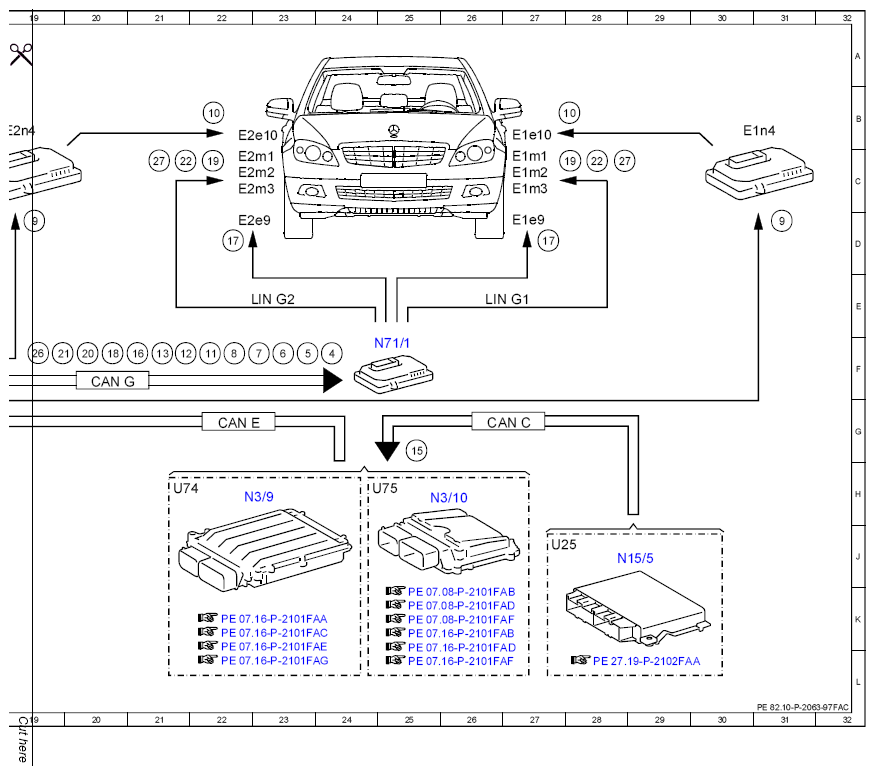

Electrical function schematic, additional functions, driving lights actuation - PE82.10-P-2063-97FAC
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 13E |
| 10 | Xenon bulb with integrated ignition module, actuation | 22B |
| 10 | Xenon bulb with integrated ignition module, actuation | 28B |
| 11 | Steering angle sensor, signal | 11E |
| 11 | Steering angle sensor, signal | 6C |
| 11 | Steering angle sensor, signal | 22F |
| 11 | Steering angle sensor, signal | 11L |
| 12 | Combination switch, status | 6C |
| 12 | Combination switch, status | 11E |
| 12 | Combination switch, status | 21F |
| 12 | Combination switch, status | 11K |
| 13 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 11F |
| 13 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 21F |
| 14 | Backup lamp switch, status | 14D |
| 15 | Selector lever position, status | 25G |
| 15 | Selector lever position, status | 15G |
| 16 | Reverse gear, status | 21F |
| 17 | Cornering illumination, actuation | 27D |
| 17 | Cornering illumination, actuation | 22D |
| 18 | Active curve illumination, request | 11F |
| 18 | Active curve illumination, request | 20F |
| 19 | Active curve illumination actuator motor, actuation | 22C |
| 19 | Active curve illumination actuator motor, actuation | 28C |
| 2 | Exterior lights switch, status | 14E |
| 20 | Intelligent Light System, status | 11F |
| 20 | Intelligent Light System, status | 20F |
| 21 | Rear fog light button, status | 15E |
| 21 | Rear fog light button, status | 19F |
| 22 | Light distribution actuator motor, actuation | 21C |
| 22 | Light distribution actuator motor, actuation | 28C |
| 23 | Automatic high beams, request | 12J |
| 24 | Ambient brightness, signal | 13H |
| 25 | High beams, status | 13J |
| 26 | Automatic high beams, actuation | 19F |
| 26 | Automatic high beams, actuation | 13H |
| 27 | Headlamp range adjustment actuator motor, actuation | 28C |
| 27 | Headlamp range adjustment actuator motor, actuation | 21C |
| 28 | Automatic high beams, status | 9H |
| 3 | Rain/light sensor, status | 12E |
| 4 | Engine speed, signal | 14G |
| 4 | Engine speed, signal | 24F |
| 5 | Circuit 61, status | 15G |
| 5 | Circuit 61, status | 23F |
| 6 | "PT_Rdy", signal | 15G |
| 6 | "PT_Rdy", signal | 23F |
| 7 | Wheel speed, signal | 11F |
| 7 | Wheel speed, signal | 7H |
| 7 | Wheel speed, signal | 23F |
| 7 | Wheel speed, signal | 11K |
| 8 | Vehicle speed, signal | 11F |
| 8 | Vehicle speed, signal | 22F |
| 9 | Low beams, actuation | 19D |
| 9 | Low beams, actuation | 31D |
| A1 | Instrument cluster | 8H |
| A40/11 | Multifunction camera | 12K |
| A8/1 | Transmitter key | 14C |
| B38/2 | Rain/light sensor | 10B |
| CAN B | Interior CAN | 8G |
| CAN B | Interior CAN | 13D |
| CAN C | Drive train CAN | 26G |
| CAN E | Chassis CAN | 9F |
| CAN E | Chassis CAN | 22G |
| CAN E | Chassis CAN | 9E |
| CAN E | Chassis CAN | 6H |
| CAN E | Chassis CAN | 4H |
| CAN E | Chassis CAN | 2H |
| CAN E | Chassis CAN | 13H |
| CAN E | Chassis CAN | 10J |
| CAN G | Front end CAN | 15F |
| CAN G | Front end CAN | 20F |
| Code 608 | Adaptive Highbeam Assist | 12J |
| E1e10 | Left xenon bulb with integrated ignition module | 27B |
| E1e9 | Left cornering illumination | 27D |
| E1m1 | Left headlamp range adjustment actuator motor | 27C |
| E1m2 | Left active curve illumination actuator motor | 27C |
| E1m3 | Left light distribution actuator motor | 27C |
| E1n4 | Left xenon light power supply module | 30B |
| E2e10 | Right xenon bulb with integrated ignition module | 22B |
| E2e9 | Right cornering illumination | 22D |
| E2m1 | Right headlamp range adjustment actuator motor | 22C |
| E2m2 | Right active curve illumination actuator motor | 22C |
| E2m3 | Right light distribution actuator motor | 22C |
| E2n4 | Right xenon light power supply module | 19B |
| LIN 2 | Wiper/inside rearview mirror LIN | 11C |
| LIN G1 | Left headlamp LIN | 26E |
| LIN G2 | Right headlamp LIN | 23E |
| N10/1 | Front SAM control unit with fuse and relay module | 13E |
| N15/5 | Electronic selector lever module control unit | 28J |
| N3/10 | ME-SFI [ME] control unit | 25H |
| N3/9 | CDI control unit | 22H |
| N30/4 | Electronic Stability Program control unit | 5E |
| N49 | Steering angle sensor | 5D |
| N71/1 | Headlamp control unit | 25F |
| N73 | Electronic ignition switch control unit | 13A |
| N80 | Steering column module control unit | 7B |
| S1 | Exterior lights switch | 17E |
| S16/2 | Backup lamp switch | 17B |
| S1s10 | Rear fog light button | 16E |
| S4 | Combination switch | 5B |
| U24 | Valid for manual transmission | 15A |
| U25 | Valid for automatic transmission | 27J |
| U74 | Valid for diesel engines | 21H |
| U75 | Valid for gasoline engines | 24H |
