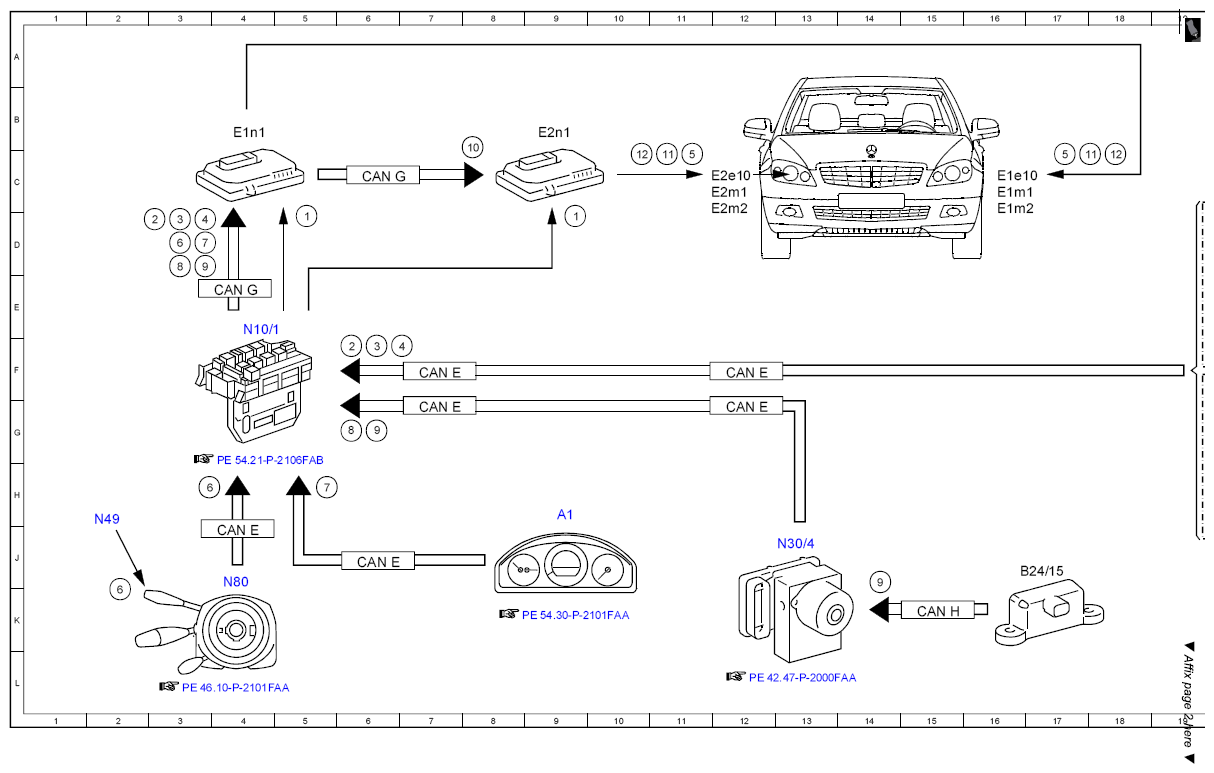

Electrical function schematic, additional functions, driving lights actuation - PE82.10-P-2063-97FAA
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Low beams, request | 5D |
| 1 | Low beams, request | 9D |
| 10 | Synchronization, signal | 8C |
| 11 | Headlamp range adjustment actuator motor, actuation | 11C |
| 11 | Headlamp range adjustment actuator motor, actuation | 17C |
| 12 | Active curve illumination actuator motor, actuation | 10C |
| 12 | Active curve illumination actuator motor, actuation | 18C |
| 2 | Engine speed, signal | 3D |
| 2 | Engine speed, signal | 6F |
| 3 | Circuit 61, status | 3D |
| 3 | Circuit 61, status | 6F |
| 4 | "PT_Rdy", signal | 3D |
| 4 | "PT_Rdy", signal | 7F |
| 5 | Xenon bulb with integrated ignition module, actuation | 11C |
| 5 | Xenon bulb with integrated ignition module, actuation | 17C |
| 6 | Steering angle, signal | 3H |
| 6 | Steering angle, signal | 2K |
| 6 | Steering angle, signal | 3D |
| 7 | Intelligent Light System, status | 5H |
| 7 | Intelligent Light System, status | 3D |
| 8 | Wheel speed, signal | 6G |
| 8 | Wheel speed, signal | 3D |
| 9 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 6G |
| 9 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 14J |
| 9 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 3D |
| A1 | Instrument cluster | 9H |
| B24/15 | Yaw rate, lateral and longitudinal acceleration sensor | 16J |
| CAN E | Chassis CAN | 7F |
| CAN E | Chassis CAN | 12F |
| CAN E | Chassis CAN | 6J |
| CAN E | Chassis CAN | 4J |
| CAN E | Chassis CAN | 7G |
| CAN E | Chassis CAN | 12G |
| CAN G | Front end CAN | 6C |
| CAN G | Front end CAN | 4E |
| CAN H | Vehicle dynamics CAN | 15K |
| E1e10 | Left xenon bulb with integrated ignition module | 16C |
| E1m1 | Left headlamp range adjustment actuator motor | 16C |
| E1m2 | Left active curve illumination actuator motor | 16D |
| E1n1 | Left xenon lamp control unit | 4B |
| E2e10 | Right xenon bulb with integrated ignition module | 11C |
| E2m1 | Right headlamp range adjustment actuator motor | 11C |
| E2m2 | Right active curve illumination actuator motor | 11D |
| E2n1 | Right xenon light control unit | 9B |
| N10/1 | Front SAM control unit with fuse and relay module | 4E |
| N3/10 | ME-SFI [ME] control unit | 21F |
| N3/9 | CDI control unit | 21D |
| N30/4 | Electronic Stability Program control unit | 13J |
| N49 | Steering angle sensor | 2H |
| N80 | Steering column module control unit | 4J |

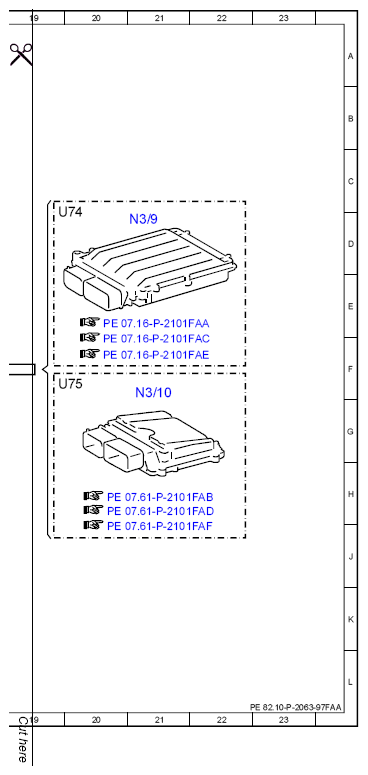

| U74 | Valid for diesel engines | 19D |
| U75 | Valid for gasoline engines | 19F |
