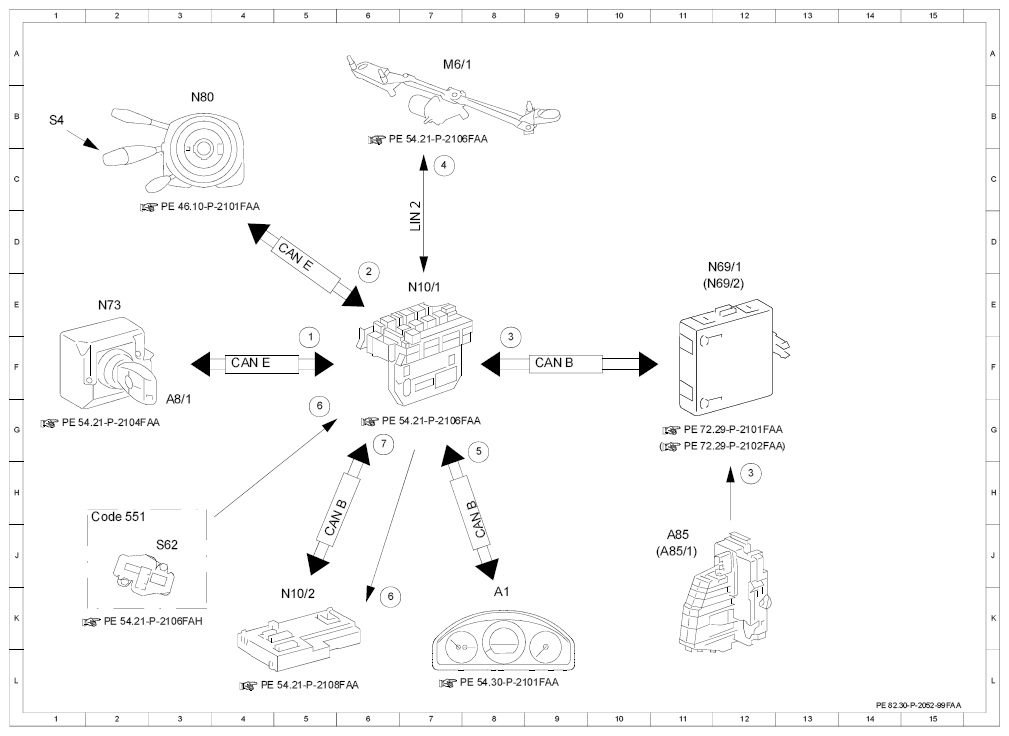

Electrical function schematic for wiper startup suppression - PE82.30-P-2052-99FAA
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 5 F |
| 2 | Combination switch, status | 6 E |
| 3 | Door rotary tumbler switch, status | 8 F |
| 3 | Door rotary tumbler switch, status | 12 H |
| 4 | Wiper motor, actuation | 7 C |
| 5 | Vehicle speed, signal | 8 G |
| 6 | Engine hood anti-theft alarm system switch, signal | 5 G |
| 6 | Engine hood anti-theft alarm system switch, signal | 6 K |
| 7 | Engine hood anti-theft alarm system switch, status | 6 G |
| A1 | Instrument cluster | 8 K |
| A8/1 | Transmitter key | 3 G |
| A85 | Left front door lock | 11 J |
| A85/1 | Right front door lock | 11 J |
| CAN B | Interior CAN | 5 J |
| CAN B | Interior CAN | 8 J |
| CAN B | Interior CAN | 9 F |
| CAN E | Chassis CAN | 4 F |
| CAN E | Chassis CAN | 5 D |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 2 J |
| LIN 2 | Wiper/inside rearview mirror LIN | 7 D |
| M6/1 | Wiper motor | 7 A |
| N10/1 | Front SAM control unit with fuse and relay module | 7 E |
| N10/2 | Rear SAM control unit with fuse and relay module | 5 K |
| N69/1 | Left front door control unit | 11 E |
| N69/2 | Right front door control unit | 11 E |
| N73 | Electronic ignition switch control unit | 2 E |
| N80 | Steering column module control unit | 3 B |
| S4 | Combination switch | 1 B |
| S62 | Engine hood anti-theft alarm system switch | 3 J |
