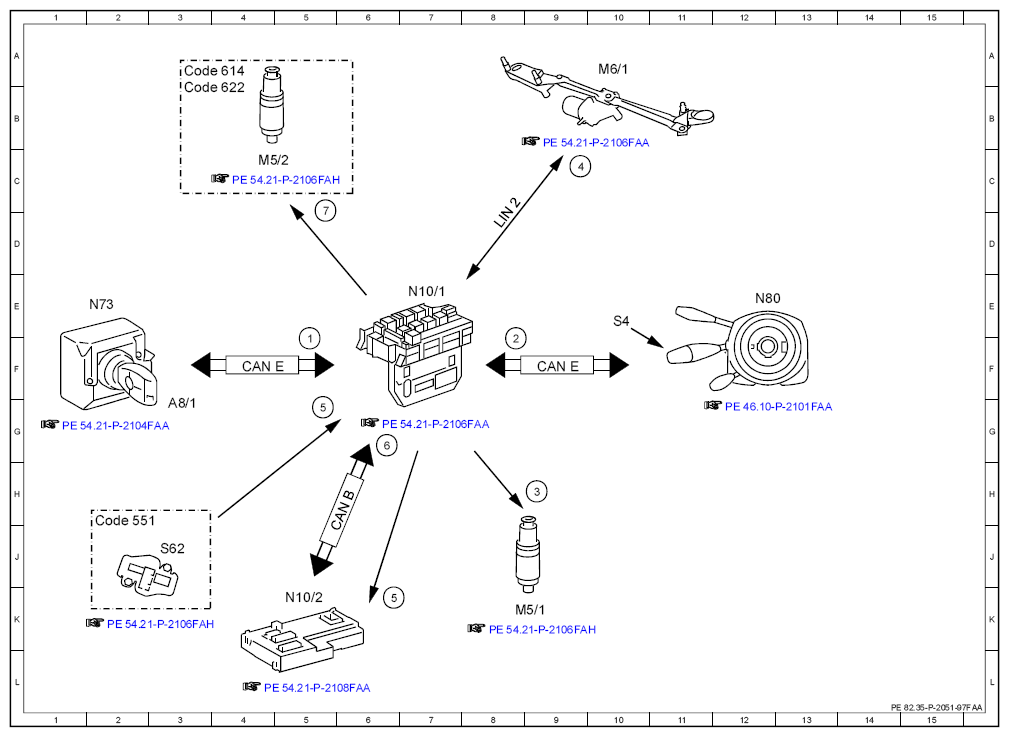

Electrical function schematic for windshield washer - PE82.35-P-2051-97FAA
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | |
| 2 | Combination switch, status | |
| 3 | Windshield washer system pump, actuation | |
| 4 | Wiper motor, actuation | |
| 5 | Engine hood anti-theft alarm system switch, signal | |
| 5 | Engine hood anti-theft alarm system switch, signal | |
| 6 | Engine hood anti-theft alarm system switch, status | |
| 7 | Headlamp cleaning system pump, actuation | |
| A8/1 | Transmitter key | 3G |
| CAN B | Interior CAN | |
| CAN E | Chassis CAN | |
| CAN E | Chassis CAN | |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | |
| Code 614 | Bi-xenon headlamp unit | |
| Code 622 | Intelligent Light System (right-hand traffic) | |
| LIN 2 | Wiper/inside rearview mirror LIN | |
| M5/1 | Windshield washer system pump | 8K |
| M5/2 | Headlamp cleaning system pump | 4C |
| M6/1 | Wiper motor | 10A |
| N10/1 | Front SAM control unit with fuse and relay module | 7E |
| N10/2 | Rear SAM control unit with fuse and relay module | 5K |
| N73 | Electronic ignition switch control unit | 2E |
| N80 | Steering column module control unit | 12E |
| S4 | Combination switch | 10E |
| S62 | Engine hood anti-theft alarm system switch | 3J |
