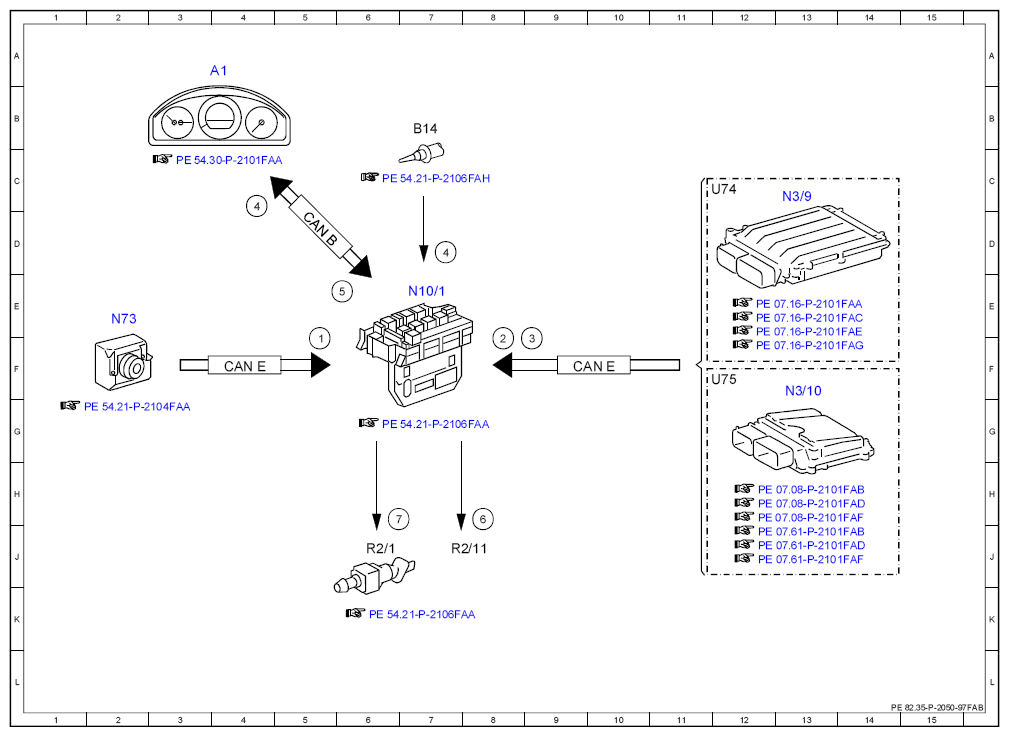

Electrical function schematic for washer nozzle heater - PE82.35-P-2050-97FAB
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | |
| 2 | Circuit 61, status | |
| 3 | "PT_Rdy", signal | |
| 4 | Outside temperature, signal | |
| 4 | Outside temperature, signal | |
| 5 | Displayed outside temperature, signal | |
| 6 | Spray nozzle heater, actuation | |
| 7 | Spray nozzle hose heater, actuation | |
| A1 | Instrument cluster | 3A |
| B14 | Outside temperature sensor | 7B |
| CAN B | Interior CAN | 5D |
| CAN E | Chassis CAN | 4F |
| CAN E | Chassis CAN | 9F |
| N10/1 | Front SAM control unit with fuse and relay module | 7E |
| N3/10 | ME-SFI [ME] control unit | 13F |
| N3/9 | CDI control unit | 13C |
| N73 | Electronic ignition switch control unit | 2E |
| R2/1 | Spray nozzle heater | 6J |
| R2/11 | Spray nozzle hose heater | 7J |
| U74 | Valid for diesel engines | 11C |
| U75 | Valid for gasoline engines | 11F |
