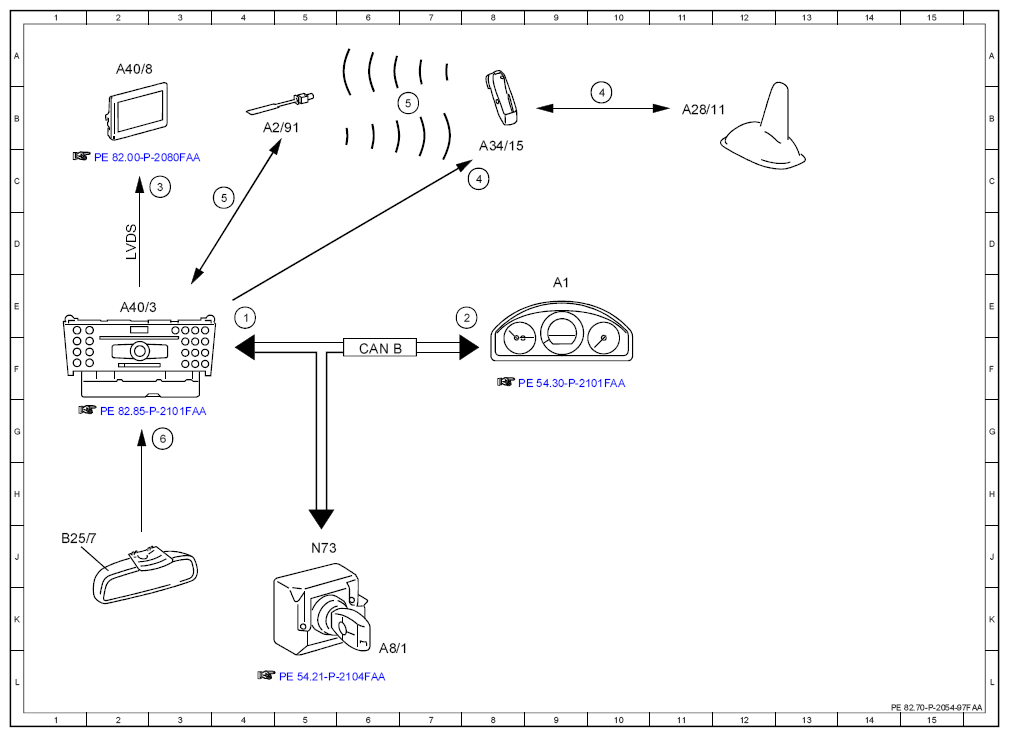

Electrical function schematic for mobile phone, switch on and switch off characteristics - PE82.70-P-2054-97FAA
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 4E |
| 2 | Instrument cluster, message | 8E |
| 3 | Audio/COMAND display, message | 3C |
| 4 | Telephone, signal | 8C |
| 4 | Telephone, signal | 10B |
| 5 | Bluetooth, signal | 4C |
| 5 | Bluetooth, signal | 7B |
| 6 | Voice input, signal | 3G |
| A1 | Instrument cluster | 9E |
| A2/91 | Bluetooth antenna | 4B |
| A28/11 | Multifunction antenna | 11B |
| A34/15 | Mobile phone holder | 8C |
| A40/3 | COMAND control unit | 2E |
| A40/8 | Audio/COMAND display | 2A |
| A8/1 | Transmitter key | 6L |
| B25/7 | Voice control system microphone | 1J |
| CAN B | Interior CAN | |
| N73 | Electronic ignition switch control unit | 5J |
