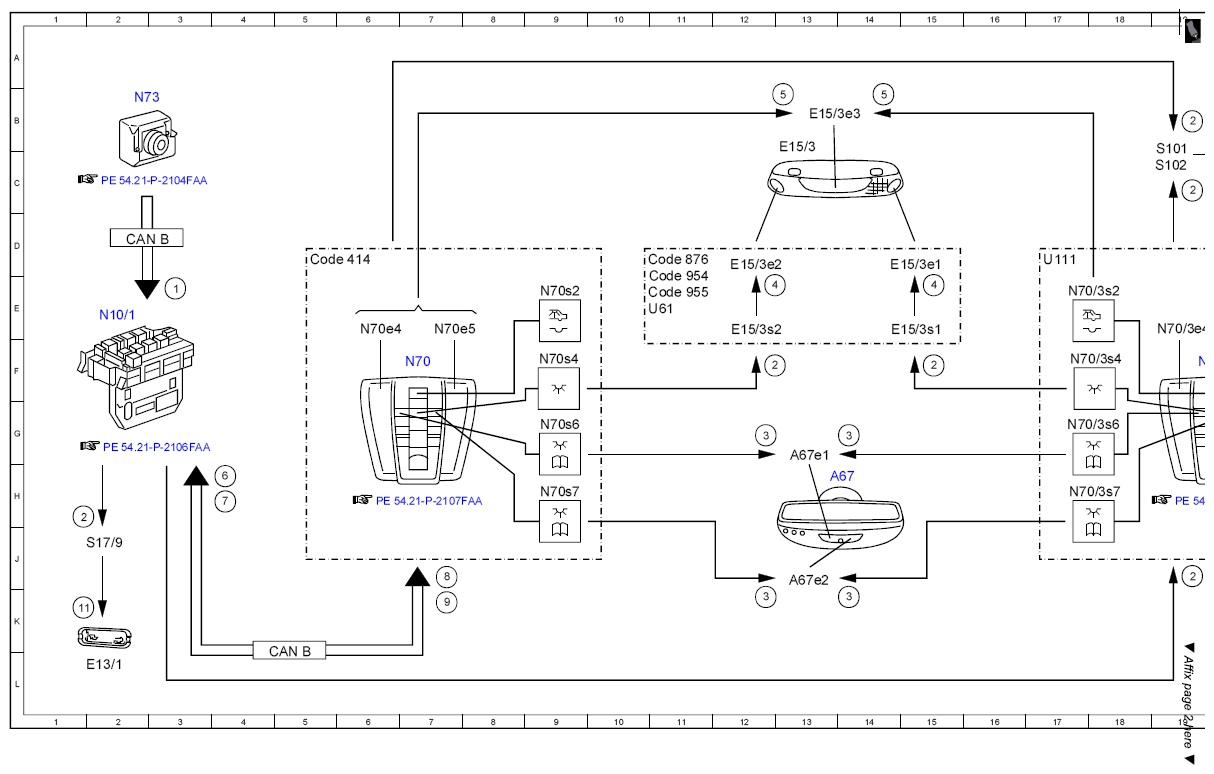

Electrical function schematic for manual interior lights control - PE82.20-P-2056-97FAA
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 3E |
| 10 | Sun visor mirror lamp, actuation | 20B |
| 11 | Glove compartment lamp, actuation | 1K |
| 2 | Power supply, status ON | 12F |
| 2 | Power supply, status ON | 15F |
| 2 | Power supply, status ON | 19C |
| 2 | Power supply, status ON | 19B |
| 2 | Power supply, status ON | 19J |
| 2 | Power supply, status ON | 1H |
| 3 | Front reading lamp, actuation | 12G |
| 3 | Front reading lamp, actuation | 14G |
| 3 | Front reading lamp, actuation | 12K |
| 3 | Front reading lamp, actuation | 14K |
| 4 | Rear reading lamp, actuation | 15E |
| 4 | Rear reading lamp, actuation | 12E |
| 5 | Rear interior lamp, actuation | 14B |
| 5 | Rear interior lamp, actuation | 13B |
| 6 | Dome lamp switch, status | 4H |
| 7 | Reading lamp switch, status | 4H |
| 8 | Front reading lamp, actuation | 7J |
| 9 | Rear interior lamp, actuation | 7K |
| A67 | Inside rearview mirror | 13H |
| A67e1 | Left reading lamp | 13G |
| A67e2 | Right reading lamp | 13J |
| CAN B | Interior CAN | 5L |
| CAN B | Interior CAN | 2D |
| Code 414 | Electric glass tilting/sliding roof | 5D |
| Code 876 | Interior lights package | 10D |
| Code 954 | AVANTGARDE | 10E |
| Code 955 | ELEGANCE | 10E |
| E13/1 | Glove box lamp | 1L |
| E14/1 | Left sun visor mirror lamp | 21C |
| E14/2 | Right sun visor mirror lamp | 21C |
| E15/3 | Rear dome lamp | 13B |
| E15/3e1 | Left rear reading lamp | 15D |
| E15/3e2 | Right rear reading lamp | 12D |
| E15/3e3 | Rear interior lamp | 13B |
| E15/3s1 | Left rear reading lamp switch | 15E |
| E15/3s2 | Right rear reading lamp switch | 12E |
| N10/1 | Front SAM control unit with fuse and relay module | 2E |
| N70 | Overhead control panel control unit | 7F |
| N70/3 | Overhead control panel electronics | 19F |
| N70/3e4 | Left front interior lamp | 19E |
| N70/3e5 | Right front interior lamp | 20E |
| N70/3s2 | Rear dome lamp switch | 17E |
| N70/3s4 | Front dome lamp switch | 17F |
| N70/3s6 | Left front reading lamp switch | 17G |
| N70/3s7 | Right front reading lamp switch | 17H |
| N70e4 | Left front interior lamp | 6E |
| N70e5 | Right front interior lamp | 7E |
| N70s2 | Rear dome lamp switch | 9E |
| N70s4 | Front dome lamp switch | 9F |
| N70s6 | Left front reading lamp switch | 9G |
| N70s7 | Right front reading lamp switch | 9H |
| N73 | Electronic ignition switch control unit | 2B |
| S101 | Left front mirror lamp switch | 19C |
| S102 | Right front mirror lamp switch | 19C |
| S17/9 | Glove box lamp switch | 1J |
| U111 | Valid for overhead control panel without CAN | 17D |
| U61 | Not valid for model 204.3 | 10E |
