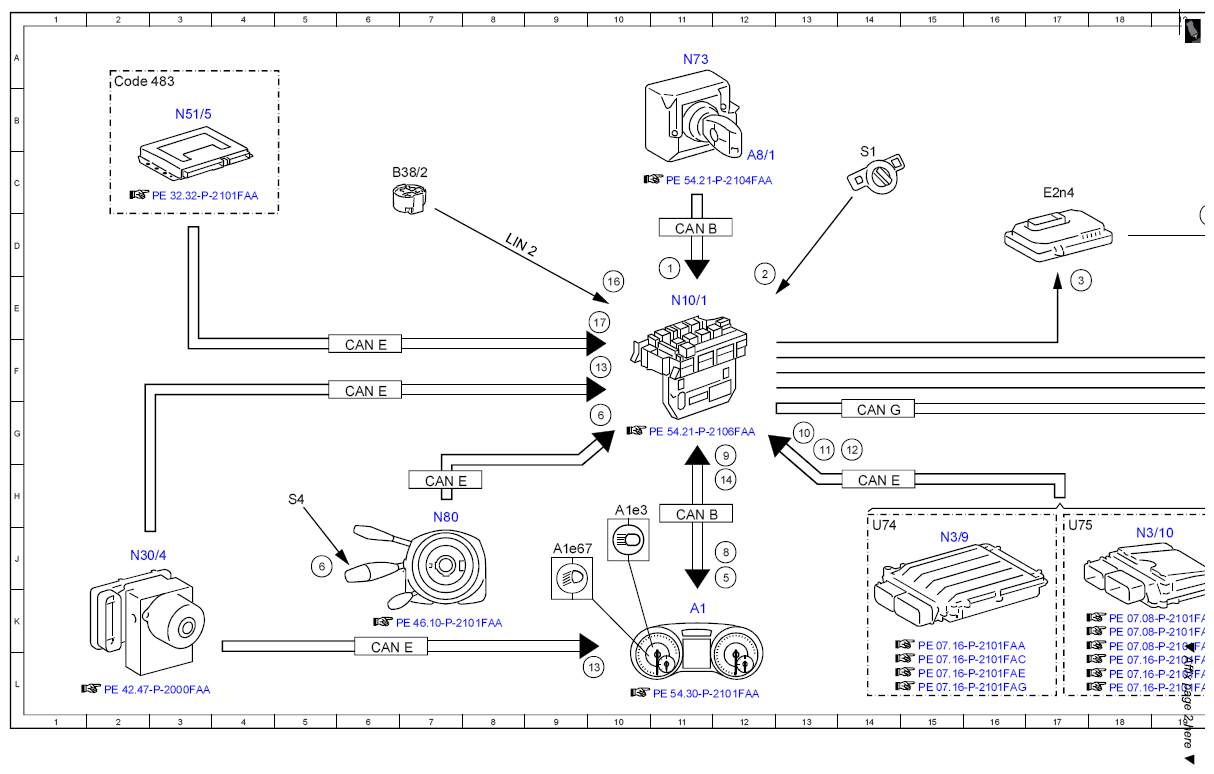

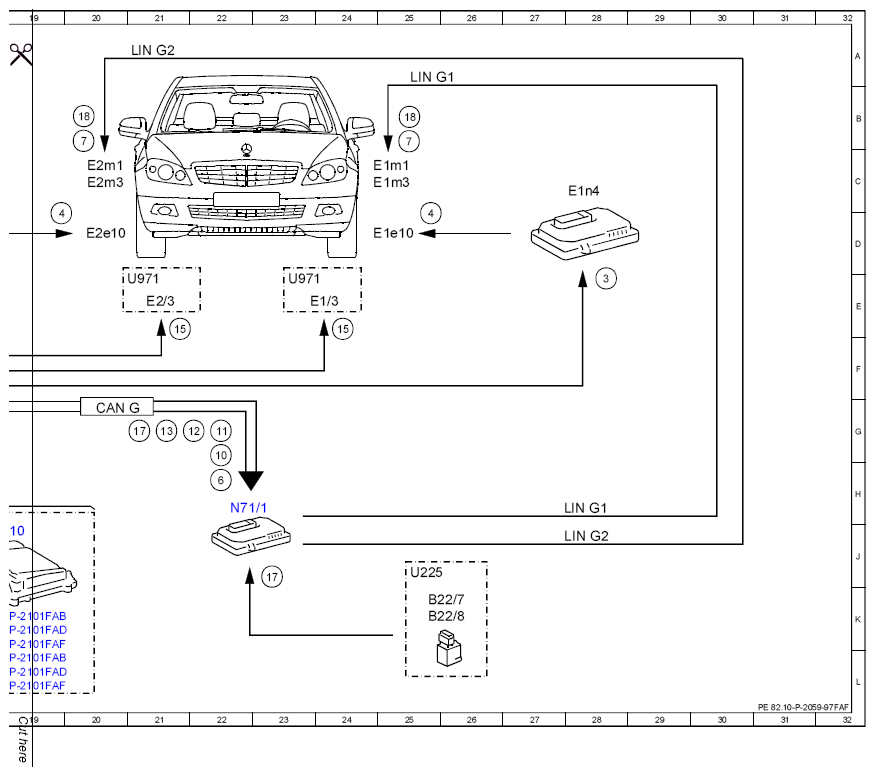

Electrical function schematic for driving light actuation - PE82.10-P-2059-97FAF
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 11D |
| 10 | Engine speed, signal | 13G |
| 10 | Engine speed, signal | 22G |
| 11 | Circuit 61, status | 13G |
| 11 | Circuit 61, status | 22G |
| 12 | "PT_Rdy", signal | 14G |
| 12 | "PT_Rdy", signal | 22G |
| 13 | Wheel speed, signal | 10F |
| 13 | Wheel speed, signal | 10L |
| 13 | Wheel speed, signal | 21G |
| 14 | Vehicle speed, signal | 12H |
| 15 | Daytime running lights, actuation | 21E |
| 15 | Daytime running lights, actuation | 24E |
| 16 | Rain/light sensor, status | 10E |
| 17 | Level sensor, signal | 10E |
| 17 | Level sensor, signal | 23J |
| 17 | Level sensor, signal | 21G |
| 18 | Headlamp range adjustment actuator motor, actuation | 25B |
| 18 | Headlamp range adjustment actuator motor, actuation | 20B |
| 2 | Exterior lights switch, status | |
| 3 | Low beams, actuation | 17E |
| 3 | Low beams, actuation | 28E |
| 4 | Xenon bulb with integrated ignition module, actuation | 19D |
| 4 | Xenon bulb with integrated ignition module, actuation | 25D |
| 5 | Low beams indicator lamp, actuation | 12J |
| 6 | Combination switch, status | 5J |
| 6 | Combination switch, status | 10G |
| 6 | Combination switch, status | 22H |
| 7 | Light distribution actuator motor, actuation | 20B |
| 7 | Light distribution actuator motor, actuation | 25B |
| 8 | High beam indicator lamp, actuation | 12J |
| 9 | Daytime running lights, request | 12G |
| A1 | Instrument cluster | 11K |
| A1e3 | High beam indicator lamp | 10H |
| A1e67 | Low beam indicator lamp | 9J |
| A8/1 | Transmitter key | 12C |
| B22/7 | Left rear level sensor | 26K |
| B22/8 | Left front level sensor | 26K |
| B38/2 | Rain/light sensor | 7C |
| CAN B | Interior CAN | 11H |
| CAN B | Interior CAN | 11D |
| CAN E | Chassis CAN | 6F |
| CAN E | Chassis CAN | 7H |
| CAN E | Chassis CAN | 14H |
| CAN E | Chassis CAN | 6F |
| CAN E | Chassis CAN | 6L |
| CAN G | Front end CAN | 14G |
| CAN G | Front end CAN | 20G |
| Code 483 | Vehicle dynamics package | 2A |
| E1/3 | Left daytime running lamps headlamp | 23E |
| E1e10 | Left xenon bulb with integrated ignition module | 24D |
| E1m1 | Left headlamp range adjustment actuator motor | 24C |
| E1m3 | Left light distribution actuator motor | 24C |
| E1n4 | Left xenon light power supply module | 28C |
| E2/3 | Right daytime running lamps headlamp | 21E |
| E2e10 | Right xenon bulb with integrated ignition module | 20D |
| E2m1 | Right headlamp range adjustment actuator motor | 20C |
| E2m3 | Right light distribution actuator motor | 20C |
| E2n4 | Right xenon light power supply module | 17C |
| LIN 2 | Wiper/inside rearview mirror LIN | 8D |
| LIN G1 | Left headlamp LIN | 28H |
| LIN G1 | Left headlamp LIN | 25A |
| LIN G2 | Right headlamp LIN | 28J |
| LIN G2 | Right headlamp LIN | 21A |
| N10/1 | Front SAM control unit with fuse and relay module | 11E |
| N3/10 | ME-SFI [ME] control unit | 18J |
| N3/9 | CDI control unit | 15J |
| N30/4 | Electronic Stability Program control unit | 2J |
| N51/5 | Adaptive damping system control unit | 3B |
| N71/1 | Headlamp control unit | 22H |
| N73 | Electronic ignition switch control unit | 11A |
| N80 | Steering column module control unit | 7H |
| S1 | Exterior lights switch | 14C |
| S4 | Combination switch | 5H |
| U225 | Valid without code 483 Vehicle dynamics package | 25J |
| U74 | Valid for diesel engines | 14J |
| U75 | Valid for gasoline engines | 17J |
| U971 | Valid for daytime running lamps | 20E |
| U971 | Valid for daytime running lamps | 23E |
