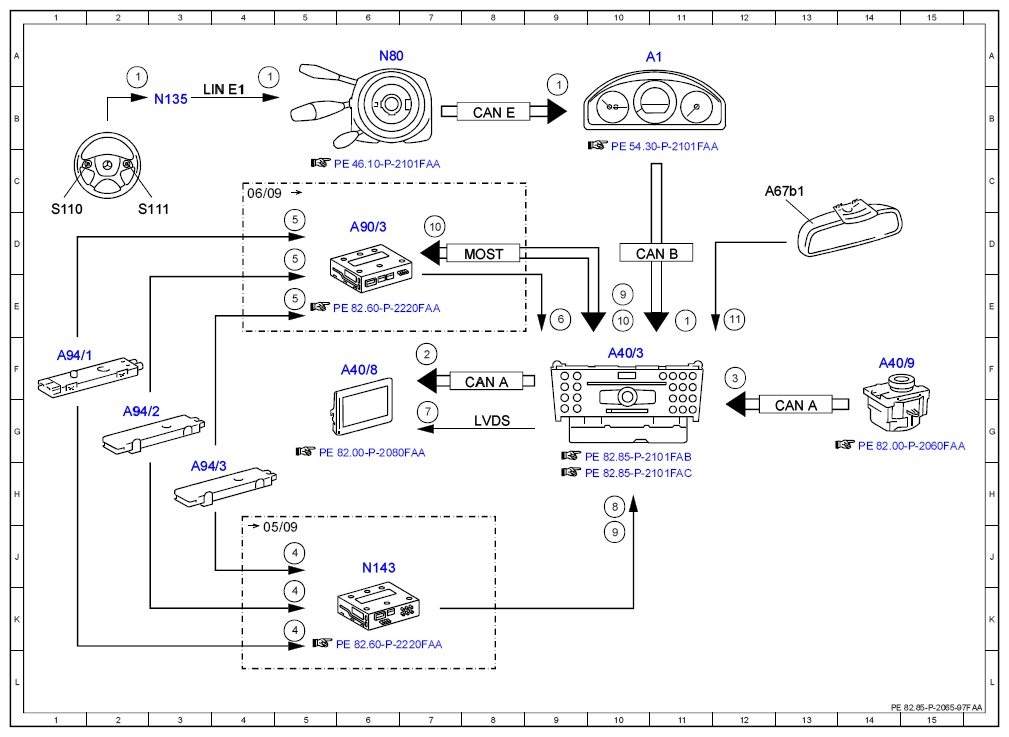

Electrical function diagram for TV mode, function - PE82.85-P-2065-97FAA
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Multifunction steering wheel button group, signal | 9B |
| 1 | Multifunction steering wheel button group, signal | 11E |
| 1 | Multifunction steering wheel button group, signal | 4A |
| 1 | Multifunction steering wheel button group, signal | 2A |
| 10 | Control data communication | 10E |
| 10 | Control data communication | 7D |
| 11 | Voice input, signal | 12E |
| 2 | Switch-on request, signal | 7F |
| 3 | Audio/COMAND controller, request | 12F |
| 4 | TV antennas, signal | 5J |
| 4 | TV antennas, signal | 5K |
| 5 | TV reception (digital) signal | |
| 5 | TV reception (digital) signal | |
| 6 | Transfer of video data (Y/C line) signal | 9E |
| 7 | Transfer of video data (low voltage differential signaling line) signal | 7G |
| 8 | TV, signal | 10H |
| 9 | Audio, signal | 10J |
| 9 | Audio, signal | 10E |
| A1 | Instrument cluster | 10A |
| A40/3 | COMAND control unit | 10F |
| A40/8 | Audio/COMAND display | 6F |
| A40/9 | Audio/COMAND control panel | 14F |
| A67b1 | Hands-free system microphone | 12C |
| A90/3 | TV digital tuner | 6D |
| A94/1 | TV 1 and DAB band III antenna | 1F |
| A94/2 | TV 2 and KEYLESS GO antenna amplifier | 2G |
| A94/3 | TV 3 antenna amplifier | 3H |
| CAN A | Telematics CAN | 8F |
| CAN A | Telematics CAN | 13G |
| CAN B | Interior CAN | 10D |
| CAN E | Chassis CAN | 8B |
| LIN E1 | Steering LIN | 4B |
| LVDS | Low voltage differential signal | 8G |
| MOST | Media Oriented System Transport | 8D |
| N135 | Steering wheel electronics | 3B |
| N143 | TV tuner control unit | 6J |
| N80 | Steering column module control unit | 6A |
| S110 | Left multifunction steering wheel button group | 1D |
| S111 | Right multifunction steering wheel button group | 2D |
