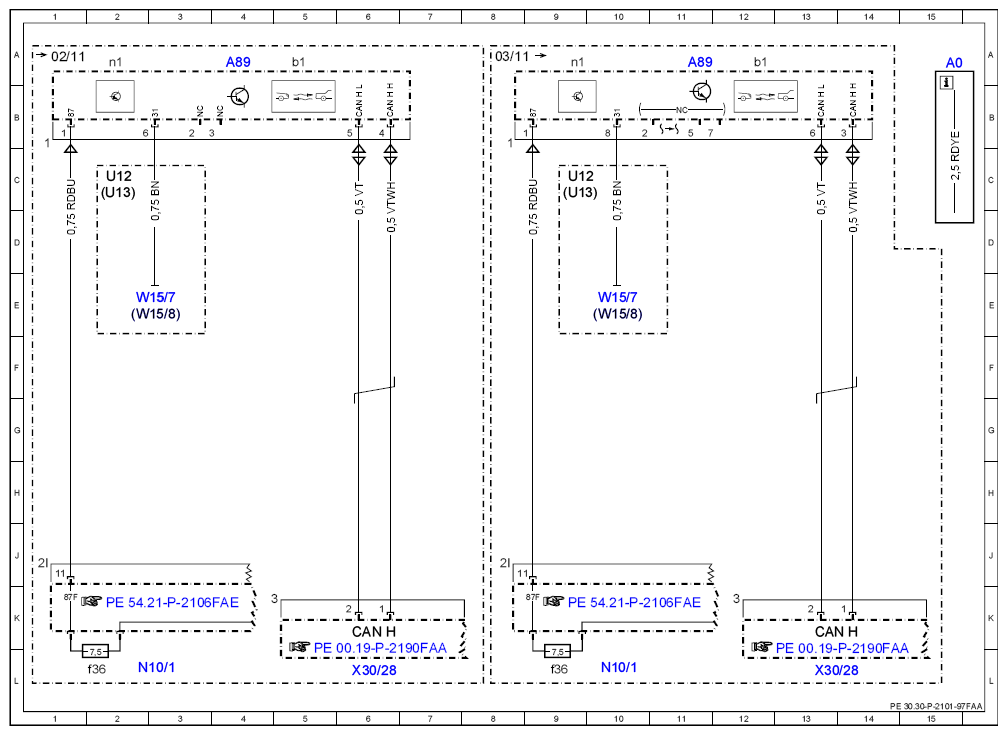

Wiring diagram for Distronic (DTR) control unit - PE30.30-P-2101-97FAA

WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
