Parktronic system (PTS) block diagram - GF54.65-P-0001-01Q

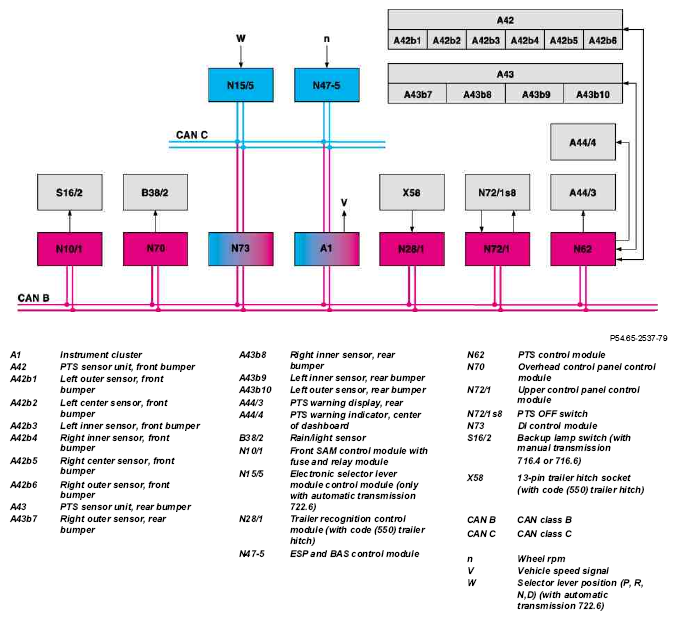

Fig 1: Parktronic System (PTS) Block Diagram

G04960277
